Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

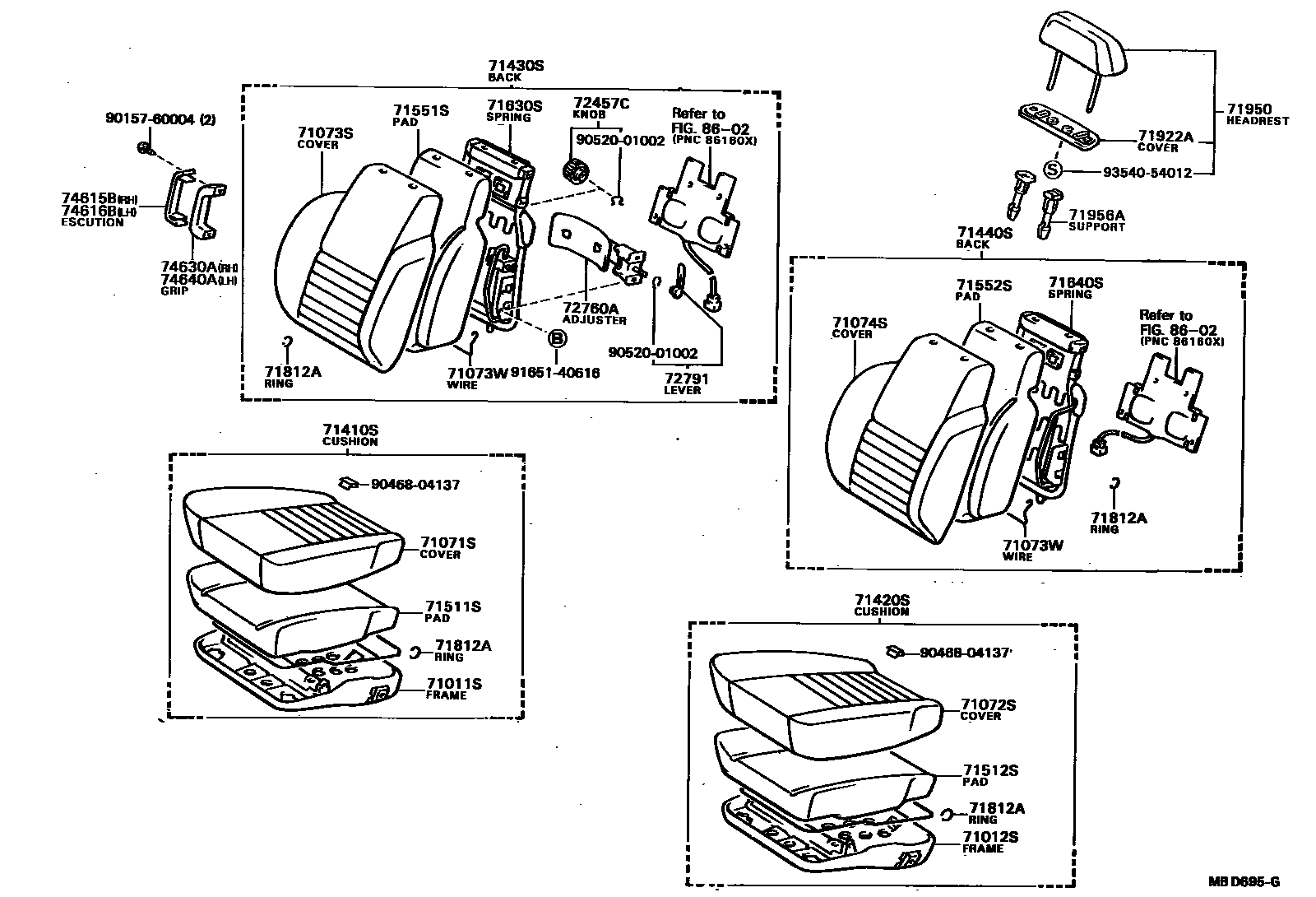

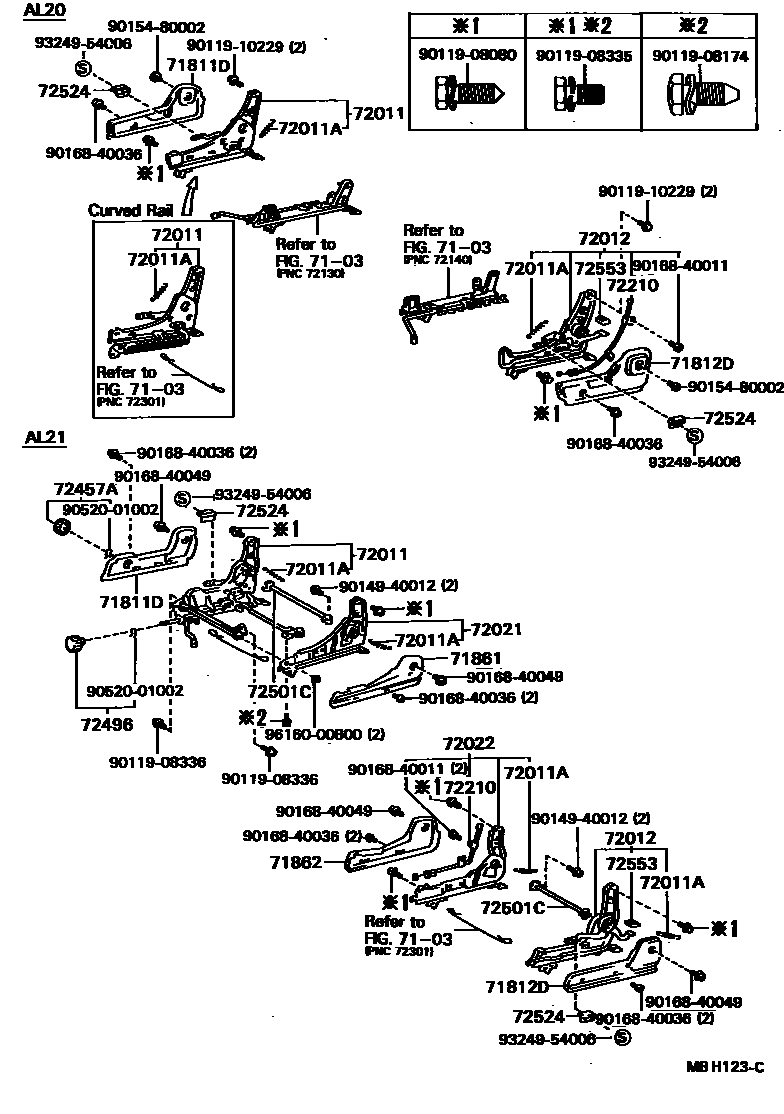

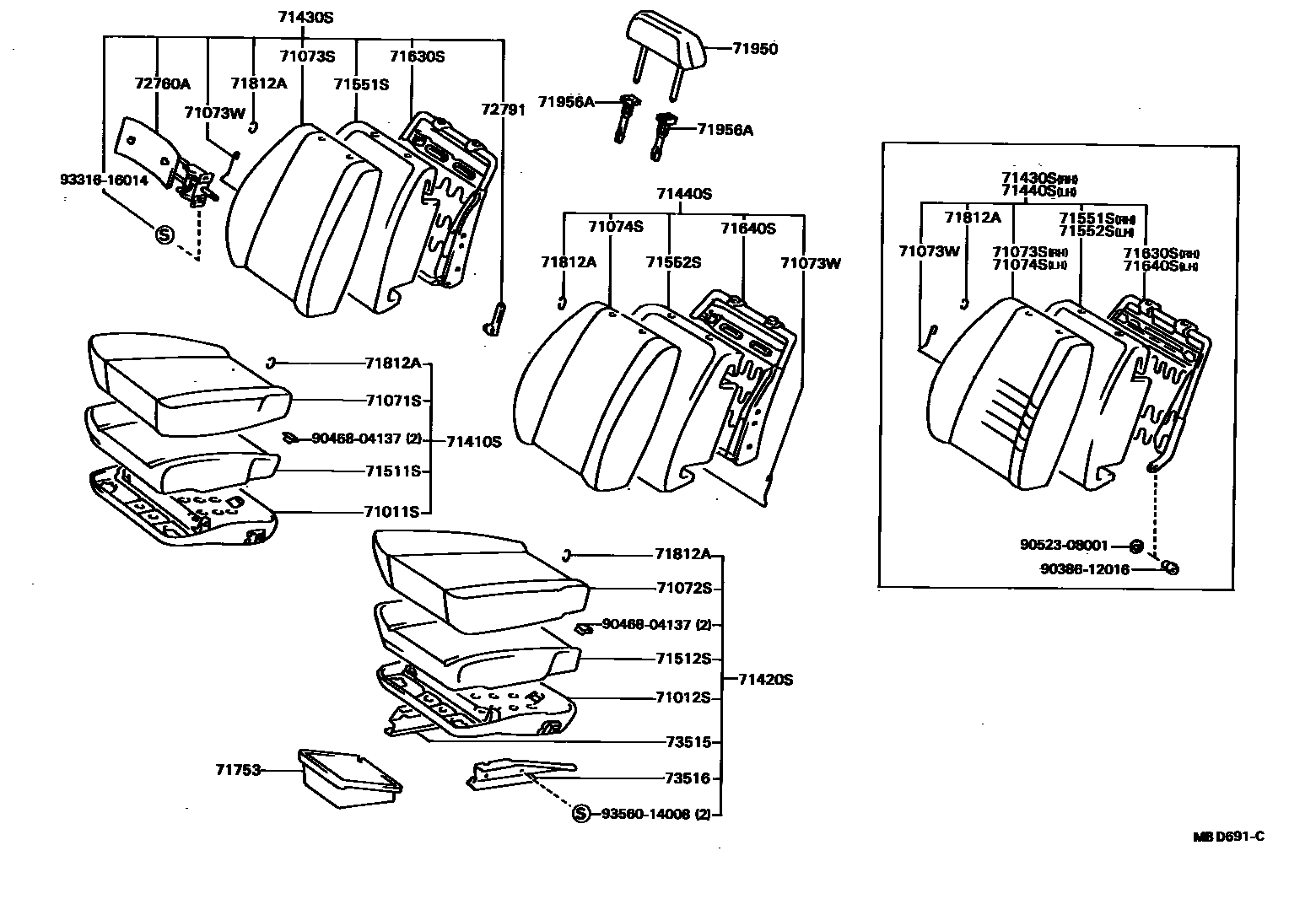

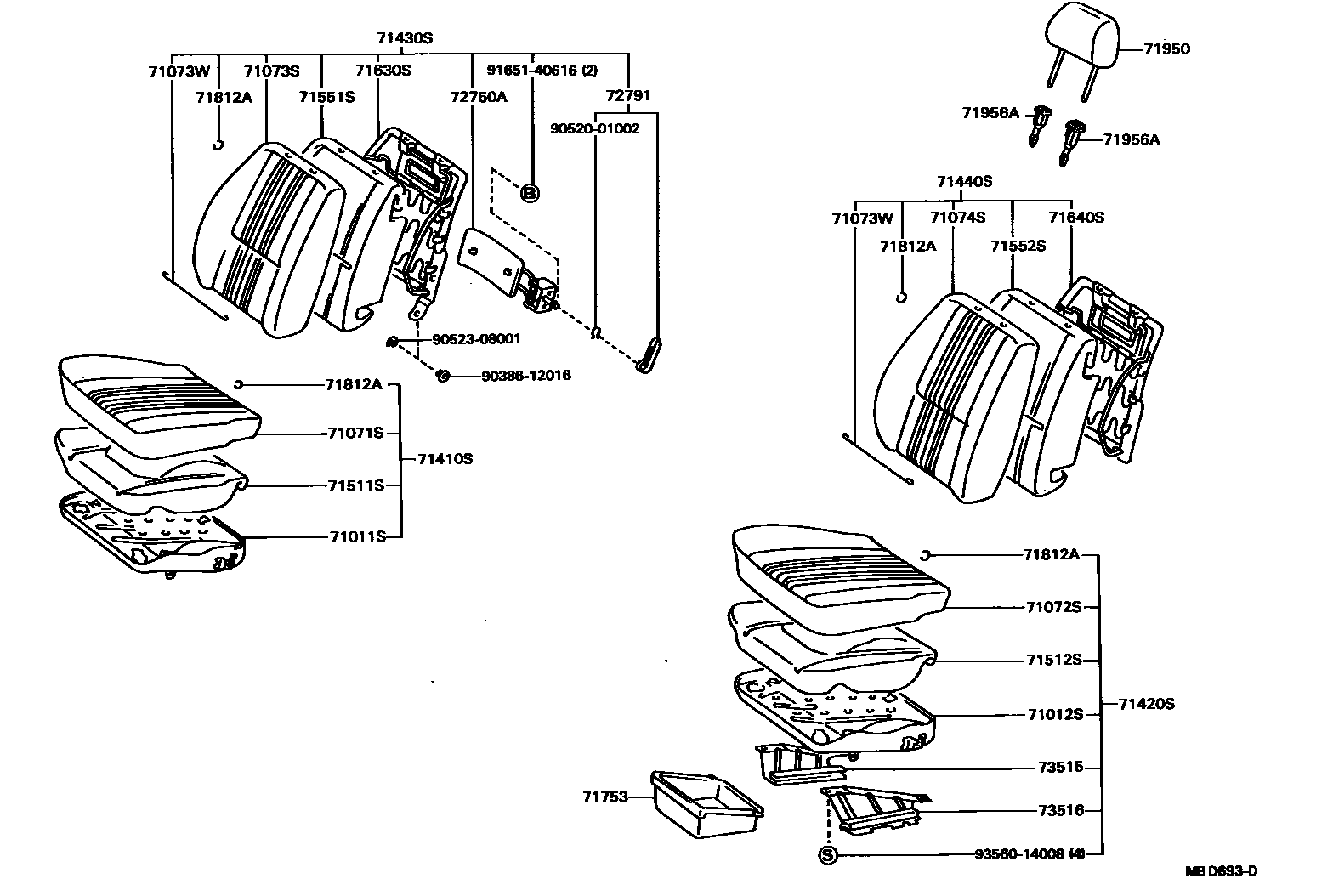

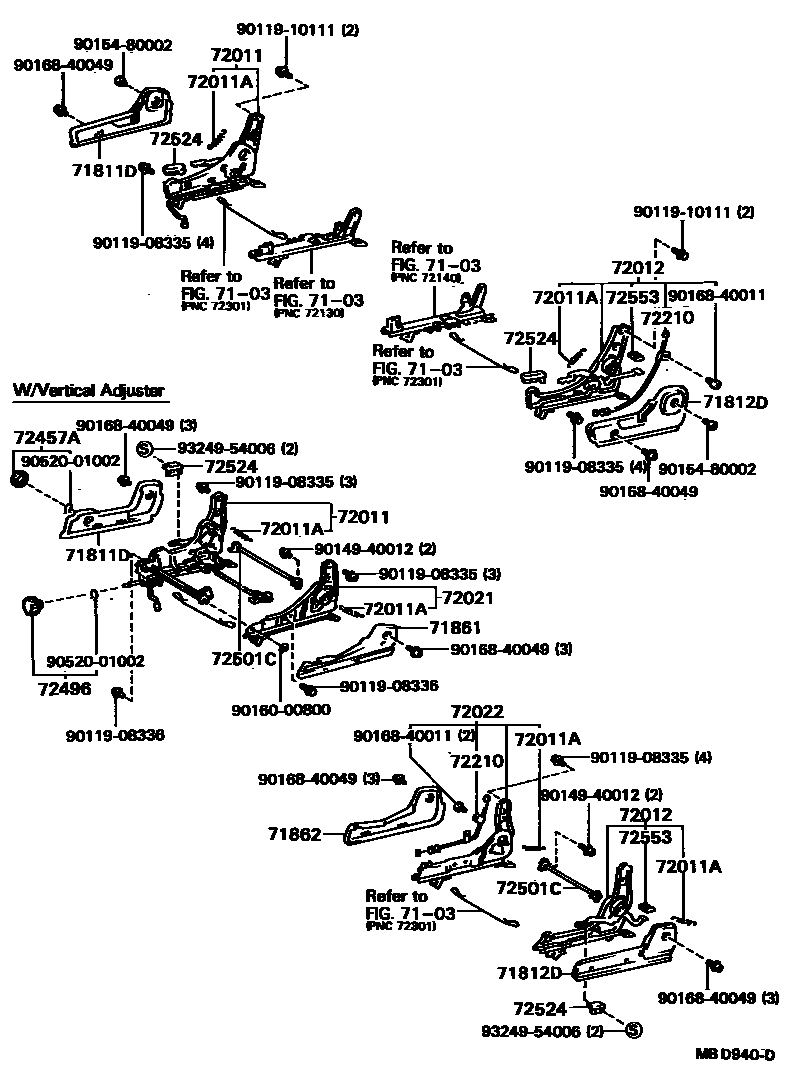

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-16010 · 71011-16020 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-16010 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-16451 · 71071-16480 · 71071-16490 |
| 71072S | Front left seat cushion cover (for split seats) | 71071-16451 · 71071-16480 · 71071-16490 |
| 71073S | Front right seat back cover (for split seats) | 71073-16281 · 71073-16560 · 71073-16570 |
| 71073W | Front seat back cover wire | 90580-16029 · 90580-16060 |
| 71074S | Front left seat back cover (for split seats) | 71074-16221 · 71074-16400 · 71074-16410 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-16461 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-16461 |
| 71430S | Front right seat back assembly (for split seats) | 71430-16291 |
| 71440S | Front left seat back assembly (for split seats) | 71440-16351 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-16040 · 71511-16070 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-16040 · 71511-16070 |
| 71551S | Front right seat back cushion (for split seats) | 71551-16050 · 71551-16100 · 71551-16110 · 71551-16120 · 71551-16130 |
| 71552S | Front left seat back cushion (for split seats) | 71551-16050 · 71551-16100 · 71551-16110 · 71551-16120 · 71551-16130 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-10051 · 71630-12310 · 71630-16050 · 71630-16060 · 71630-16080 · 71630-16110 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-16060 · 71640-10051 · 71640-12270 · 71640-16020 · 71640-16050 |
| 71753 | Front seat bottom bracket | 71753-16010 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71950 | Front seat headrest assembly | 71910-16140 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-16080 · 72010-16120 · 72010-16130 · 72011-16020 · 72011-16070 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 · 90506-18015 · 90506-20046 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-16010 · 72012-16020 · 72012-16060 · 72012-16070 · 72020-16080 · 72020-16090 · 72020-16120 · 72020-16130 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-16010 · 72021-16050 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-16010 · 72022-16020 · 72022-16060 · 72022-16070 |
| 72210 | Seat slide rail control cable assembly | 72210-16040 · 72210-16060 · 72210-16090 · 72210-16100 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-16010 |
| 72553 | Seat back tilt pedal cover | 72553-12020 |
| 72760A | Lumbar support adjuster assembly | 72750-16020 · 72750-16030 |
| 73515 | Front seat No. 1 bottom bracket guide rail | 73508-16010 · 73516-16010 |
| 73516 | Front seat No. 2 bottom bracket guide rail | 73507-16010 · 73515-16010 |
