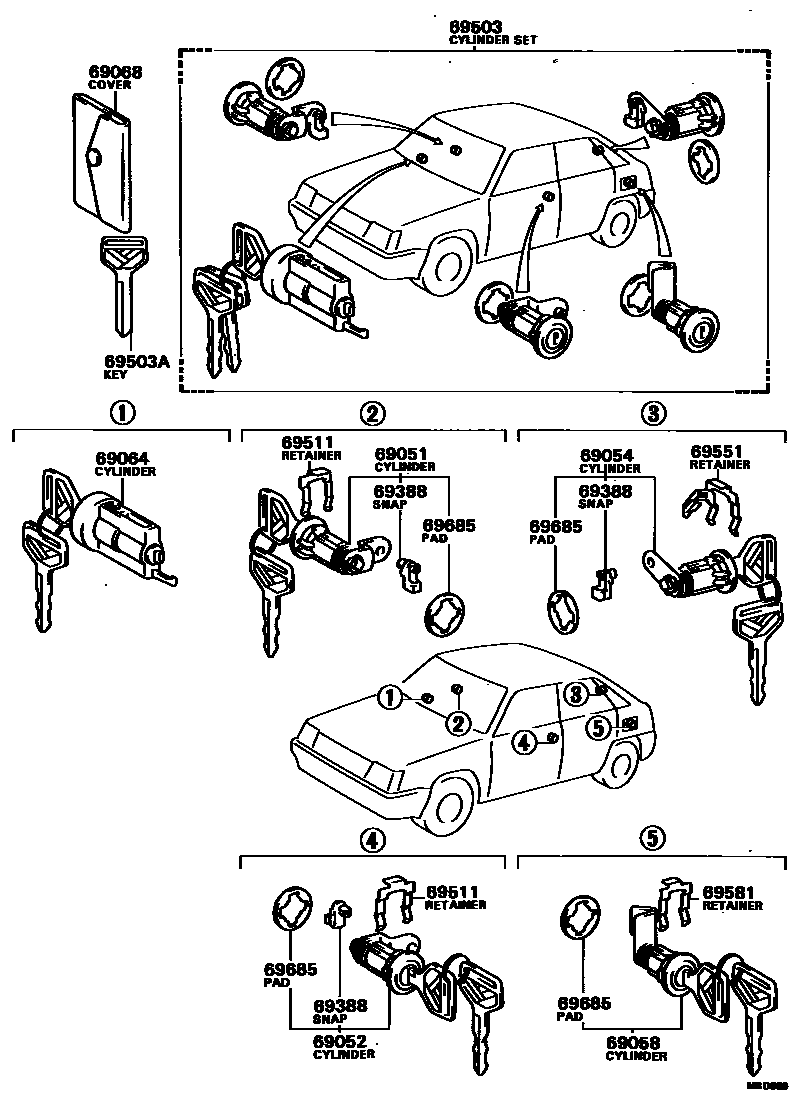

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-16030 |
| 69052 | Left door lock cylinder and key assembly | 69052-16030 |
| 69054 | Rear door lock cylinder and key assembly | 69055-16070 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-16030 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-16040 |
| 69068 | Key cover sub-assembly | 69555-17010 · 69555-20010 |
| 69388 | Lever clip (for door lock) | 69759-24080 · 69759-24090 |
| 69503 | Door lock cylinder components | 69005-16100 |
| 69503A | external tooth key | 90999-00085 |
| 69511 | Front door lock cylinder fixing parts | 69511-32010 |
| 69551 | Rear door lock cylinder fixing parts | 69501-16010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69685 | Lock cylinder liner | 69513-32010 · 69563-32010 |
