Toyota COROLLA 背门板和背门玻璃 — Figure 6708

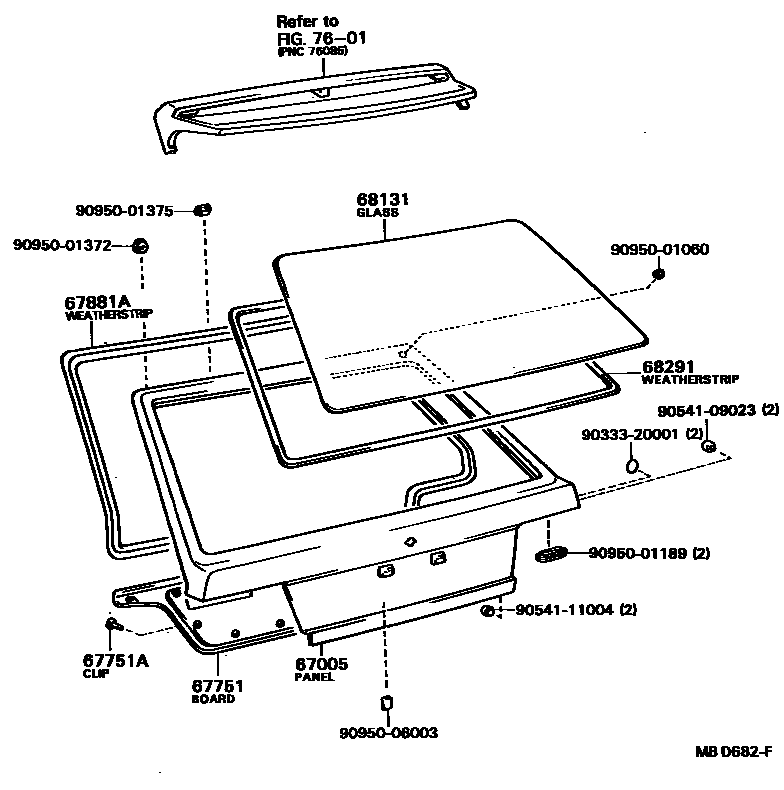

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67005 | Rear door panel sub-assembly | 67005-16010 · 67005-16011 · 67005-16020 · 67005-16021 · 67005-16070 · 67005-16071 · 67005-16190 |
| 67881A | Back door seal | 67881-16040 |
| 68131 | back door glass | 68131-16100 · 68131-16110 · 68131-16120 · 68131-16130 |
| 68291 | Rear door glass seal strip | 68291-16010 |
