Toyota COROLLA 后门锁和后门把手 — Figure 6706

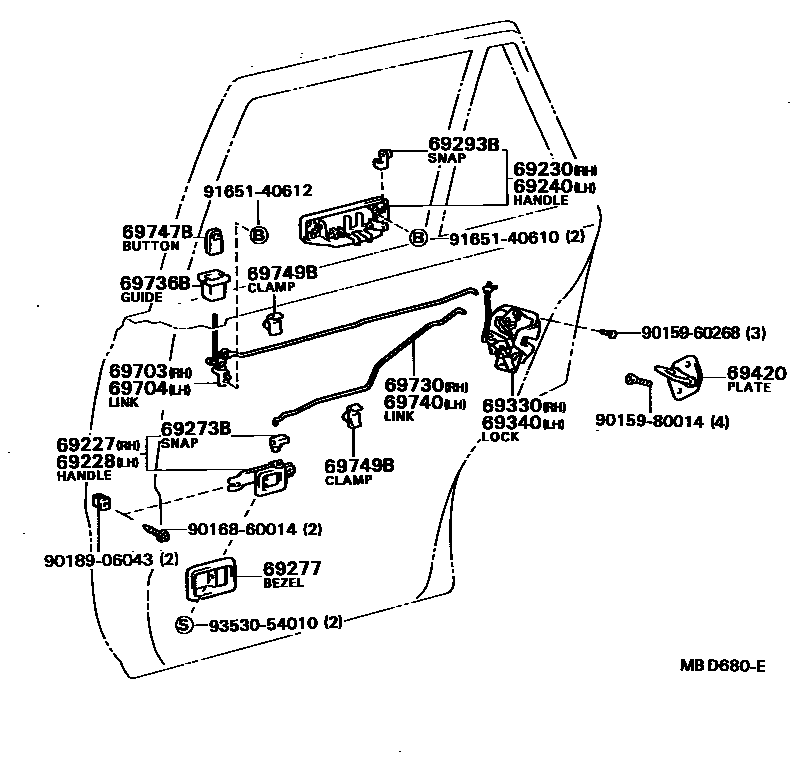

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69230-16010 |
| 69240 | Left rear door outer handle assembly | 69240-16010 |
| 69273B | Inner door handle lever buckle (for rear door) | 69759-14050 · 69759-24070 |
| 69293B | Rear door outer handle buckle | 69293-16030 · 69293-16040 |
| 69330 | Right rear door door lock assembly | 69330-16030 · 69330-16070 · 69330-16080 |
| 69340 | Left rear door lock assembly | 69340-16030 · 69340-16070 · 69340-16080 |
| 69420 | Rear door lock plate assembly | 69410-12050 · 69410-14040 · 69410-14050 · 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69770-16020 · 69770-16030 · 69770-16040 |
| 69704 | Left rear door lock control link sub-assembly | 69780-16020 · 69780-16030 · 69780-16040 |
| 69730 | Right rear door opening control linkage assembly | 69713-16020 |
| 69736B | Rear door lock link guide block | 69736-12030 · 69736-22021 |
| 69740 | Left rear door opening control linkage assembly | 69714-16020 |
| 69749B | Rear door lock link clamp | 69749-30020 |
