Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 25 PNC and OE references.

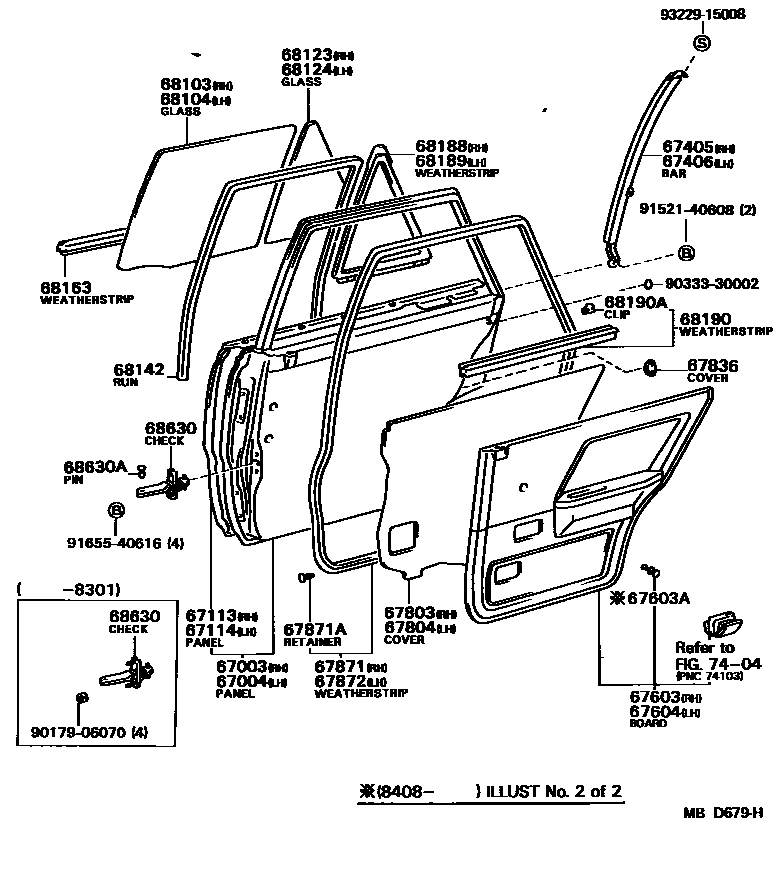

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MBD679H
后门板和后门玻璃 — MBD679H (198205 – 999999)
Toyota COROLLA 后门板和后门玻璃 EPC diagram — MBH866A
后门板和后门玻璃 — MBH866A (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-16040 · 67003-16120
67004Left rear door panel sub-assembly67004-16040 · 67004-16120
67113Right rear door outer panel67113-16030 · 67113-16040
67114Left rear door outer panel67114-16030 · 67114-16040
67405Right rear door window divider sub-assembly67407-16020
67406Left rear door window divider sub-assembly67408-16020
67603AFixings (for rear door trim)67771-12020 · 67771-16020 · 67771-23010
67803Right rear door access hole cover sub-assembly67841-16060 · 67841-16070
67804Left rear door access hole cover sub-assembly67842-16020 · 67842-16040
67836Right rear door lock child restraint cover67836-16010
67871Right rear door sealing strip67871-16050 · 67871-16060 · 67871-16150 · 67871-16170
67871AFixings (for rear door sealing strip)67868-30040
67872Left rear door sealing strip67872-16050 · 67872-16060 · 67872-16150 · 67872-16170
68103Right rear door glass sub-assembly68113-16030 · 68113-16040
68104Left rear door glass sub-assembly68114-16030 · 68114-16040
68123Right rear door window glass68123-16030 · 68123-16040
68124Left rear door window glass68124-16030 · 68124-16040
68142Rear door glass lift chute68142-16020 · 68142-16030
68163Rear door glass outer seal strip68180-16020 · 68230-16010
68188Right rear door corner window seal68188-16020
68189Left rear door corner window seal68189-16020
68190Rear door glass inner sealing strip assembly68190-16030 · 68240-16030
68190ACatch (for rear door glass inner sealing strip assembly)68211-10030
68630Rear door opening limiter assembly68630-16020
68630APin (for rear door opening limiter)68617-12010 · 68617-22010 · 68617-90A00
