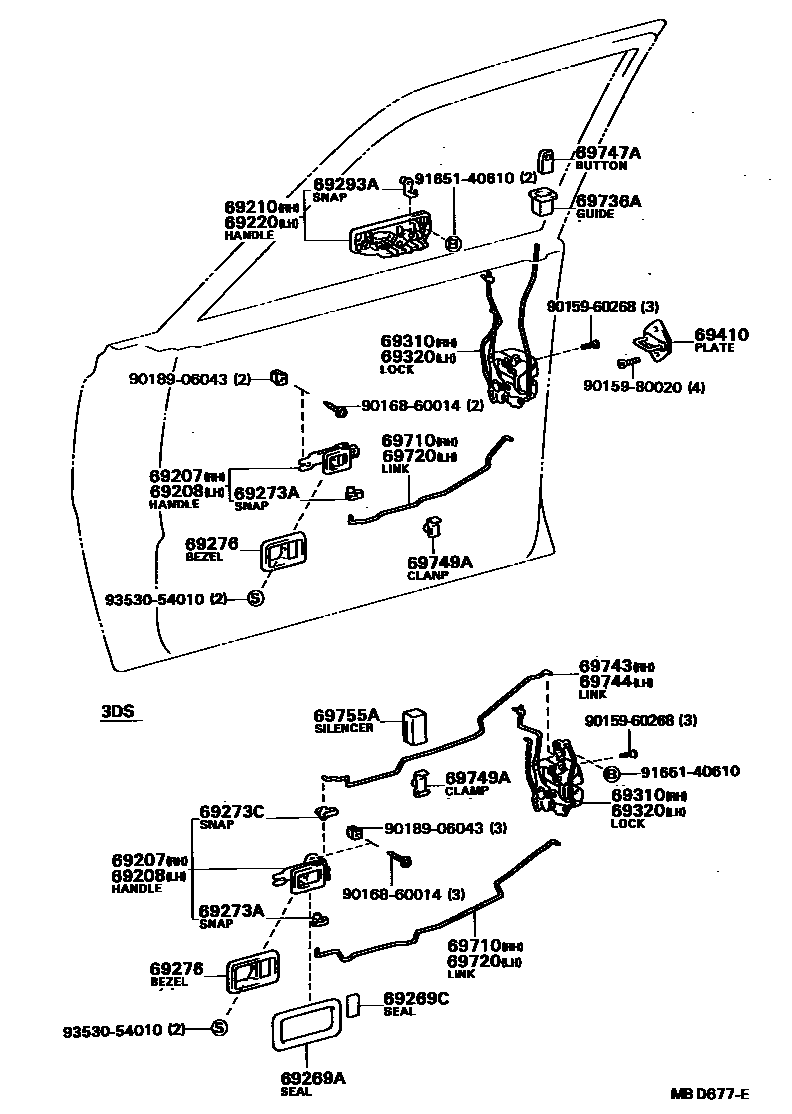

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-16040 |
| 69220 | Left front door outer handle assembly | 69220-16040 |
| 69269A | Door No. 1 inner handle seal (for front door) | 69269-14010 |
| 69269C | Door No. 2 inner handle seal (for front door) | 69289-12010 |
| 69273A | Inner door handle lever buckle (for front door) | 69759-14050 · 69759-24070 |
| 69273C | Car door inner handle link buckle | 69759-24030 · 69759-24040 |
| 69293A | Front door outer handle buckle | 69293-16030 · 69293-16040 |
| 69310 | Right front door lock assembly | 69310-16050 · 69310-16060 · 69310-16070 · 69310-16080 · 69310-16120 |
| 69320 | Left front door lock assembly | 69320-16050 · 69320-16060 · 69320-16070 · 69320-16080 · 69320-16120 |
| 69410 | Front door lock plate assembly | 69410-12050 · 69410-14040 · 69410-14050 · 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-16030 · 69711-16040 |
| 69720 | Left front door opening control linkage assembly | 69712-16030 · 69712-16040 |
| 69736A | Front door lock link guide block | 69736-12030 · 69736-22021 |
| 69743 | Right front door lock control link No. 1 | 69733-16020 |
| 69744 | Left front door No. 1 locking control link | 69734-16020 |
| 69749A | Front door lock No. 1 link clamp | 69749-12030 · 69749-30020 |
| 69755A | Front door lock link silencer | 69759-14010 |
