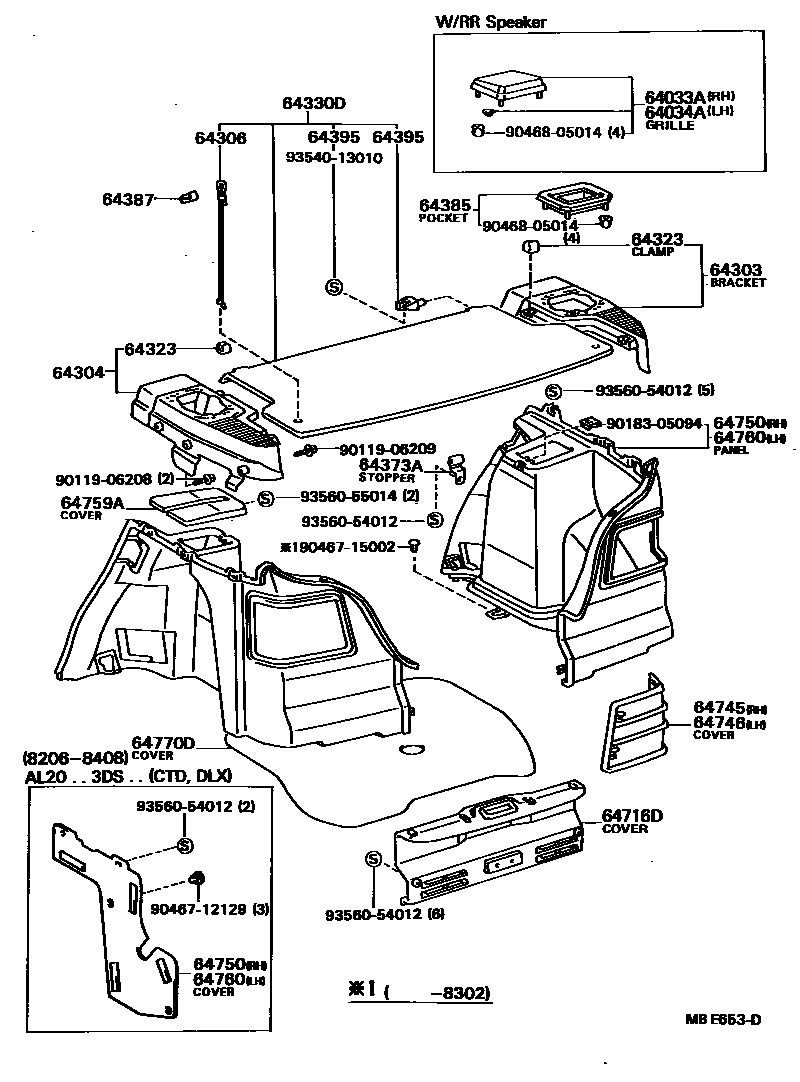

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-16020 |
| 64323 | Glove box decorative plate clip No. 1 | 64323-10010 · 64324-10010 |
| 64373A | Glove box decorative panel stopper | 64373-16010 |
| 64387 | Glove box decorative panel hanger | 64381-10010 |
| 64395 | Glove box trim panel hinge pin | 64373-20020 · 64379-20010 · 64395-16010 |
| 64770D | Spare tire cover assembly | 64770-16030 |
