Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

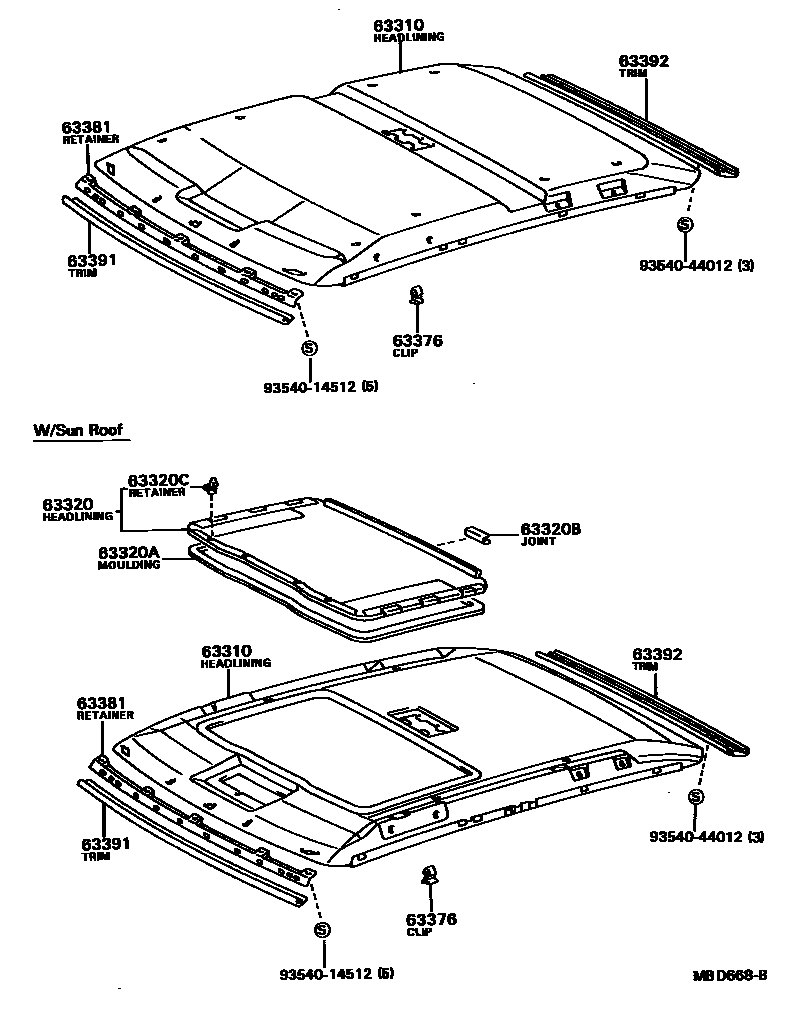

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310 | Headlining assembly | 63310-16030 · 63310-16100 · 63310-16110 · 63310-16130 |
| 63320B | Skylight opening decorative strip joint | 63319-14011 |
| 63320C | Decorative panel fixings (for skylights) | 63317-20030 |
| 63376 | Lined clips | 63395-12020 |
| 63381 | Front lining fastener | 63381-16020 |
| 63391 | Front headliner trim panel | 63391-16020 |
| 63392 | Rear headliner trim panel | 63392-16030 |
