Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

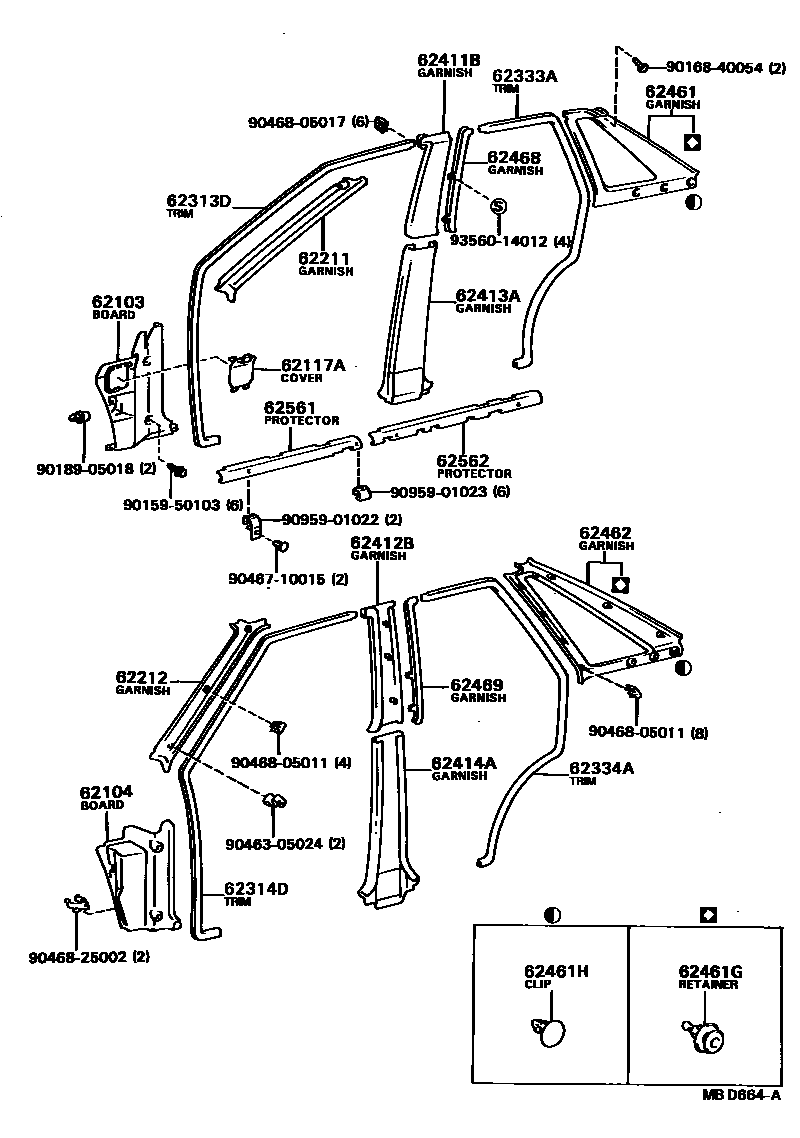

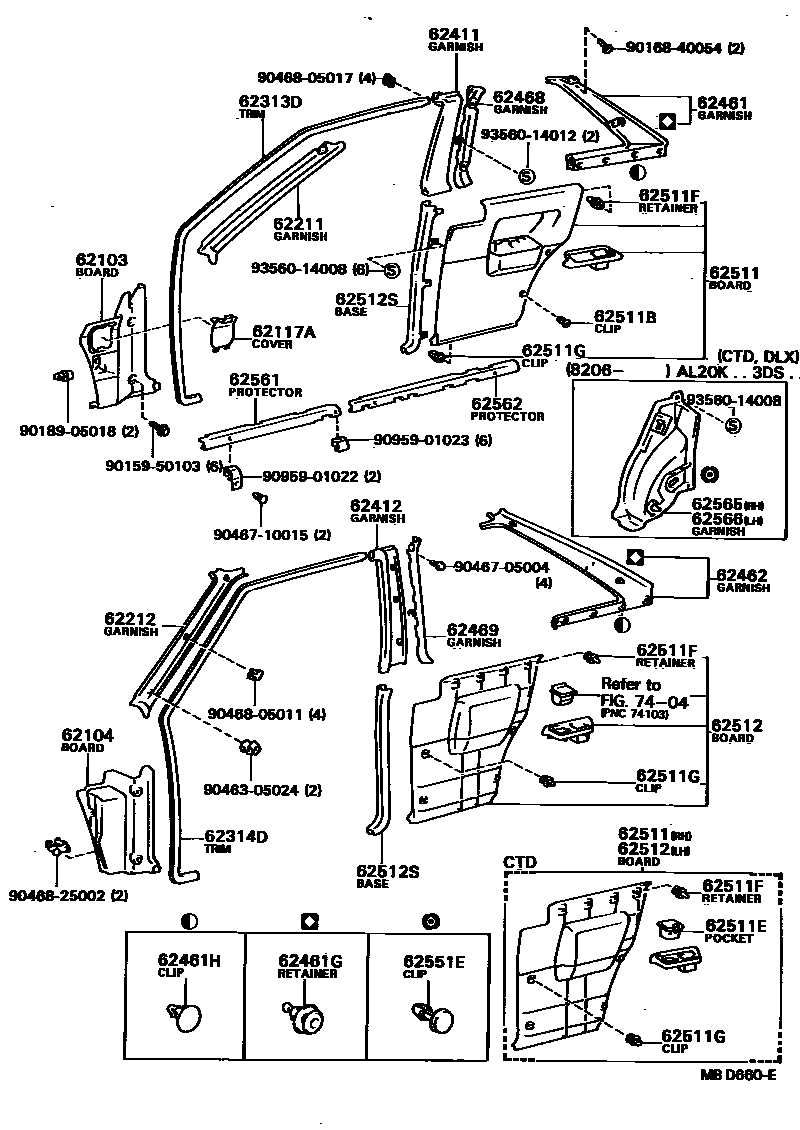

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62211 | Right front pillar trim | 62211-16020 |
| 62212 | Left front pillar trim | 62212-16020 |
| 62461 | Roof right side trim panel | 62471-16070 · 62471-16090 |
| 62461G | door trim panel fixings | 67771-12020 · 67771-23010 |
| 62462 | Roof left side panel decorative part | 62472-16070 · 62472-16090 |
| 62511F | Fixings (for inner decorative panels on side panels) | 67771-12020 · 67771-22010 |
| 62511G | Clip (for the inner decorative panel of the side panel) | 90467-10019 |
| 62561 | Front door inner sill protection strip | 62561-16010 · 62562-16010 |
| 62562 | Rear door inner sill protection strip | 62563-16010 · 62564-16010 |
