Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

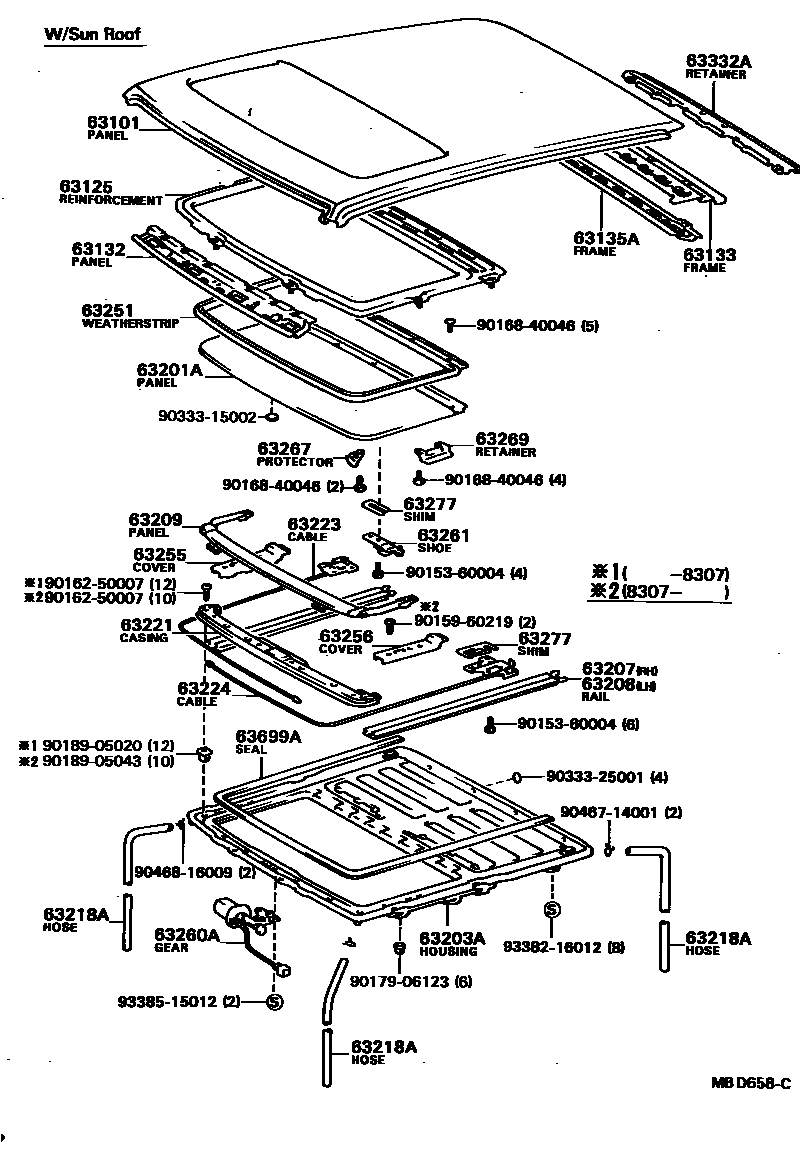

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63101 | Roof panel sub-assembly | 63111-16080 · 63111-16090 |
| 63104 | Center roof panel reinforcement sub-assembly | 63141-16020 |
| 63125 | No. 2 roof panel reinforcement | 63142-16010 |
| 63132 | Windshield inner roof panel | 63132-16020 |
| 63133 | Opening frame on back window | 63134-16020 · 63134-16040 |
| 63135A | Opening frame under rear door | 63135-16020 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-16010 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-16030 · 63203-16031 · 63203-20010 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12030 · 63207-12031 · 63207-12032 · 63207-20010 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12030 · 63208-12031 · 63208-12032 · 63208-20010 |
| 63209 | Roof deflector sub-assembly | 63209-14020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-16020 · 63249-16040 |
| 63221 | Sliding sunroof cable duct | 63221-12030 · 63221-20010 |
| 63223 | Right sliding sunroof transmission cable | 63223-20010 |
| 63224 | Left sliding sunroof transmission cable | 63224-20010 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-12040 · 63251-14020 |
| 63255 | Right sliding sunroof guide cover | 63255-12030 · 63255-20010 |
| 63256 | Left sliding sunroof guide cover | 63255-12030 · 63255-20010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-20010 |
| 63261 | Front sliding sunroof slider | 63261-12020 · 63261-20010 · 63262-12020 |
| 63267 | Sliding sunroof sealing strip protection | 63267-14010 · 63267-20010 · 63268-14020 · 63268-20010 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 · 63279-20010 |
| 63277 | Sliding skylight stringer gasket | 63277-14020 · 63277-20010 |
| 63332A | Rear headliner fixings | 63383-16010 |
| 63699A | Sliding sunroof guide seals | 63699-12010 |
