Toyota COROLLA 角窗 — Figure 6103

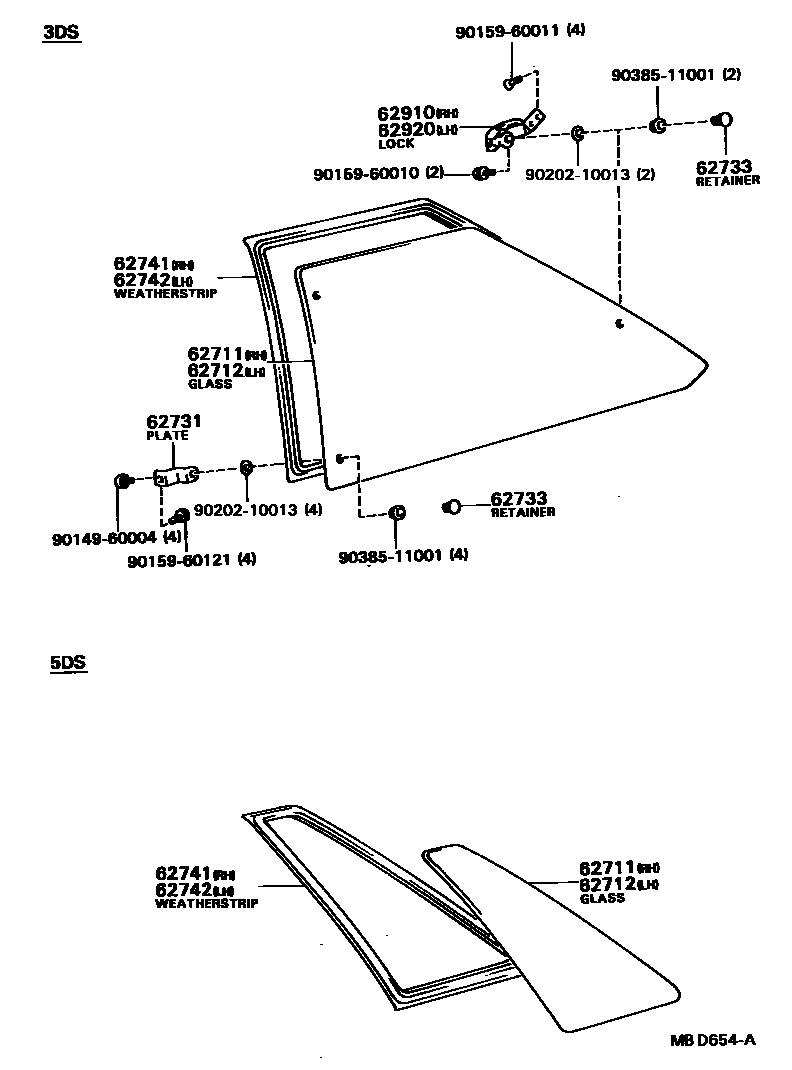

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-16110 · 62711-16120 · 62711-16140 · 62711-16150 · 62711-16160 |
| 62712 | Left corner window glass | 62712-16110 · 62712-16120 · 62712-16140 · 62712-16150 · 62712-16160 |
| 62731 | Corner or side window hinge panels | 62731-16020 |
| 62733 | Corner or side window hinge fixings | 62735-14010 |
| 62741 | Right corner window sealing strip | 62741-16050 · 62741-16060 · 62741-16070 |
| 62742 | Left corner window sealing strip | 62742-16050 · 62742-16060 · 62742-16070 |
| 62910 | Right corner window or side window lock assembly | 62910-16020 |
| 62920 | Left corner window lock assembly | 62920-16020 |
