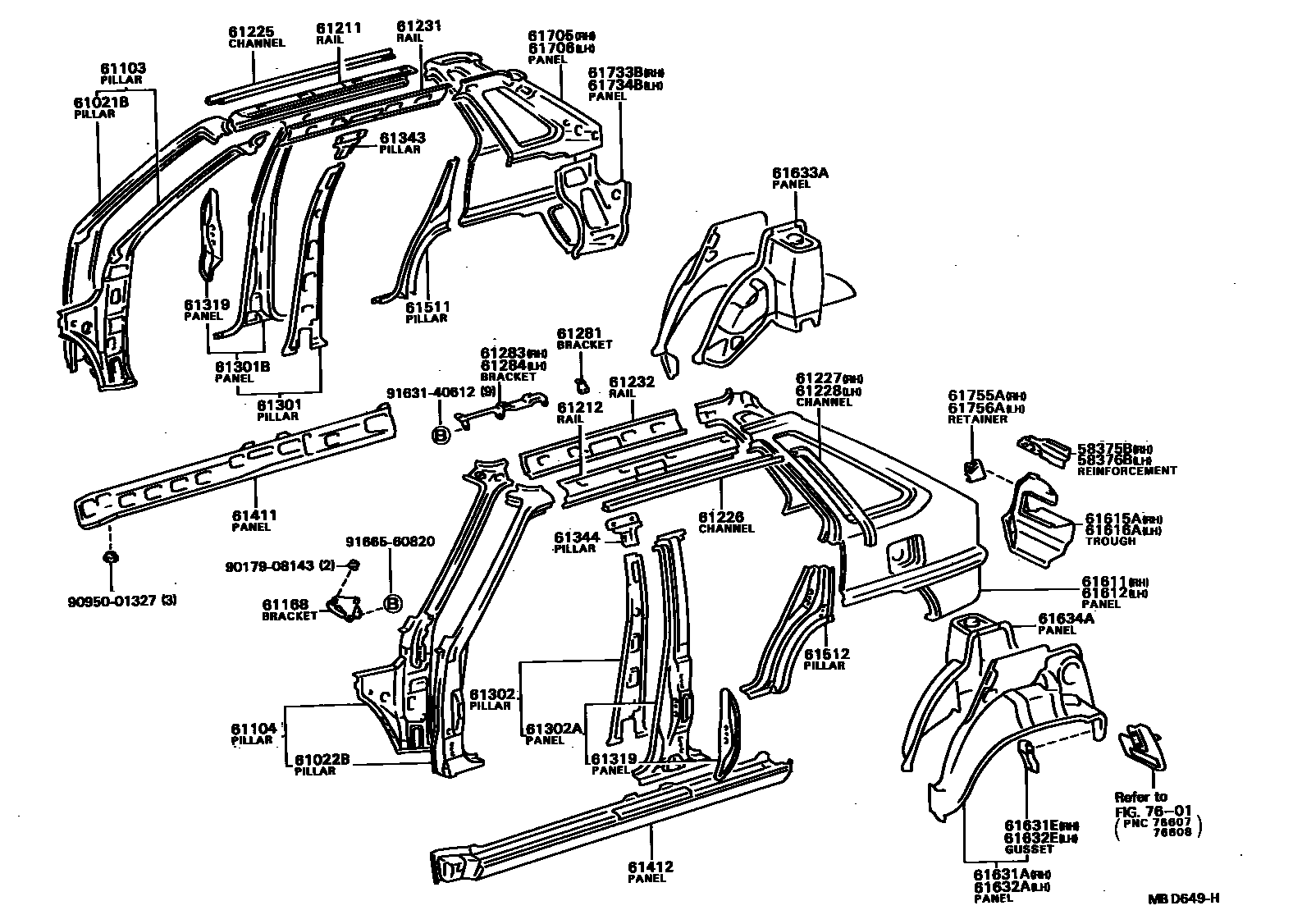

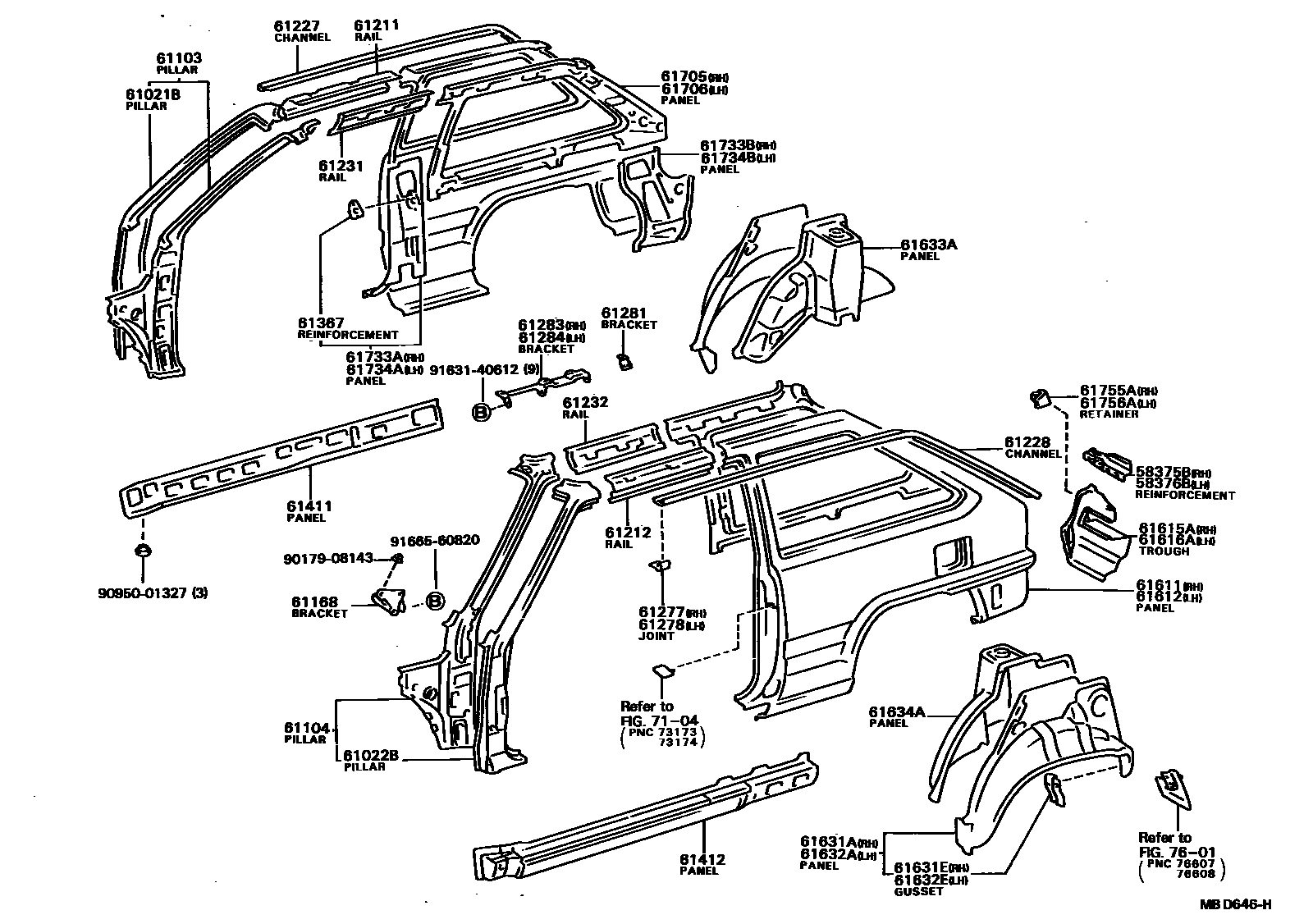

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58375B | Right body lower back panel reinforcement | 58375-16010 |
| 58376B | Left body lower back panel reinforcement | 58376-16010 |
| 61021B | Right body front upper pillar sub-assembly | 61021-16901 |
| 61022B | Left body front upper pillar sub-assembly | 61022-16901 |
| 61103 | Right body front pillar sub-assembly | 61021-16040 |
| 61104 | Left body front pillar sub-assembly | 61022-16060 |
| 61168 | Dashboard to left front wall side bracket | 61166-16020 |
| 61211 | Roof right outer longitudinal beam | 61211-16030 · 61211-16050 |
| 61212 | Roof left outer longitudinal beam | 61212-16030 · 61212-16050 |
| 61225 | Drainage channel in the middle section on the right side of the roof | 61265-16010 |
| 61226 | Drainage channel in the middle section of the left side of the roof | 61266-16010 |
| 61227 | Roof right rear gutter | 61267-16030 · 61267-16040 |
| 61228 | Roof left rear gutter | 61268-16030 · 61268-16040 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-16040 · 61231-16060 |
| 61232 | Roof left inner longitudinal beam | 61232-16040 · 61232-16060 |
| 61277 | Roof right front drain channel connector | 61277-16010 · 61277-16020 |
| 61278 | Roof left front drain gutter connector | 61277-16010 · 61277-16020 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-16010 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-16010 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-16010 |
| 61301 | Right body center pillar sub-assembly | 61301-16020 |
| 61301B | Right body outer center pillar | 61301-16901 |
| 61302 | Left body center pillar sub-assembly | 61302-16030 |
| 61302A | Left body outer center pillar | 61302-16901 |
| 61319 | Body center pillar decorative panel | 61318-16020 · 61319-16020 |
| 61343 | Right inner middle pillar | 61341-16020 |
| 61344 | Left side inner center pillar | 61342-16020 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-14010 |
| 61411 | Right door outer sill panel | 61401-16090 · 61401-16100 · 61401-16110 |
| 61412 | Left door outer sill panel | 61402-16090 · 61402-16100 · 61402-16110 |
| 61511 | Right side locking post | 61511-16900 |
| 61512 | Left side locking post | 61512-16900 |
| 61611 | Right side hoarding | 61601-16902 · 61601-16903 · 61601-16911 · 61601-16912 · 61601-16914 |
| 61612 | left side panel | 61602-16903 · 61602-16904 · 61602-16905 · 61602-16914 · 61602-16915 · 61602-16917 · 61602-16918 · 61602-16919 · 61602-16921 · 61602-16922 · 61602-16926 |
| 61615A | Back door right opening slot | 61621-16030 |
| 61616A | Rear door left opening slot | 61622-16030 |
| 61631A | Right wheel cover outer panel | 61605-16060 · 61605-16080 |
| 61631E | Right rear side wheel housing corner panel | 61645-16010 |
| 61632A | Left side wheel cover outer panel | 61606-16080 · 61606-16100 |
| 61632E | Left rear side wheel housing corner panel | 61646-16020 |
| 61633A | Right wheel housing lining panel | 61607-16110 |
| 61634A | Left side wheel housing lining panel | 61608-16140 |
| 61705 | Roof right inner panel sub-assembly | 61705-16908 · 61705-16909 |
| 61706 | Roof left inner panel sub-assembly | 61706-16908 · 61706-16909 |
| 61733A | Right front roof inner panel | 61733-16900 |
| 61733B | Right rear roof inner panel | 61735-16010 · 61735-16030 |
| 61734A | Left front roof inner panel | 61734-16900 |
| 61734B | Left rear roof inner panel | 61736-16010 · 61736-16030 |
| 61755A | Upper fixing piece for the decorative part on the right side of the base plate | 61755-16020 |
| 61756A | Upper fixing piece for the decorative part on the left side of the floor panel | 61755-16020 |
