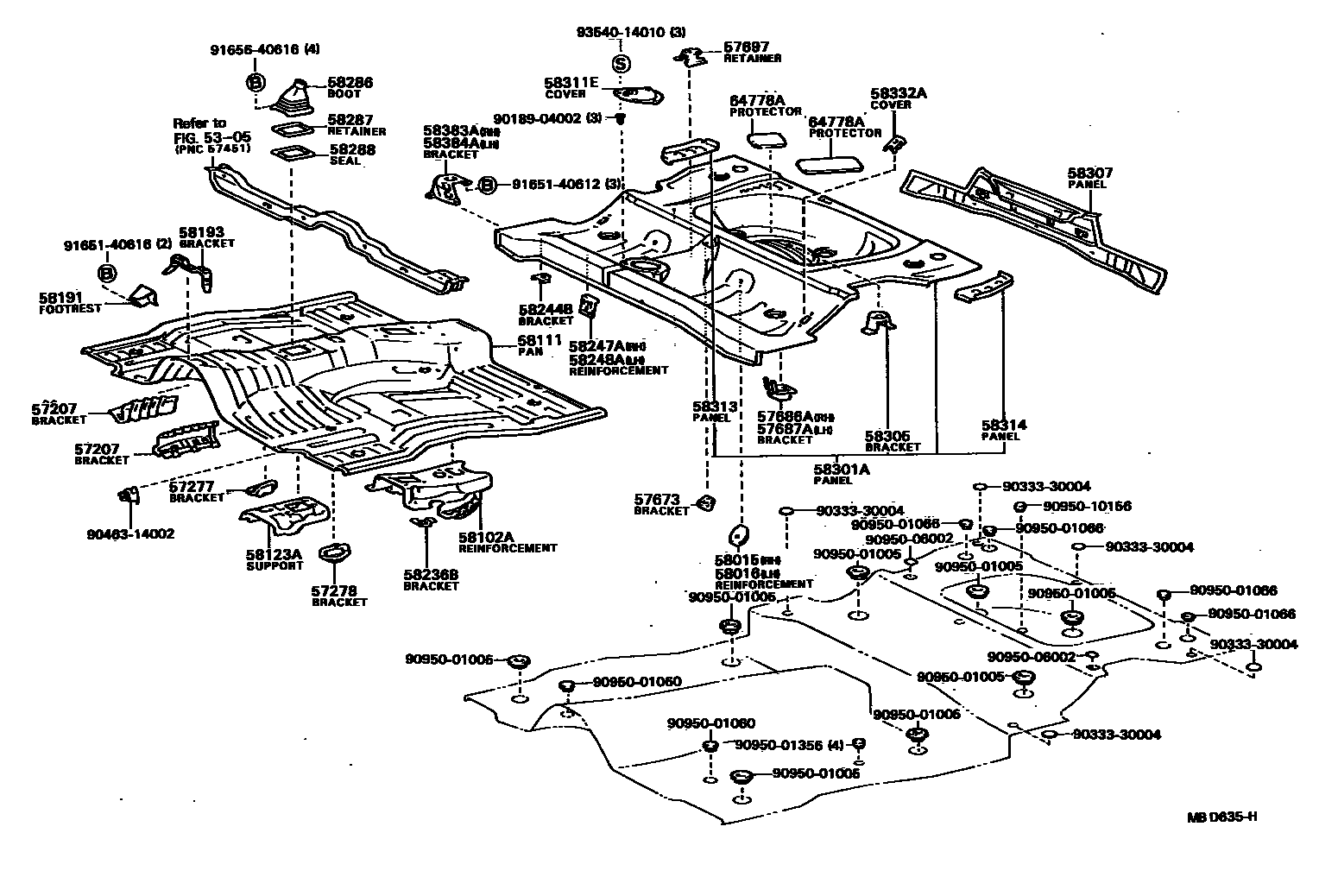

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57207 | Engine rear suspension beam bracket sub-assembly | 57207-16030 · 57208-16030 |
| 57277 | Three-way catalytic converter right bracket | 57277-16010 |
| 57278 | Three-way catalytic converter left bracket | 57278-16040 |
| 57673 | Rear seat back hinge mounting bracket | 57673-16010 |
| 57686A | Fuel tank right rear mounting bracket | 57686-16010 · 57686-16011 |
| 57687A | Fuel tank left rear mounting bracket | 57687-16010 · 57687-16011 |
| 57697 | Rear seat cushion fixings | 57697-16010 |
| 58015 | Right seat belt anchor to floor pan reinforcement | 58015-16010 |
| 58016 | Left-hand seat belt anchor to floor pan reinforcement | 58015-16010 |
| 58102A | Front floor reinforcement sub-assembly | 58102-16010 |
| 58111 | front floor pan | 58111-16020 |
| 58123A | shift lever bracket | 58123-16020 · 58123-16030 |
| 58191 | Front floor footrest | 58191-16020 |
| 58193 | Dashboard bracket mounting bracket | 58193-16020 |
| 58236B | Central floor insulation pad bracket | 58236-14010 |
| 58244B | Rear seat cushion mounting bracket | 58244-16010 · 58244-16030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-16010 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-16010 |
| 58286 | No. 1 shift lever dust cover | 58286-16050 · 58286-16070 |
| 58287 | Shift lever dust cover retaining ring | 58087-16010 · 58287-16010 |
| 58288 | Gear shifter boot seal | 58288-16011 |
| 58301A | Rear floor sub-assembly | 58301-16901 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-16260 |
| 58311E | Rear floor access hole cover | 58325-16020 |
| 58313 | Rear floor right panel | 58313-16020 |
| 58314 | rear floor left panel | 58314-16020 |
| 58332A | Rear floor side access hole cover | 58331-16010 · 58332-16010 |
| 58383A | Rear right seat bracket | 58215-16010 |
| 58384A | Rear left seat bracket | 58216-16010 |
| 64778A | Spare tire protection device | 64759-16030 · 64778-12010 · 64778-12020 · 64778-16010 |
