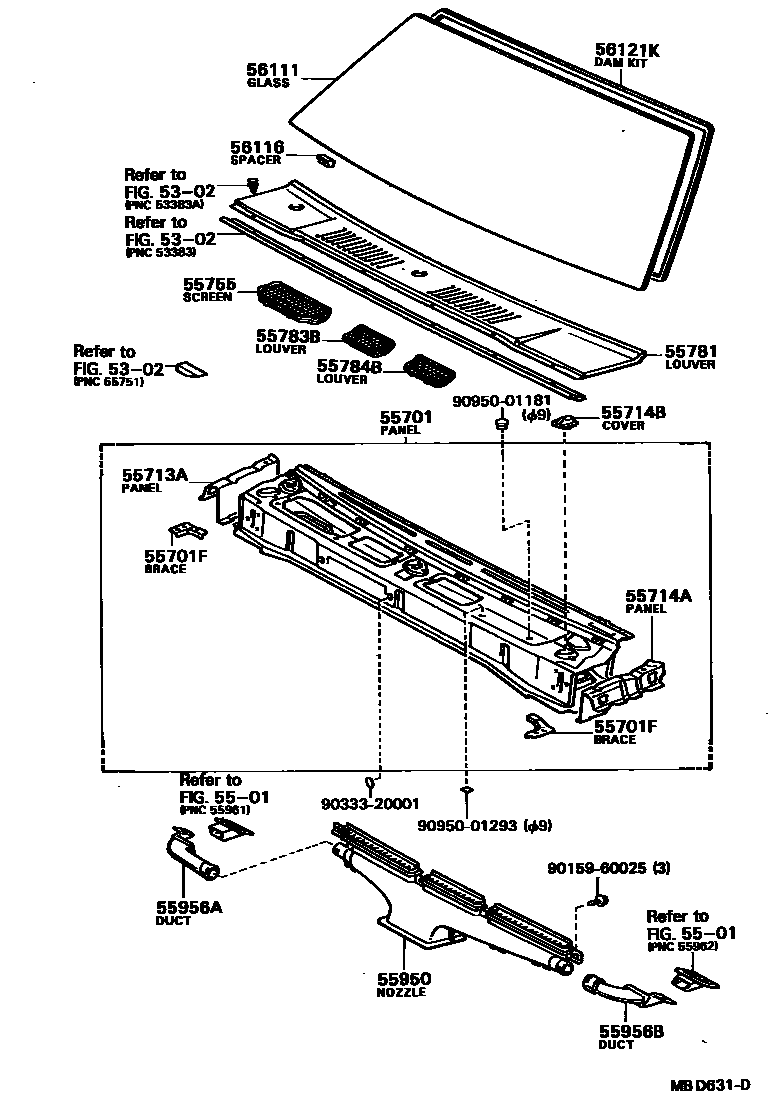

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55701 | Front apron sub-assembly | 55700-16030 |
| 55701F | From cowl upper cover to fender stay | 55715-16020 · 55716-16020 |
| 55713A | Right front wall upper side panel | 55713-16020 |
| 55714A | Left front wall upper side panel | 55714-16020 |
| 55714B | Left front wall side panel hole cover | 55729-16010 |
| 55755 | heater duct partition | 55756-16020 |
| 55781 | Front apron ventilation grille | 55781-16010 · 55781-16030 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-16030 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-16010 |
| 55950 | Defroster nozzle assembly | 55950-16020 · 55950-16021 |
| 55956A | Side defroster No. 1 nozzle air duct | 55970-16010 |
| 55956B | Side defroster No. 2 nozzle air duct | 55980-16010 |
| 56111 | windshield | 56111-16050 · 56111-16060 · 56111-16070 · 56111-16080 · 56111-16090 · 56111-16100 |
| 56116 | windshield spacer | 56116-16020 · 56116-16030 |
| 56121K | Windshield sealing strip assembly | 04562-30030 · 04562-30040 |
