Toyota COROLLA 仪表板和手套箱 — Figure 5501

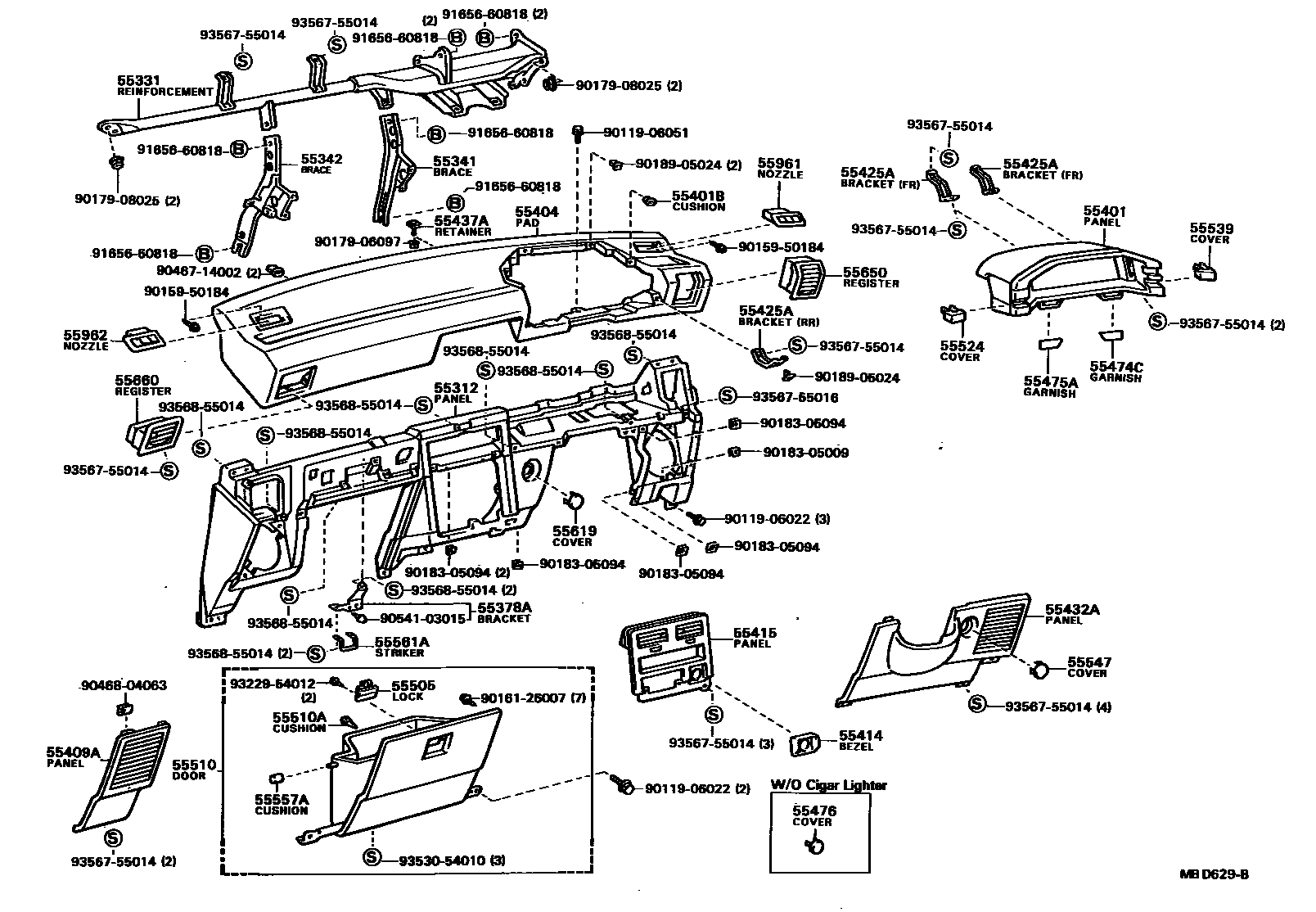

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55331 | Dashboard reinforcement | 55330-16010 · 55330-16011 |
| 55341 | Instrument panel bracket No. 1 | 55306-16030 |
| 55342 | Instrument panel bracket No. 2 | 55307-16030 |
| 55378A | Glovebox lid lock mounting bracket | 55378-16010 |
| 55401B | Instrument cluster decorative panel cushion | 55419-16010 |
| 55414 | Cigarette lighter hole frame | 55477-16030 · 55477-16040 |
| 55415 | Center instrument cluster decorative panel | 55405-16010 · 55405-16011 · 55405-16012 |
| 55425A | Instrument cover fixed bracket | 55425-16030 · 55426-16030 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-16020 |
| 55474C | Instrument cluster No. 1 decorative panel decorative parts | 55474-16010 · 55474-16030 |
| 55475A | Instrument cluster No. 2 decorative panel decorative parts | 55475-16010 · 55475-16030 |
| 55476 | Cigarette lighter hole cover | 55477-10010 · 55477-10050 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55524 | Switch base hole cover | 55524-16010 |
| 55539 | Spare switch hole cover | 55539-16010 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55561A | Glove box lid lock | 55561-16020 · 55561-32010 |
