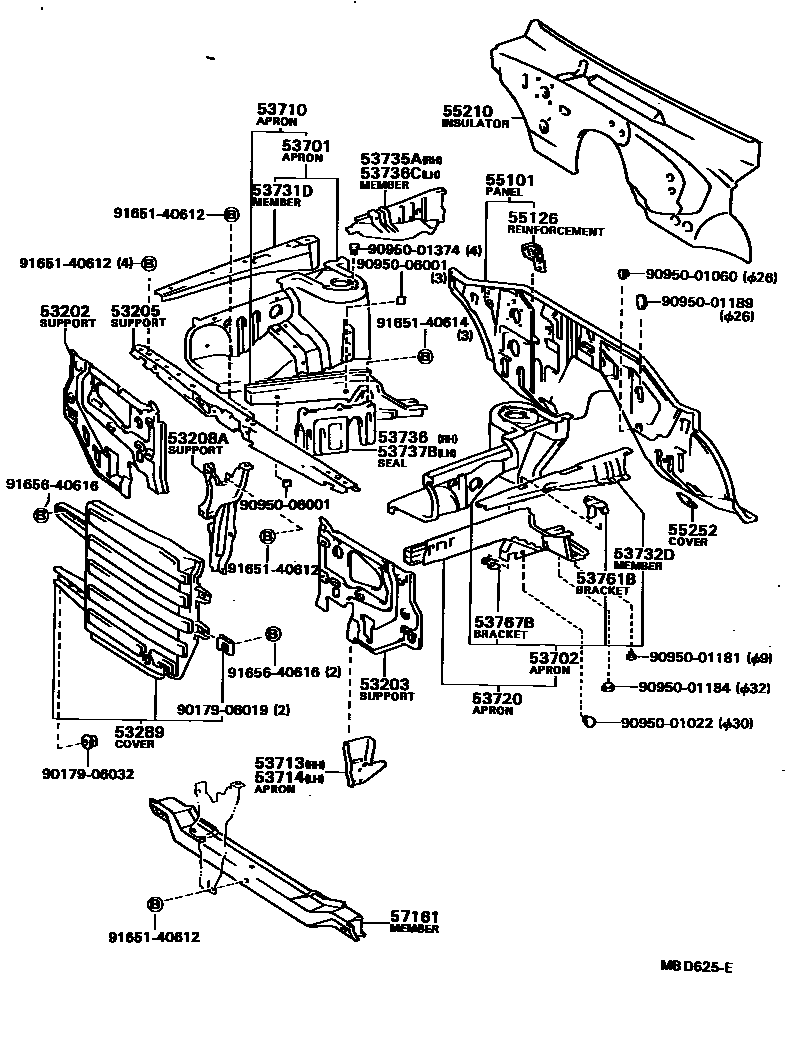

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-16030 |
| 53203 | Radiator left bracket sub-assembly | 53203-16030 · 53203-16040 |
| 53205 | Radiator upper bracket sub-assembly | 53205-16010 · 53205-16030 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-16010 · 53208-16020 |
| 53289 | Radiator side baffle cover | 53289-16020 |
| 53701 | Right front fender fender sub-assembly | 53701-16060 |
| 53702 | Left front fender fender sub-assembly | 53702-16060 |
| 53710 | Right fender assembly with front longitudinal beam | 53701-16902 · 53701-16903 |
| 53713 | Right fender fender | 53713-16030 · 53713-16040 |
| 53714 | Left fender fender | 53714-16030 · 53714-16040 |
| 53720 | Left fender assembly with front longitudinal beam | 53702-16902 · 53702-16905 |
| 53731D | Right front fender to cowl side upper beam | 53731-16010 |
| 53732D | Left front fender to cowl side upper beam | 53732-16010 |
| 53735A | Right front fender to front side lower beam | 53735-16010 |
| 53736 | Right front fender fender seal | 53736-16030 |
| 53736C | Left front fender to front side lower beam | 53706-16010 · 53736-16040 |
| 53737B | Left front fender fender seal | 53737-16030 |
| 53761B | Battery clip mounting bracket | 53761-16030 |
| 53767B | Battery harness bracket | 53767-20040 |
| 55101 | Front apron sub-assembly | 55101-16130 · 55101-16150 · 55101-16310 · 55101-16320 · 55101-16330 |
| 55126 | Clutch harness bracket reinforcement | 55126-16060 |
| 55210 | Front wall insulation pad assembly | 55210-16030 · 55210-16050 |
| 55252 | Front panel hole cover | 55129-16010 |
| 57161 | front cross member | 57104-16030 · 57104-16040 |
