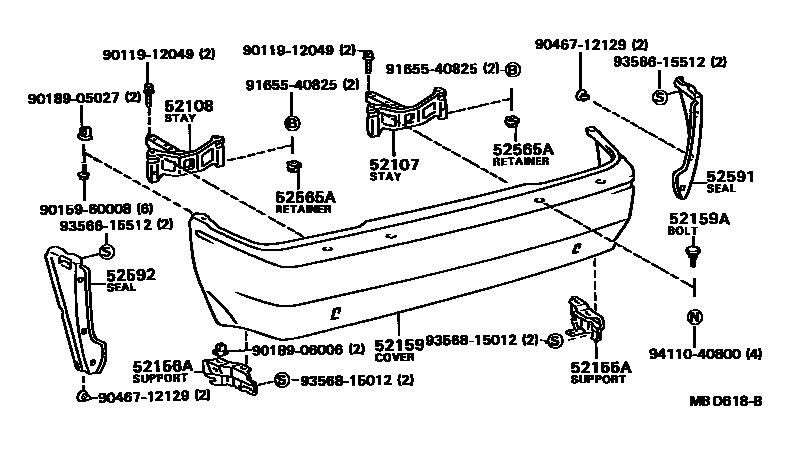

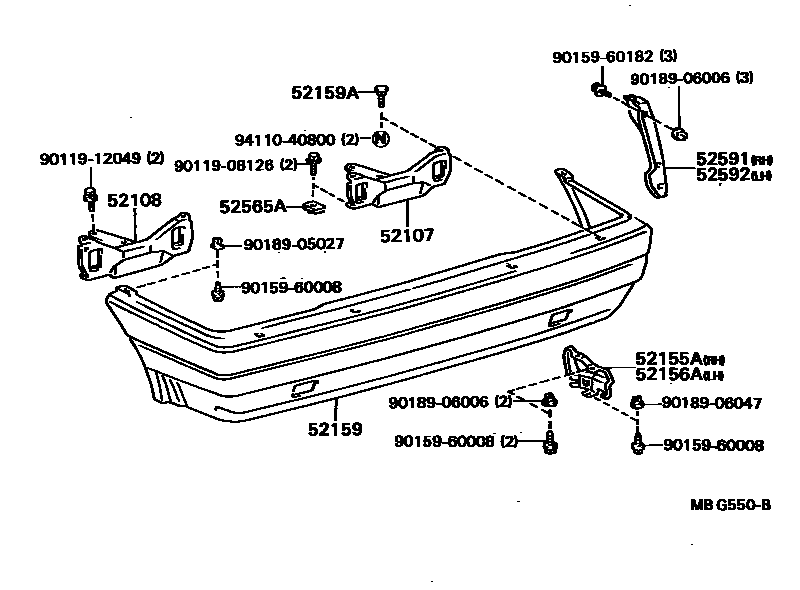

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52107 | Rear bumper right side stay sub-assembly | 52015-16050 · 52015-16130 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-16050 · 52016-16120 |
| 52155A | Rear bumper right side bracket | 52155-16020 |
| 52156A | Rear bumper left bracket | 52156-16020 |
| 52159 | rear bumper cover | 52159-16160 |
| 52565A | Rear bumper lower fixing bracket | 52565-16020 |
| 52591 | Rear bumper right seal | 52591-16040 |
| 52592 | Rear bumper left seal | 52592-16030 |
