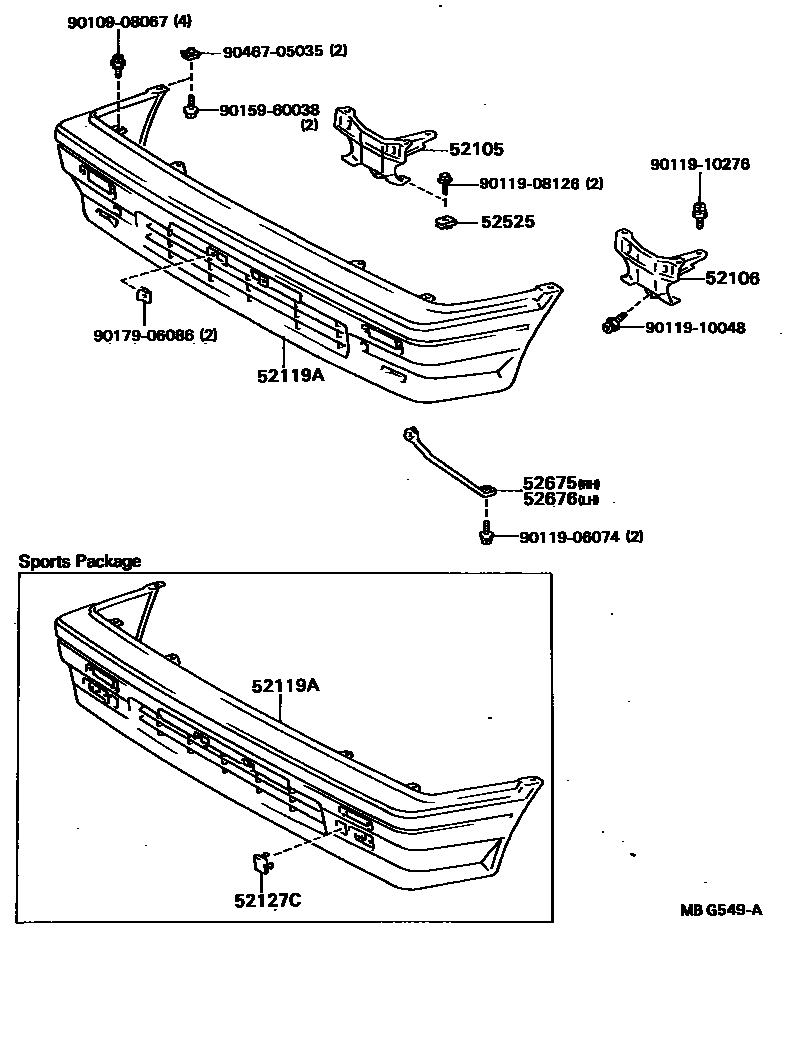

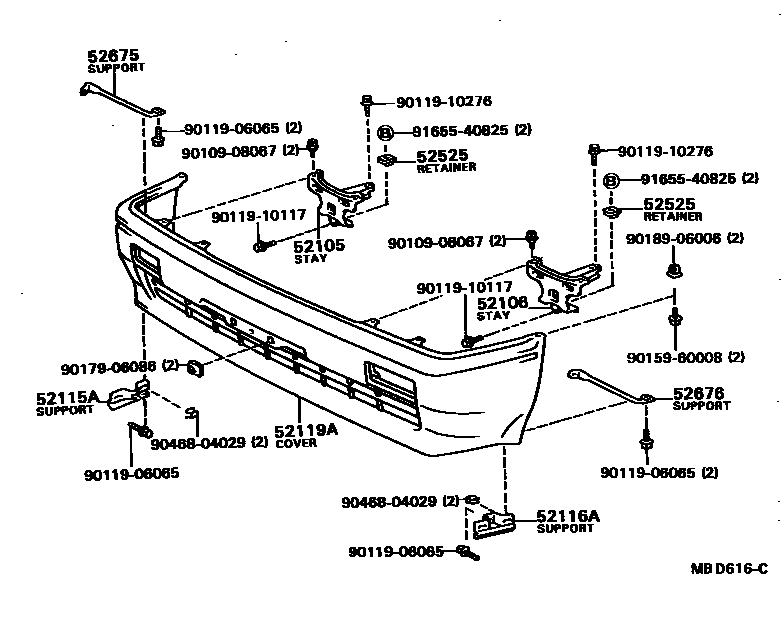

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105 | Front bumper right side stay sub-assembly | 52011-16050 · 52011-16051 |
| 52106 | Front bumper left stay sub-assembly | 52011-16050 · 52011-16051 |
| 52115A | Front bumper right side bracket | 52115-16050 |
| 52116A | Front bumper left bracket | 52115-16050 |
| 52119A | front bumper cover | 52119-16140 |
| 52525 | Front bumper lower center fixing bracket | 52565-16020 |
| 52675 | Front bumper lower right side bracket | 52675-16010 · 52675-16040 |
| 52676 | Front bumper lower left side bracket | 52676-16010 · 52676-16040 |
