Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

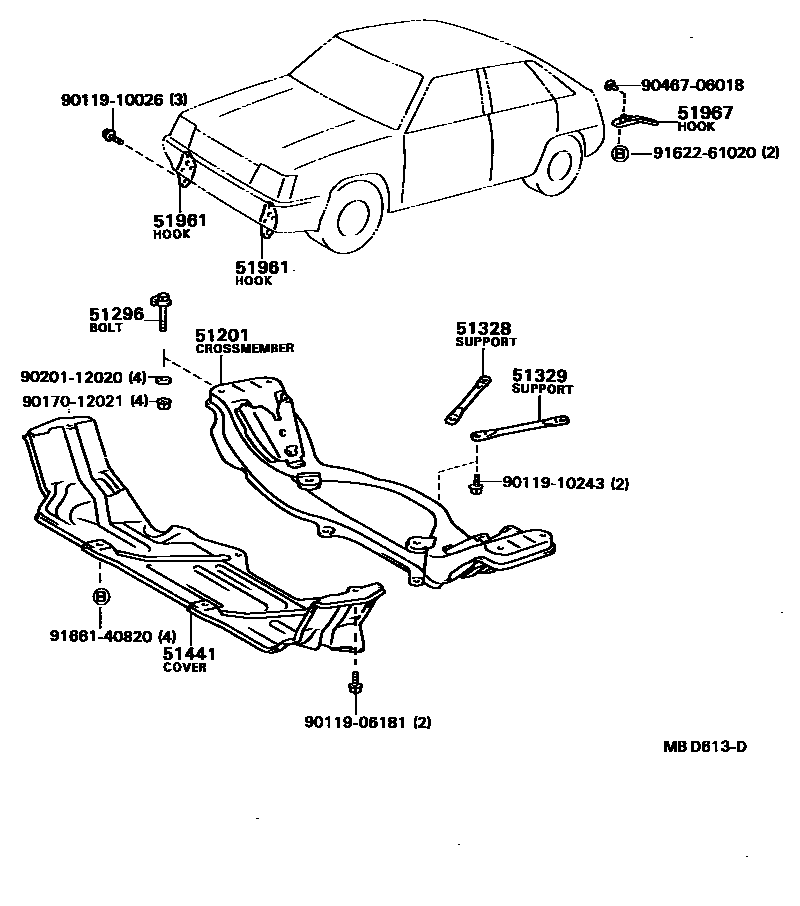

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-16030 · 51201-16050 |
| 51296 | Front suspension cross member mounting bolts | 51296-22020 |
| 51328 | Front suspension cross member right side bracket | 51328-16010 |
| 51329 | Front suspension cross member left bracket | 51329-16010 |
| 51441 | No. 1 engine bottom cover | 51441-16020 · 51441-16021 |
| 51961 | No. 1 hook | 51093-16010 · 51094-16010 · 51963-16020 |
| 51967 | Rear transport hook | 51095-16050 |
