Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

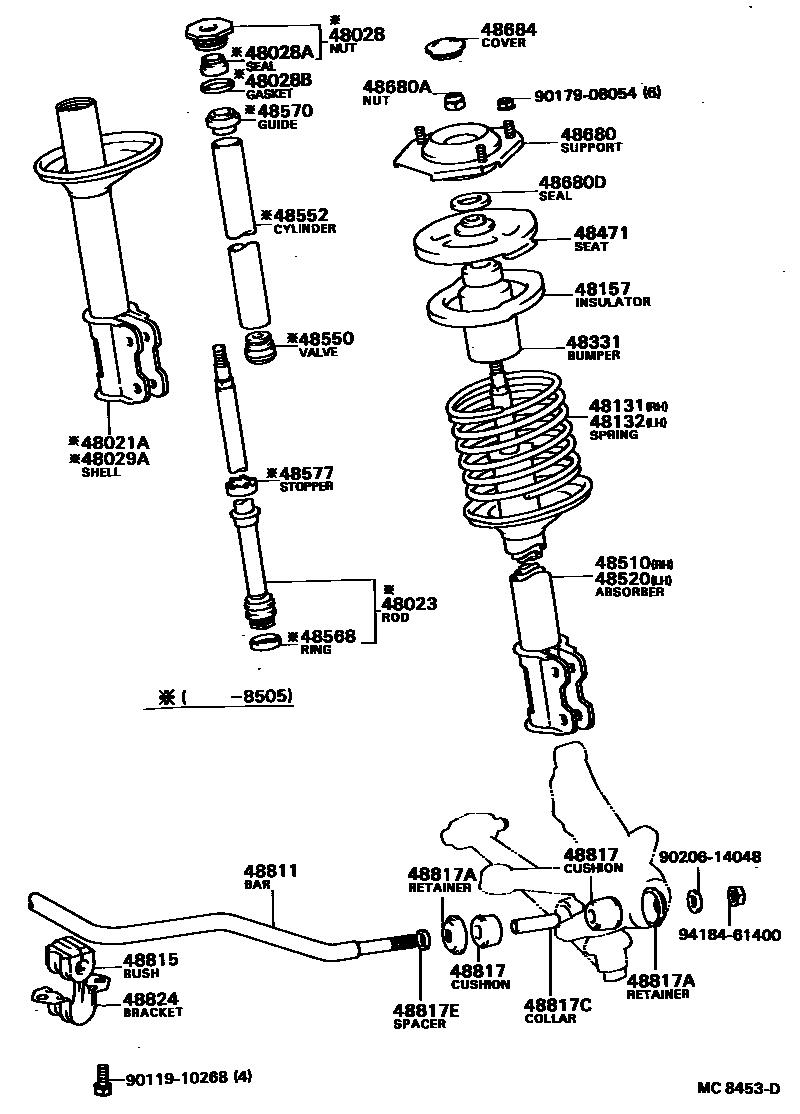

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48021A | Right front shock absorber housing sub-assembly | 48021-16030 |
| 48023 | Front shock absorber piston rod sub-assembly | 48023-16030 · 48023-16040 · 48023-16160 |
| 48028 | Shock absorber ring nut sub-assembly | 48028-10020 · 48028-17010 |
| 48028A | Oil seal (for shock absorber ring nut) | 90316-20004 · 90316-20006 |
| 48028B | Gasket (for shock absorber ring nut) | 90430-36002 · 90430-37003 |
| 48029A | Left front shock absorber housing sub-assembly | 48021-16030 |
| 48131 | Right front coil spring | 48131-16150 · 48131-16170 · 48131-16230 · 48131-16241 |
| 48132 | Left front coil spring | 48131-16150 · 48131-16170 · 48131-16230 · 48131-16241 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-16020 |
| 48331 | No. 1 front spring buffer block | 48331-16030 |
| 48471 | Front spring seat | 48044-16020 |
| 48510 | Right front shock absorber assembly | 48510-16040 · 48510-16050 · 48510-16120 · 48510-16121 · 48510-16130 · 48510-16131 · 48510-16230 · 48510-16270 |
| 48520 | Left front shock absorber assembly | 48510-16040 · 48510-16050 · 48510-16120 · 48510-16121 · 48510-16130 · 48510-16131 · 48510-16230 · 48510-16270 |
| 48550 | Shock absorber bottom valve assembly | 48550-12019 · 48550-16010 · 48550-16020 · 48550-16030 |
| 48552 | front shock absorber cylinder | 48552-16030 |
| 48568 | Shock absorber piston ring | 48568-12020 · 48568-12021 |
| 48570 | Damper rod guide assembly | 48022-10020 |
| 48577 | Shock absorber rebound limiter | 48577-10010 · 48577-16010 |
| 48680 | Front suspension support assembly | 48609-16040 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-32010 |
| 48811 | front stabilizer bar | 48811-16090 · 48811-16130 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-16090 · 48815-16140 |
| 48817 | Front stabilizer bar cushion | 48674-16030 · 48675-16040 · 48675-16041 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02056 |
| 48817C | Collar (for stabilizer bar) | 90387-14007 |
| 48817E | Spacer (for stabilizer bar) | 90560-14005 |
| 48824 | front stabilizer bar bracket | 48824-16020 |
