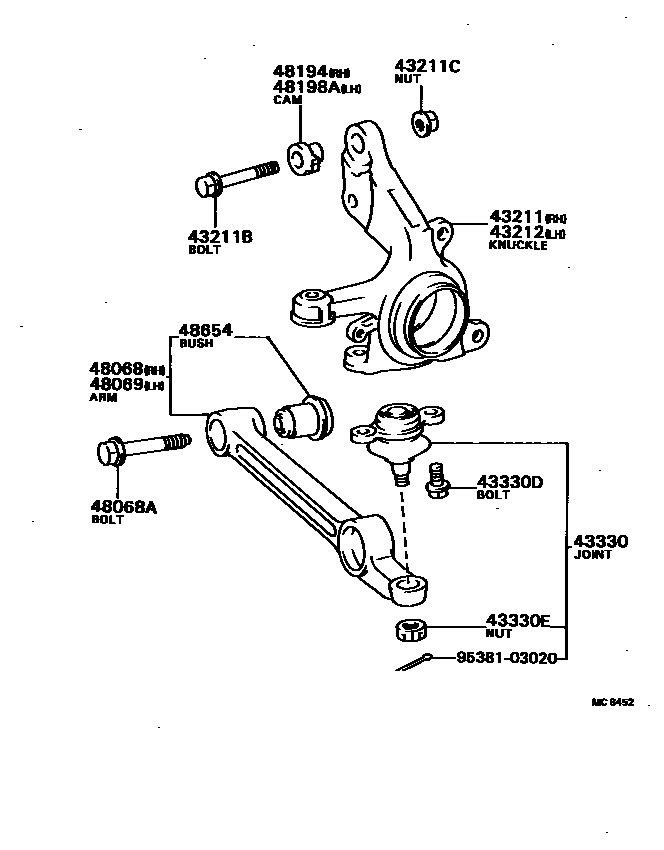

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-16020 |
| 43211B | Bolts (for securing the shock absorber) | 90105-12042 |
| 43211C | Nut (for fixing the shock absorber) | 90179-12025 · 90179-12029 |
| 43212 | left steering knuckle | 43212-16020 |
| 43330 | Front lower ball joint assembly | 43330-19025 |
| 43330D | Bolt (for front lower ball joint) | 90105-10057 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 94146-71200 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-16030 |
| 48068A | Bolt (for front suspension lower arm) | 90105-12049 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-16030 |
| 48194 | Right camber angle adjustment cam | 48194-16010 · 48194-16011 |
| 48198A | Left camber angle adjustment cam | 48198-16010 · 48198-16011 |
| 48654 | lower arm bushing | 48654-16040 |
