Toyota COROLLA 制动配管和卡箍 — Figure 4708

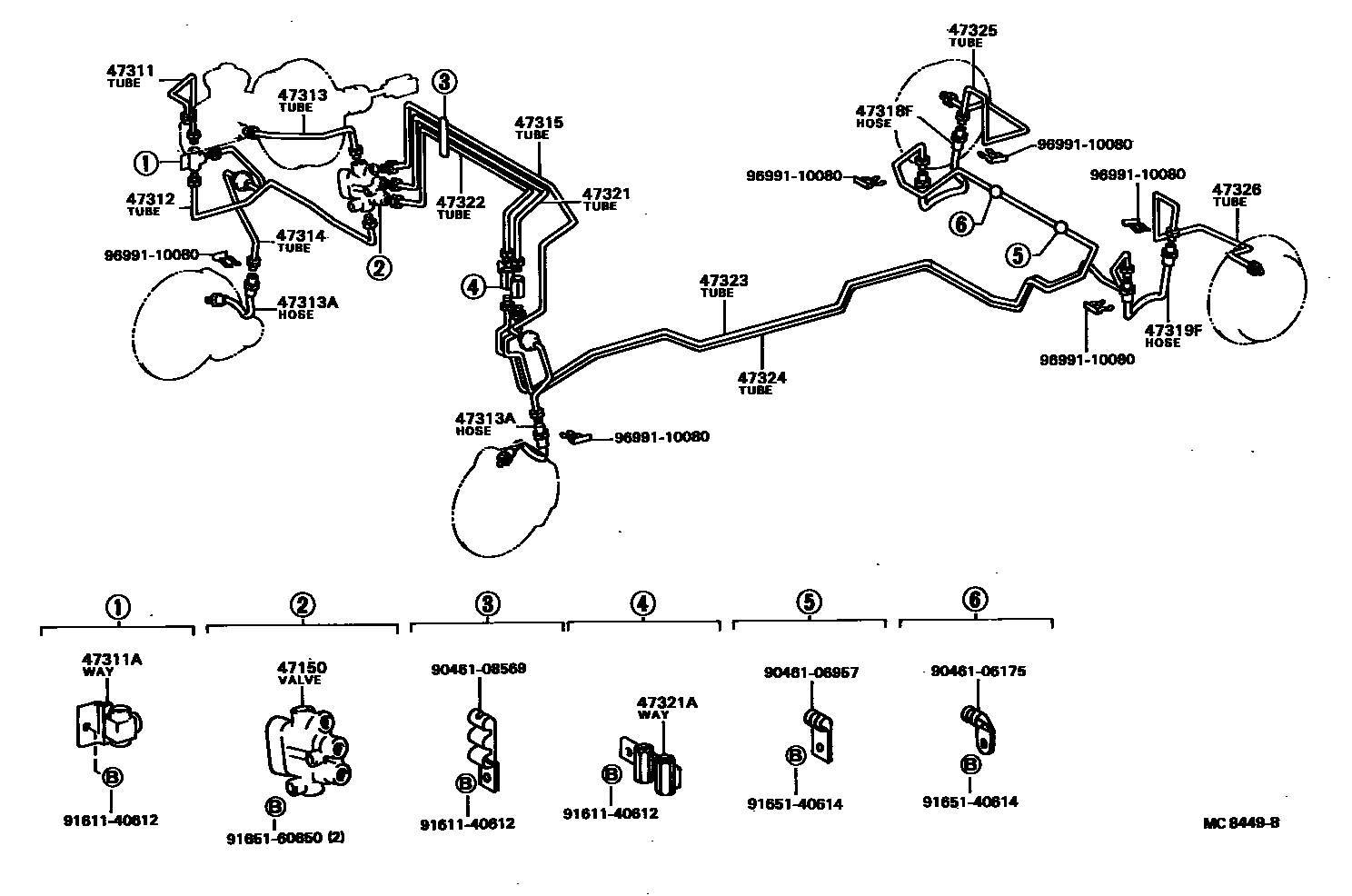

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-16030 · 47150-16040 |
| 47311 | No. 1 front brake pipe | 47311-16040 · 47311-16041 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10004 |
| 47312 | No. 2 front brake pipe | 47312-16040 · 47312-16041 |
| 47313 | No. 3 front brake pipe | 47313-16050 · 47313-16051 |
| 47313A | No. 1 front flexible hose | 90947-02437 · 96940-32805 |
| 47314 | No. 4 front brake pipe | 47314-16040 · 47314-16041 |
| 47315 | No. 5 front brake pipe | 47315-16020 · 47315-16021 |
| 47318F | Right rear flexible hose | 96950-33205 |
| 47319F | Left rear flexible hose | 96950-33205 |
| 47321 | No. 1 rear brake pipe | 47321-16030 · 47321-16031 |
| 47321A | Pipe fitting (for rear brake pipe) | 90412-10096 |
| 47322 | No. 2 rear brake pipe | 47322-16020 · 47322-16021 |
| 47323 | No. 3 rear brake pipe | 47323-16030 · 47323-16031 |
| 47324 | No. 4 rear brake pipe | 47324-16020 · 47324-16021 |
| 47325 | No. 5 rear brake pipe | 47325-16030 · 47325-16031 |
| 47326 | No. 6 rear brake pipe | 47326-16010 · 47326-16011 |
