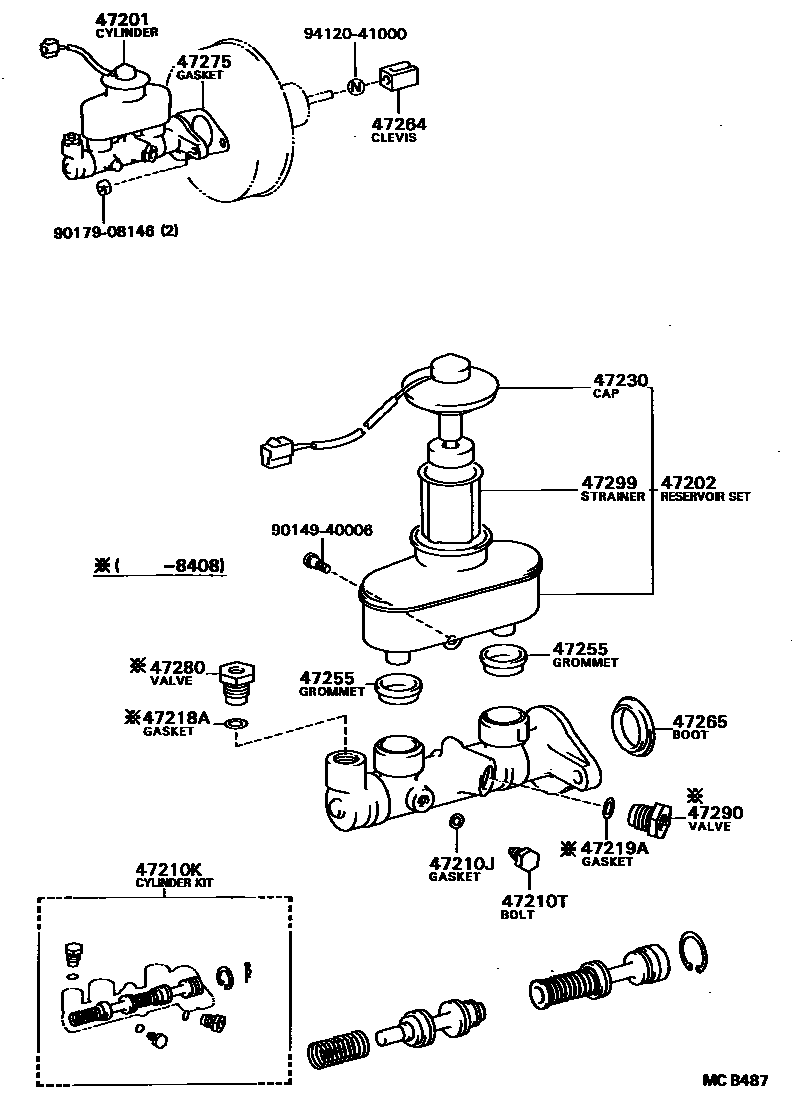

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-16060 · 47201-16100 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-16040 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210K | Brake master cylinder assembly | 04493-16020 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-09253 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-09253 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 84460-12021 |
| 47255 | Master pump reservoir seal | 47255-10010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-10080 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-14010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-30030 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-30030 |
| 47299 | Brake master cylinder reservoir filter | 47299-32010 |
