Toyota COROLLA Brake Pedal & Bracket — Figure 4701

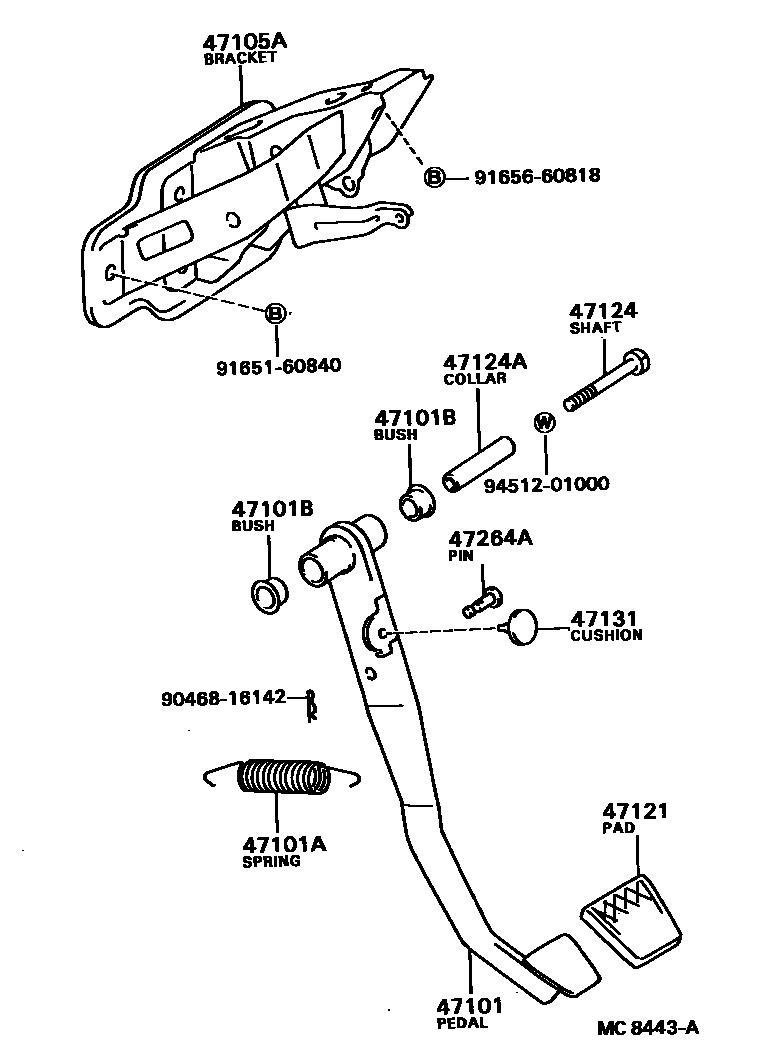

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-16050 · 47101-16051 · 47101-16060 |
| 47101A | Spring (for brake pedal return) | 90506-14002 |
| 47101B | Bushing (for brake pedal) | 90386-13007 · 90386-13192 |
| 47105A | Brake pedal bracket sub-assembly | 55106-16080 · 55106-16081 · 55106-16090 |
| 47121 | brake pedal pad | 31321-12030 · 47121-12020 |
| 47124 | brake pedal shaft | 90101-10081 |
| 47124A | Collar (for brake pedal shaft) | 90387-10027 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47264A | Pin (for push rod) | 90249-08051 |
