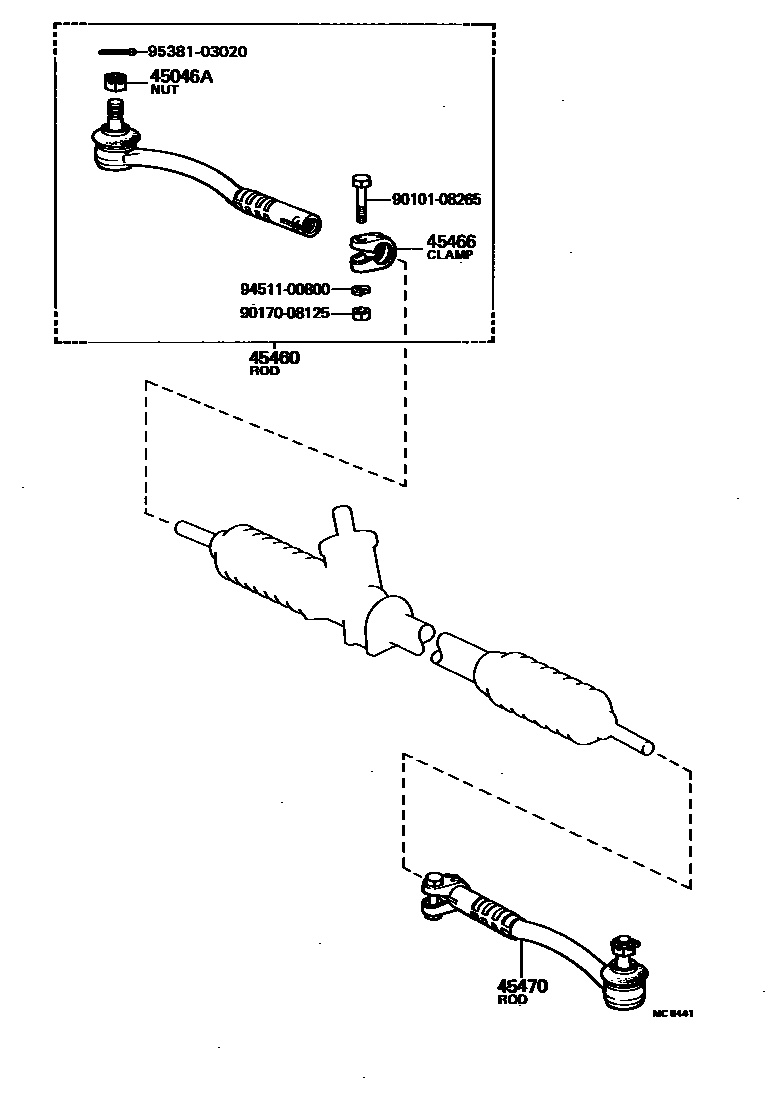

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44535B | No. 1 steering rack dust boot (for power steering) | 45535-16020 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45460 | Right tie rod assembly | 45460-19185 · 45460-19195 |
| 45466 | Tie rod end clamp | 45466-22010 |
| 45470 | Left tie rod assembly | 45470-19035 · 45470-19045 |
