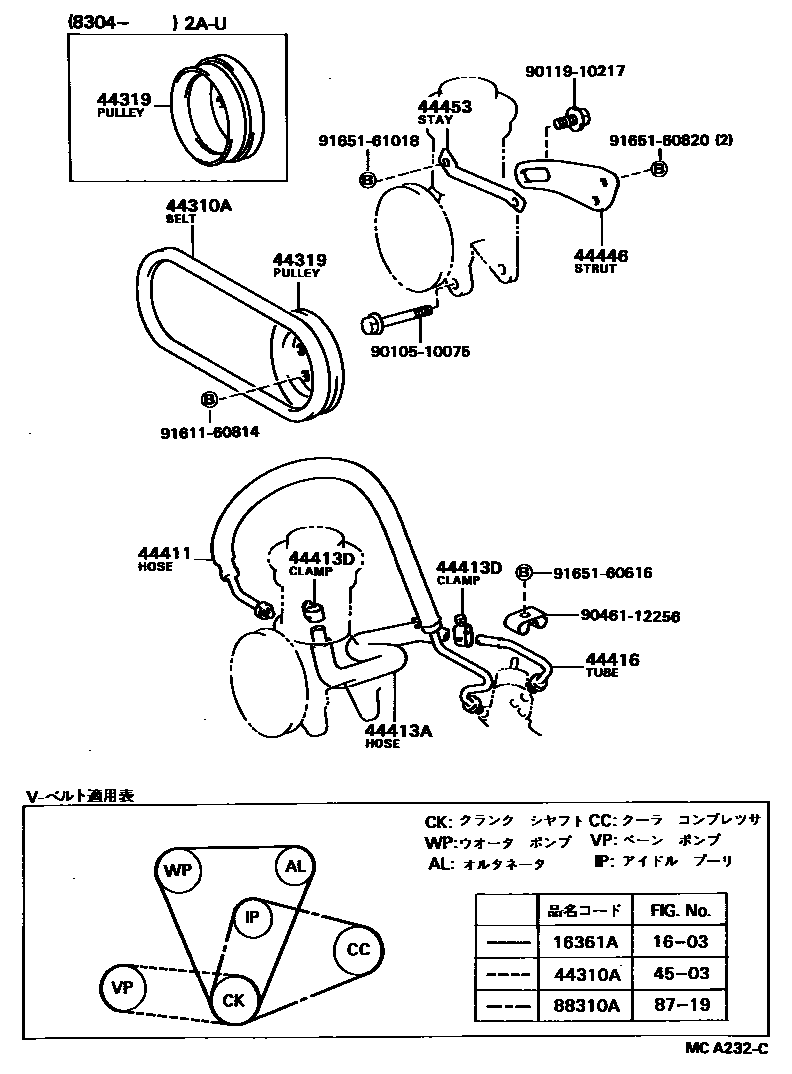

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44310A | V-belt (for vane pump) | 90916-02113 · 90916-02134 |
| 44319 | Vane pump drive pulley | 44319-12011 · 44319-16010 |
| 44411 | pressure supply hose | 44411-16010 · 44411-16011 · 44411-16012 · 44411-16020 |
| 44413A | Hoses (for return pipe outlet) | 44412-16010 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-16010 |
| 44446 | Adjust the stand | 44446-16010 |
| 44453 | Pump front stay | 44453-16010 · 44453-16011 |
