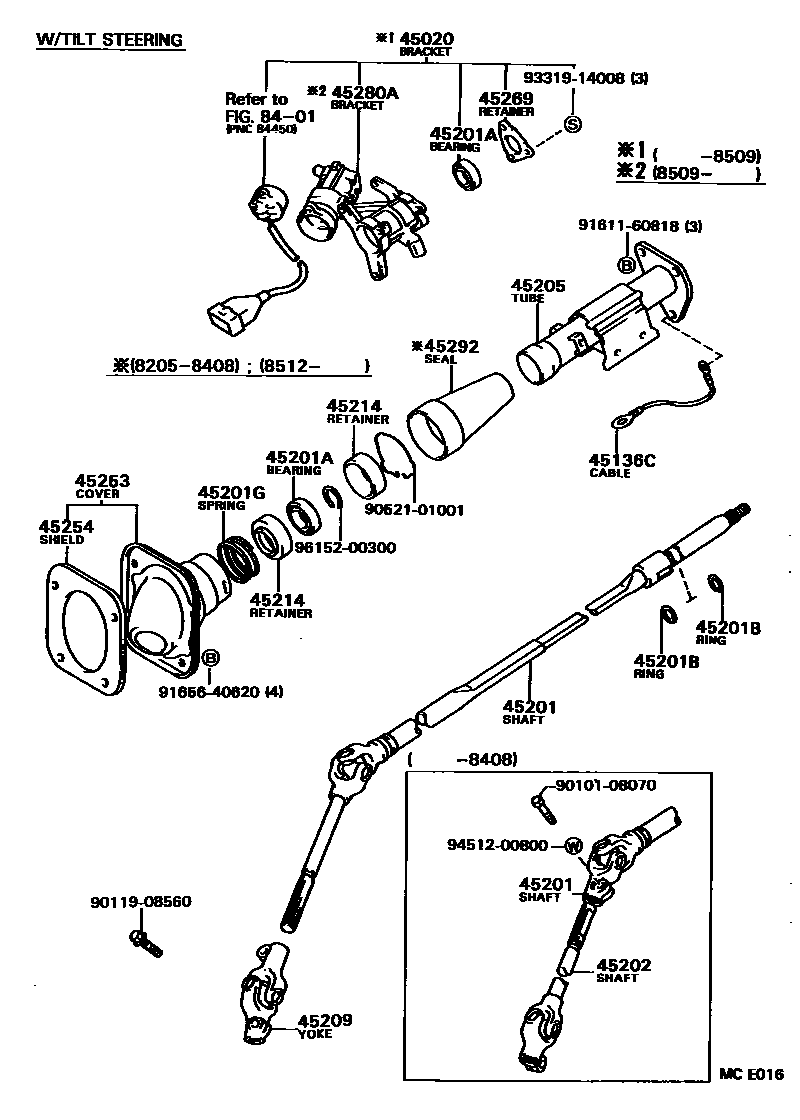

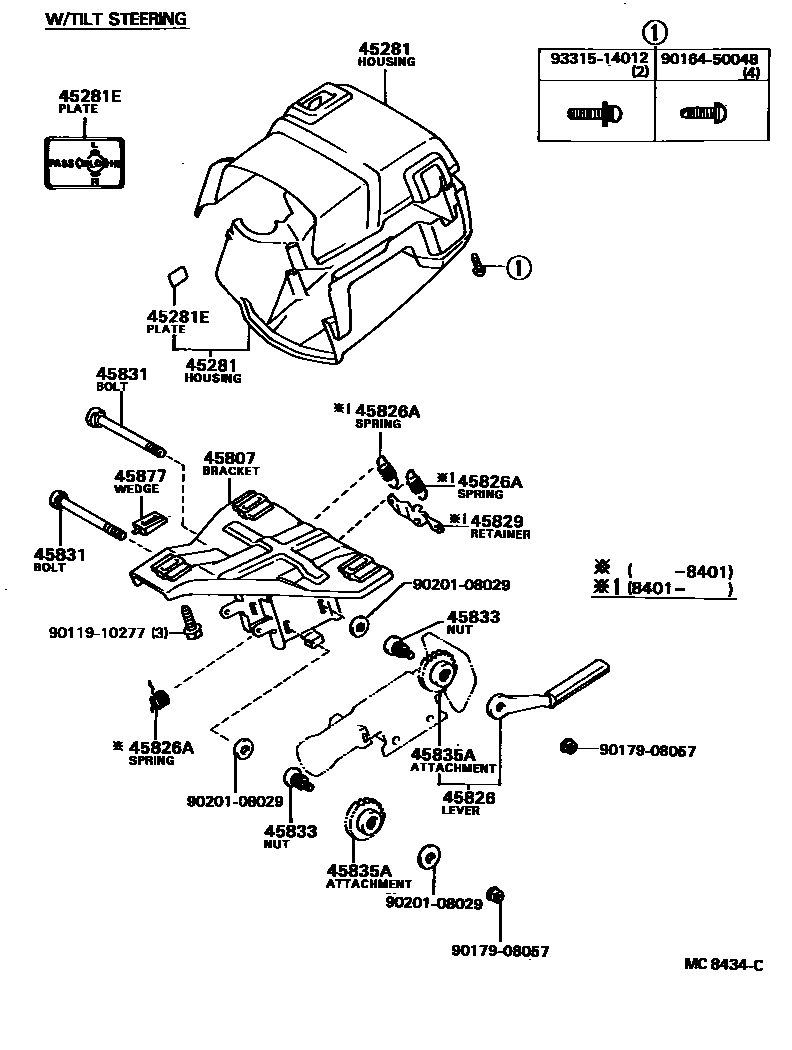

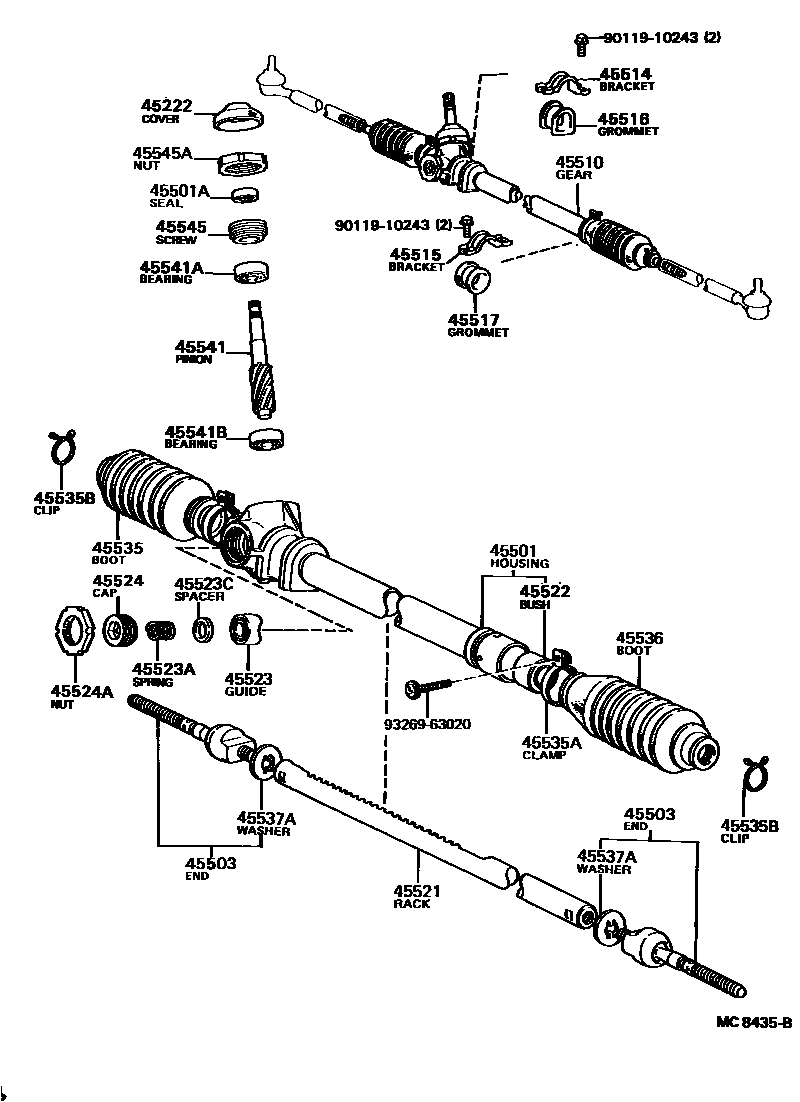

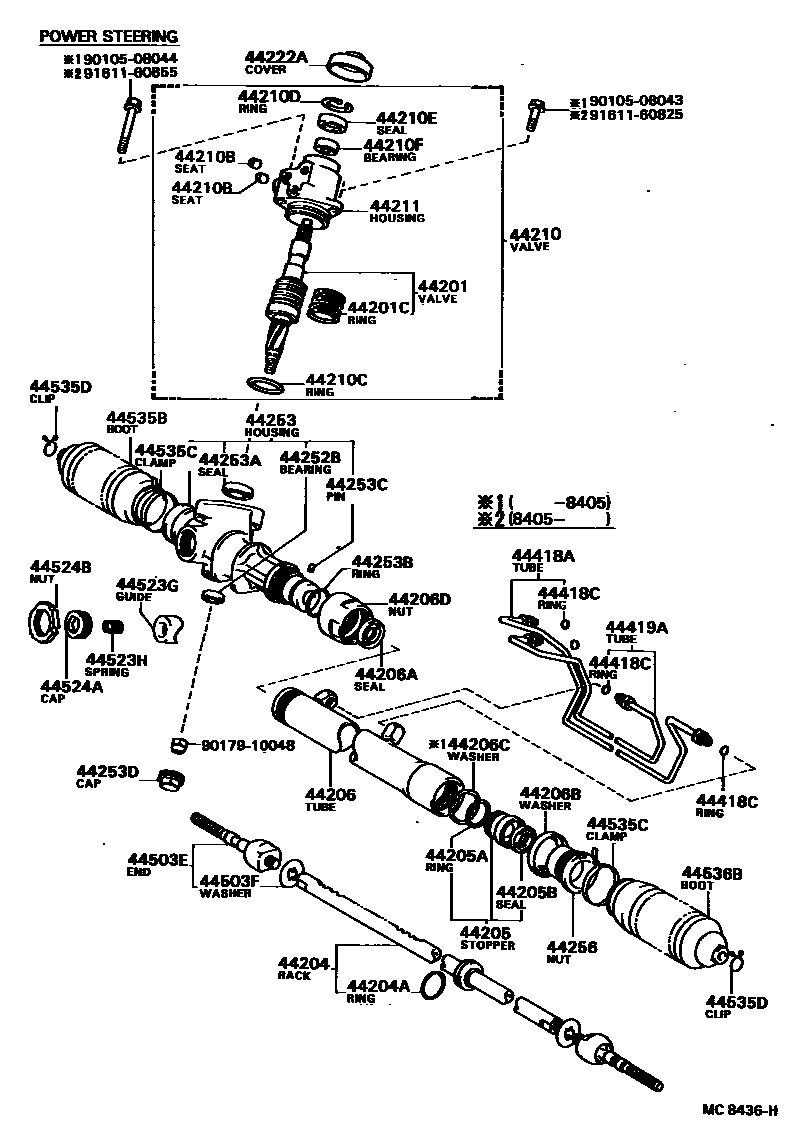

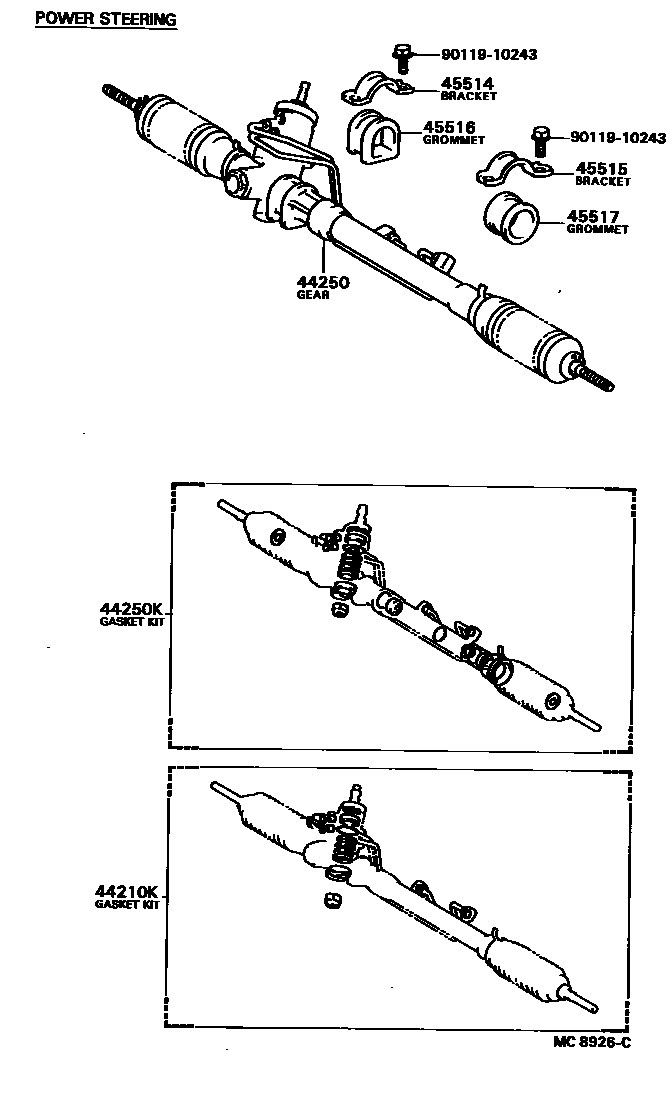

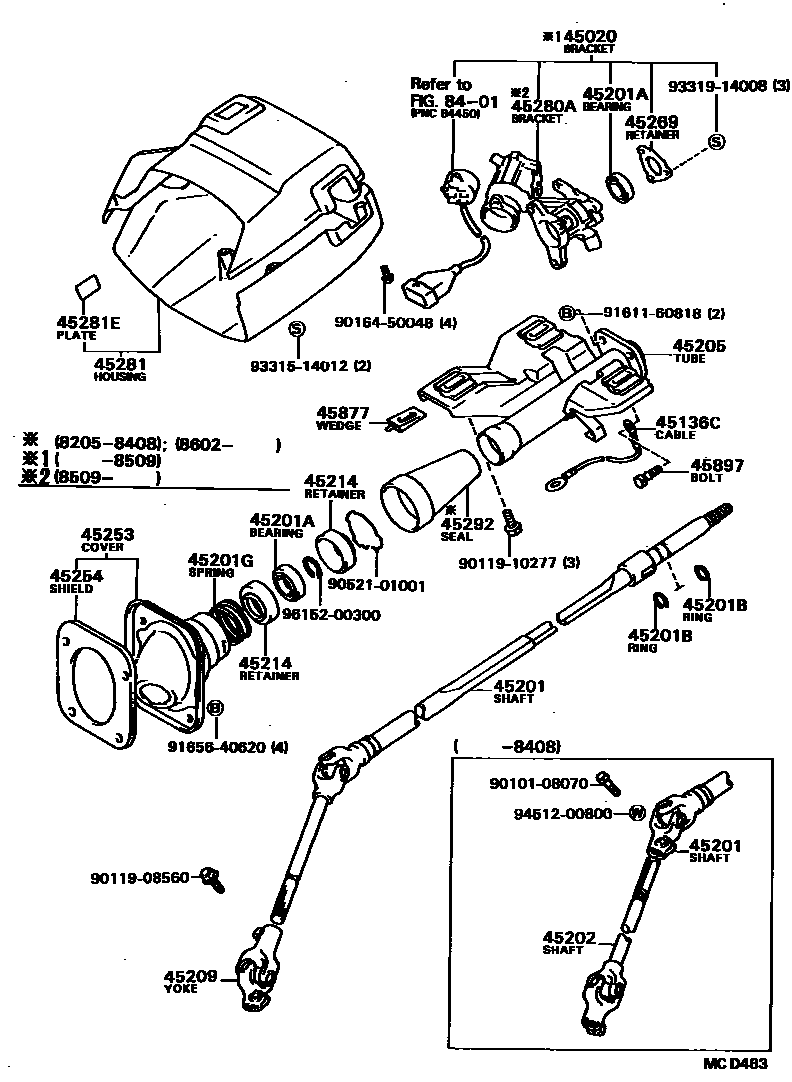

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 6 images and 93 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44201 | Power steering control valve sub-assembly | 44201-16010 |
| 44201C | Ring (for power steering control valve) | 90562-33001 |
| 44204 | Power steering rack sub-assembly | 44204-16010 |
| 44204A | Ring (for steering rack piston) | 90562-34002 |
| 44205 | Cylinder end stopper sub-assembly | 44205-16010 · 44205-16011 |
| 44205A | O-ring (for cylinder end stopper) | 90301-33004 |
| 44205B | Oil seal (for cylinder end stop) | 90311-24005 |
| 44206 | Power steering cylinder barrel sub-assembly | 44206-16010 |
| 44206A | Oil seal (for power steering cylinder) | 90311-24002 · 90311-24004 |
| 44206B | Jaw washer (for power steering cylinder) | 90214-47001 |
| 44206C | Wave Washer (for power steering cylinder) | 90206-39001 |
| 44206D | Nut (for power steering cylinder assembly) | 90179-45001 |
| 44210 | Power steering control valve assembly | 44210-16010 · 44210-16011 |
| 44210B | Connector seat (for power steering control valve) | 90410-07003 |
| 44210C | O-ring (for power steering control valve) | 90301-42001 |
| 44210D | Bore snap ring (for power steering control valve) | 96151-03200 |
| 44210E | Oil seal (for power steering control valve) | 90311-19005 |
| 44210F | Bearings (for power steering control valve) | 90364-19005 |
| 44210K | Power steering control valve overhaul gasket assembly | 04455-16010 |
| 44211 | control valve housing | 44211-16010 · 44211-16011 |
| 44222A | Dust cover (for power steering gear) | 45222-16020 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-16010 · 44250-16011 |
| 44250K | Power steering gear gasket assembly (for rack and pinion) | 04445-16010 · 04445-16020 |
| 44252B | Bearings (for power steering pinion) | 90363-12006 |
| 44253 | Power steering rack housing | 44203-16010 |
| 44253A | Oil seal (for power steering rack housing) | 90310-23004 |
| 44253B | O-ring (for power steering rack housing) | 90301-33004 |
| 44253C | Pin (for power steering rack housing) | 90256-04002 |
| 44253D | Power steering rack housing cover | 44283-16010 |
| 44256 | Cylinder end stopper nut | 44275-16010 |
| 44418A | Right steering pressure oil pipe | 44418-16010 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-05005 |
| 44419A | Left steering pressure oil pipe | 44419-16010 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-19025 |
| 44503F | Claw washer (for power steering rack end) | 90214-14002 |
| 44523G | Rack guide block (for power steering) | 45523-16040 |
| 44523H | Spring (for power steering rack guide) | 90501-20045 |
| 44524A | Rack guide spring cover (for power steering) | 45524-16030 |
| 44524B | Nut (for power steering rack guide cover) | 90179-36002 |
| 44535C | Clamp (for power steering rack dust boot) | 90949-01027 |
| 44535D | Catch (for power steering rack dust boot) | 90467-18003 |
| 44536B | No. 2 steering rack dust boot (for power steering) | 45535-16020 |
| 45020 | Steering column upper bracket assembly with switch | 45020-16020 |
| 45136C | Connecting cable (for speaker ground) | 90980-07204 |
| 45201 | Steering spindle sub-assembly | 45210-16040 · 45210-16050 · 45210-16060 |
| 45201A | Bearings (for steering spindle) | 90363-18003 · 90363-18038 · 90363-30015 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201G | Compression spring (for steering spindle) | 90501-32003 |
| 45202 | Steering intermediate shaft sub-assembly | 45202-16030 · 45202-16050 |
| 45205 | Steering column tube sub-assembly | 45205-16030 · 45205-16031 · 45205-16040 |
| 45209 | Steering slip fork sub-assembly | 45209-10020 · 45209-16010 |
| 45214 | Spindle spring seat ring | 45214-10010 |
| 45222 | Steering gear dust cover | 45222-10030 |
| 45253 | Steering column hole cover | 45025-16030 · 45025-16050 |
| 45254 | steering column escutcheon | 45254-16020 |
| 45269 | Spindle bearing retainer | 45269-35010 |
| 45280A | Steering column upper bracket assembly | 45280-16010 |
| 45281E | Safety warning nameplate | 45283-12010 |
| 45292 | Dust-proof sealing ring under spindle | 45292-10010 |
| 45501 | Steering rack housing sub-assembly | 45501-16131 · 45501-16132 · 45501-16210 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 |
| 45503 | Steering rack end sub-assembly | 45503-19025 |
| 45510 | Steering gear assembly | 45510-16070 · 45510-16071 |
| 45514 | No. 1 steering rack housing bracket | 45514-16020 |
| 45515 | No. 2 steering rack housing bracket | 45515-16020 · 45515-16030 |
| 45516 | No. 1 steering rack housing seal | 45516-16020 |
| 45517 | No. 2 steering rack housing seal | 45517-10010 · 45517-16030 |
| 45521 | steering rack | 45521-16110 · 45521-16130 |
| 45522 | steering rack bushing | 45522-10021 · 45522-10030 · 45522-17010 |
| 45523 | Rack guide block (for steering gear) | 45523-16011 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23007 |
| 45523C | Spacer (for rack guide block) | 90560-23003 |
| 45524 | Steering rack guide block spring cover | 45524-16010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36001 |
| 45535 | No. 1 steering rack dust cover | 45535-12011 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10273 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45536-12011 |
| 45537A | Claw washer (for steering rack end lock) | 90214-14002 |
| 45541 | steering pinion | 45541-16070 · 45541-16071 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15003 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13001 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
| 45807 | Steering column upper bracket sub-assembly | 45082-16010 · 45082-16011 · 45082-16020 |
| 45826 | Steering tilt adjustment lever | 45804-16010 · 45804-16011 · 45804-16012 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90506-14045 · 90508-29014 |
| 45829 | Tilt-adjustable steering return spring seat | 45829-16020 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-16010 · 45832-16010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-16010 · 45834-16010 |
| 45835A | Tilt adjustment lever serrated connector | 45835-16010 · 45835-16011 |
| 45877 | Caster angle adjustment wedge (used to secure the steering column tube) | 45877-12010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
