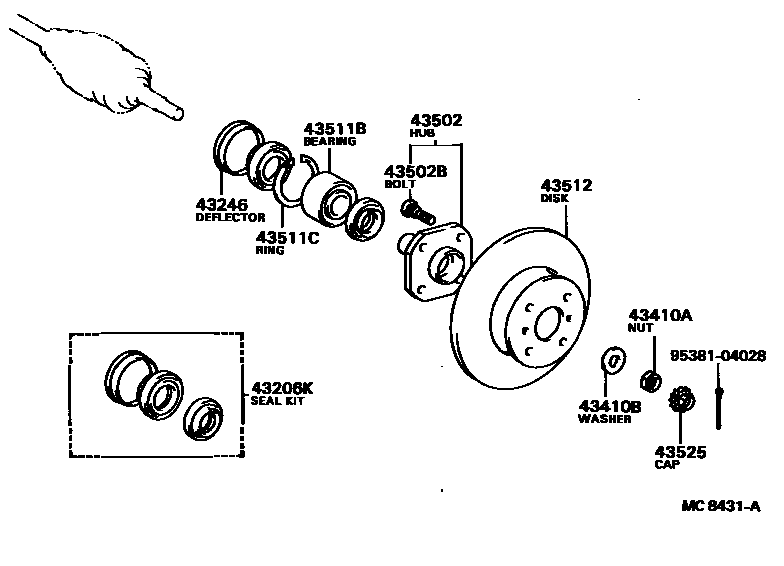

Toyota COROLLA Front Axle Hub — Figure 4303
Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43206K | Front axle oil seal assembly | 04422-16020 |
| 43246 | No. 1 front wheel bearing dust cover | 43246-16020 |
| 43410A | Nuts (for securing axle hubs and driveshafts) | 90170-19001 |
| 43410B | Washers (for securing axle hubs and driveshafts) | 90201-20006 · 90201-20012 |
| 43502 | Front axle hub sub-assembly | 43502-16020 |
| 43502B | Hub bolts (for front axle) | 90942-02047 |
| 43511B | Bearings (for front axle hub) | 90363-35016 |
| 43511C | Hole snap ring (for front axle hub) | 90521-77001 |
| 43512 | front brake disc | 43512-16030 · 43512-16031 |
| 43525 | Front wheel adjustment lock cover | 43525-16010 |
