Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 1 images and 18 PNC and OE references.

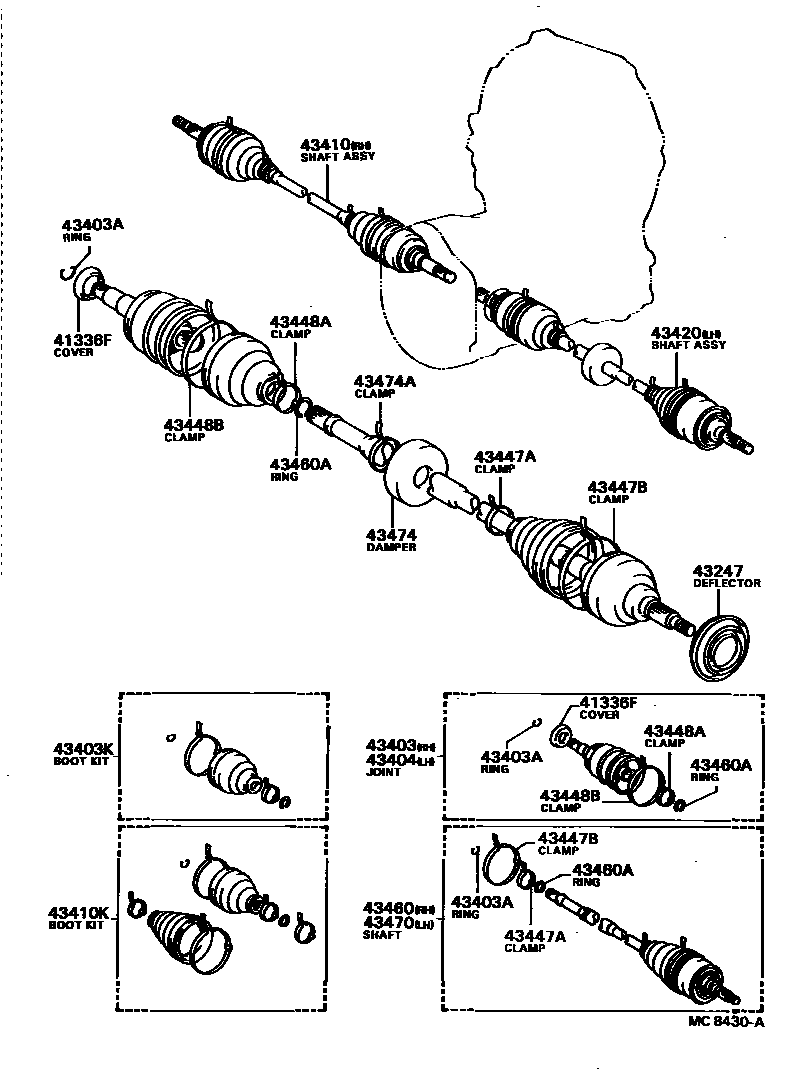

Toyota COROLLA Front Drive Shaft EPC diagram — MC8430A
Front Drive Shaft — MC8430A (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
41336FDust cover (for front axle inner universal joint assembly)41336-16010
43247No. 2 front wheel bearing dust cover43247-16020
43403Right front axle inner universal joint assembly43403-19015
43403AShaft snap ring (used to secure the front axle inner universal joint assembly)90521-23001
43403KFront drive shaft inner universal joint fixed dust boot assembly04438-16011
43404Left front axle inner universal joint assembly43403-19015
43410Right front driveshaft assembly43410-16040 · 43410-16042
43410KFront drive shaft dust boot assembly04438-16022 · 04438-16023
43420Left front drive shaft assembly43420-16040 · 43420-16042
43447AClamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle)90463-04020
43447BClamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle)90463-04022
43448AClamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle)90463-04020
43448BNo. 2 clip (used to fix the universal joint dust cover on the inside of the front axle)90463-04021
43460Right front outer drive universal joint shaft assembly43460-19025 · 43460-19027
43460ASnap ring (for front drive shaft outer universal joint)90520-22001
43470Left front outer drive universal joint shaft assembly43470-19025 · 43470-19027
43474drive shaft damper43474-16010
43474AClamp (for securing driveshaft damper)90463-04020
