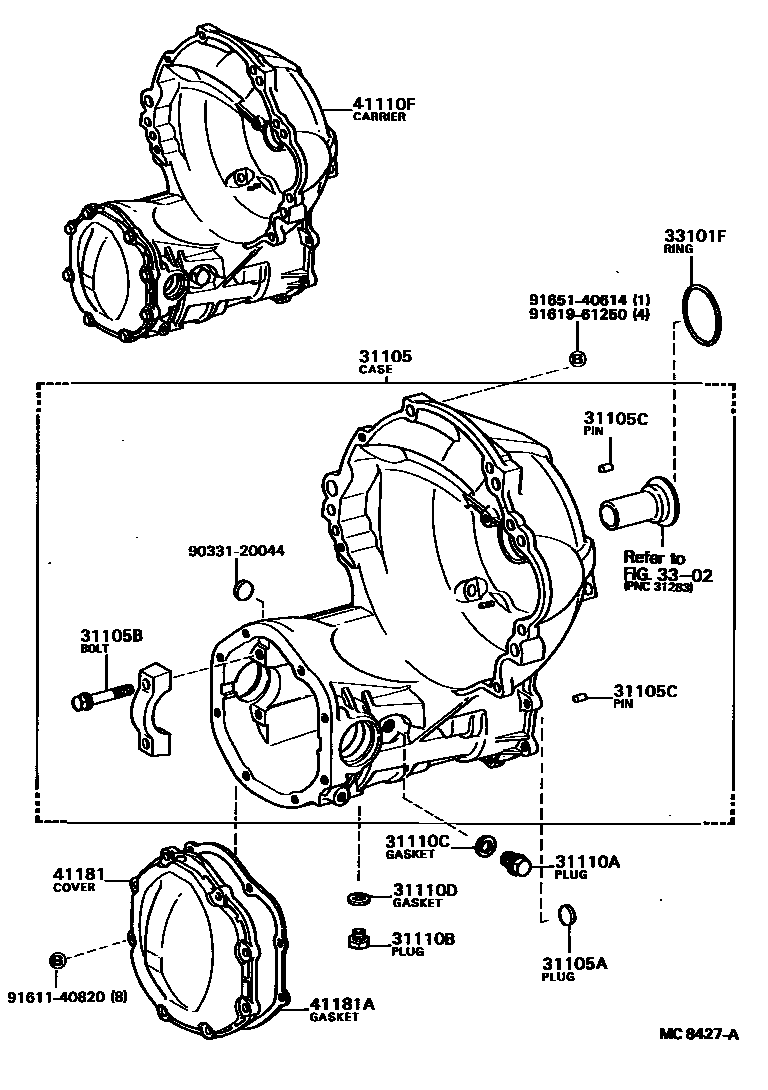

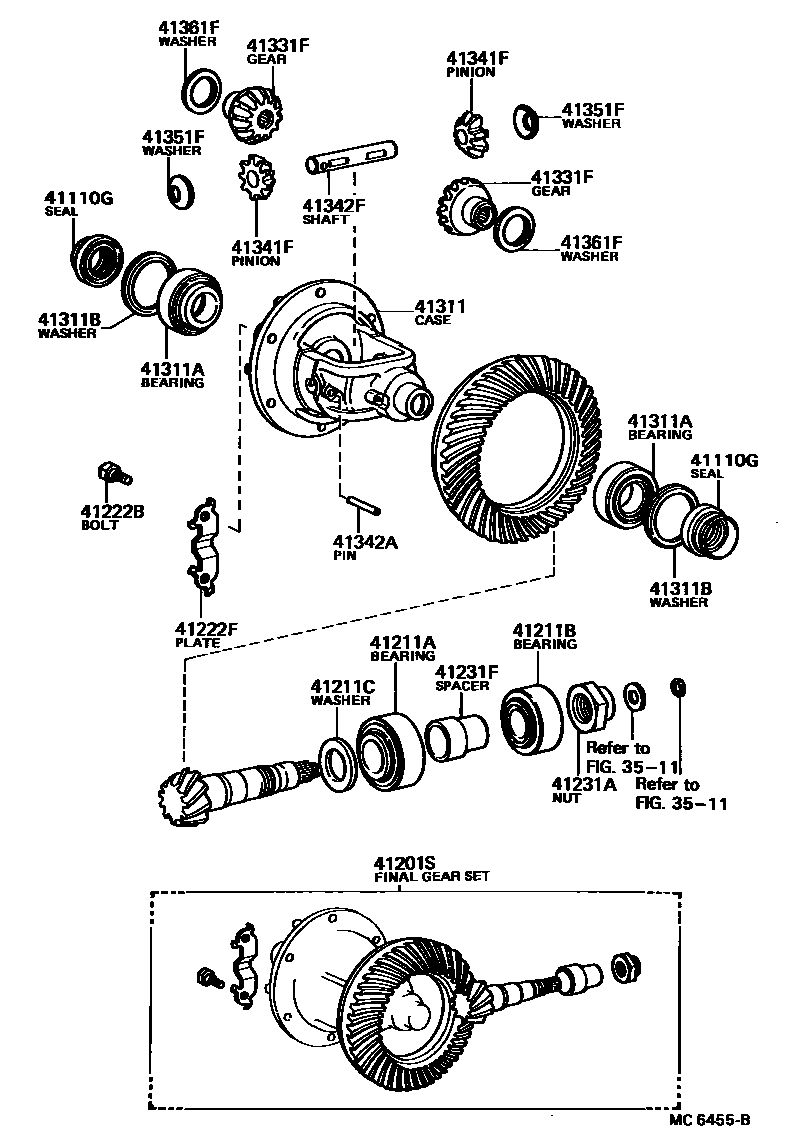

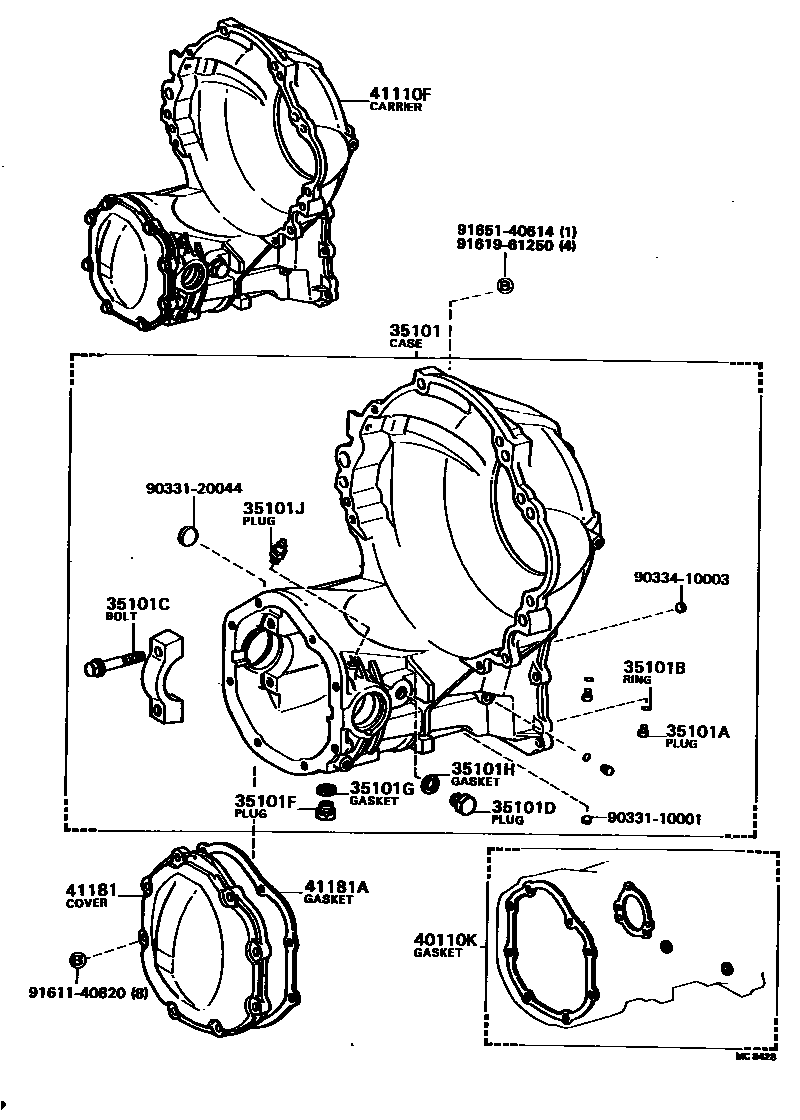

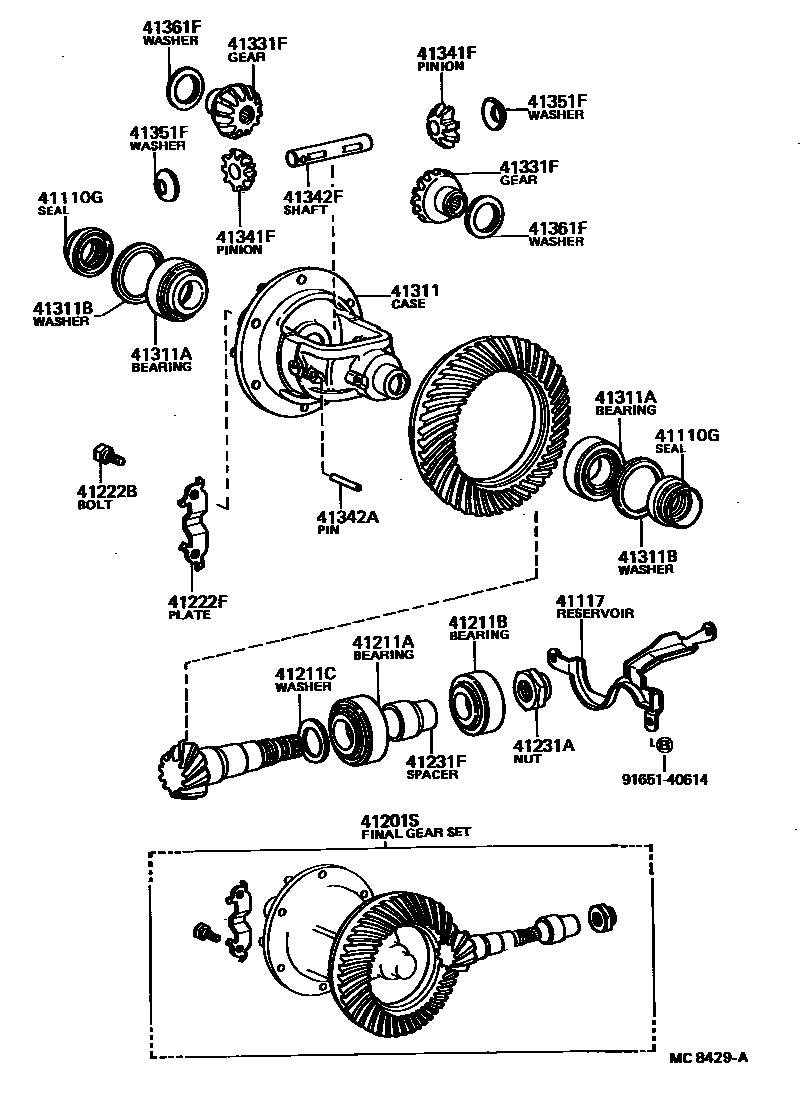

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 4 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-16011 · 31105-16012 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-29001 |
| 31105B | Hexagonal bolts (used to secure the differential bearing cap) | 90105-10008 |
| 31105C | Direct sales (for transmission axle housing) | 90250-10232 |
| 31110A | Screw plug (for differential oil filler port) | 90341-18006 |
| 31110B | Screw plug (for differential drain port) | 90341-18057 |
| 31110C | Gasket (for differential oil filler port) | 12157-10010 |
| 31110D | Gasket (for differential drain port) | 12157-10010 |
| 33101F | O-ring (for front input shaft) | 90301-54002 |
| 35101 | Torque converter and differential housing sub-assembly | 35101-16010 · 35101-16011 |
| 35101A | Straight thread plug (for torque converter and differential case) | 90334-07006 |
| 35101B | O-ring (for torque converter and differential housing) | 90301-04002 |
| 35101C | Hexagonal bolts (used to secure the differential bearing cap) | 90105-10008 |
| 35101D | Screw plug (for differential oil filler port) | 90341-18006 |
| 35101F | Drain plug sub-assembly (for automatic transmission) | 90341-18057 |
| 35101G | Drain plug gasket (for automatic transmission) | 12157-10010 |
| 35101H | Gasket (for differential oil filler port) | 12157-10010 |
| 35101J | Breather plug (for automatic transmission) | 90930-03077 |
| 40110K | Differential case gasket assembly | 04412-16010 |
| 41110F | Front differential case assembly | 41110-16011 · 41110-16021 · 41110-16050 · 41110-16070 · 41110-16080 |
| 41110G | Oil seal (for differential side) | 90311-32006 |
| 41117 | Differential oil reservoir | 41117-16010 |
| 41181 | front differential case cover | 41181-16020 |
| 41181A | Front differential case cover gasket | 41182-16010 |
| 41201S | Front differential final drive gear assembly | 41201-19286 · 41201-19296 · 41201-19335 · 41201-19365 · 41201-19435 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90368-33001 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90368-28002 |
| 41211C | differential ring gear | 90201-34001 · 90201-34002 · 90201-34003 · 90201-34004 · 90201-34005 · 90201-34006 · 90201-34007 · 90201-34008 · 90201-34009 · 90201-34010 · 90201-34011 · 90201-34012 · 90201-34013 · 90201-34014 · 90201-34015 · 90201-34016 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11365 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-16010 |
| 41231A | Drive pinion lock nut | 90179-28001 |
| 41231F | Front differential drive pinion bearing spacer | 41231-16010 |
| 41311 | front differential case | 41311-16011 |
| 41311A | Bearings (for front differential housing) | 90366-35002 |
| 41311B | Flat washer (for front differential case) | 90201-40001 · 90201-40002 · 90201-40003 · 90201-40004 · 90201-40005 · 90201-40006 · 90201-40007 · 90201-40008 · 90201-40009 · 90201-40010 · 90201-40011 · 90201-40012 · 90201-40013 · 90201-40014 · 90201-40016 · 90201-40017 · 90201-40018 · 90201-40019 · 90201-40020 · 90201-40021 · 90201-40022 · 90201-40023 · 90201-40024 |
| 41331F | Front differential side gear | 41331-16010 |
| 41341F | Front differential planetary gear | 41341-20011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-04053 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10030 · 41342-16010 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12010 · 41361-12020 · 41361-12030 · 41361-12040 · 41361-12050 · 41361-12060 · 41361-16010 |
