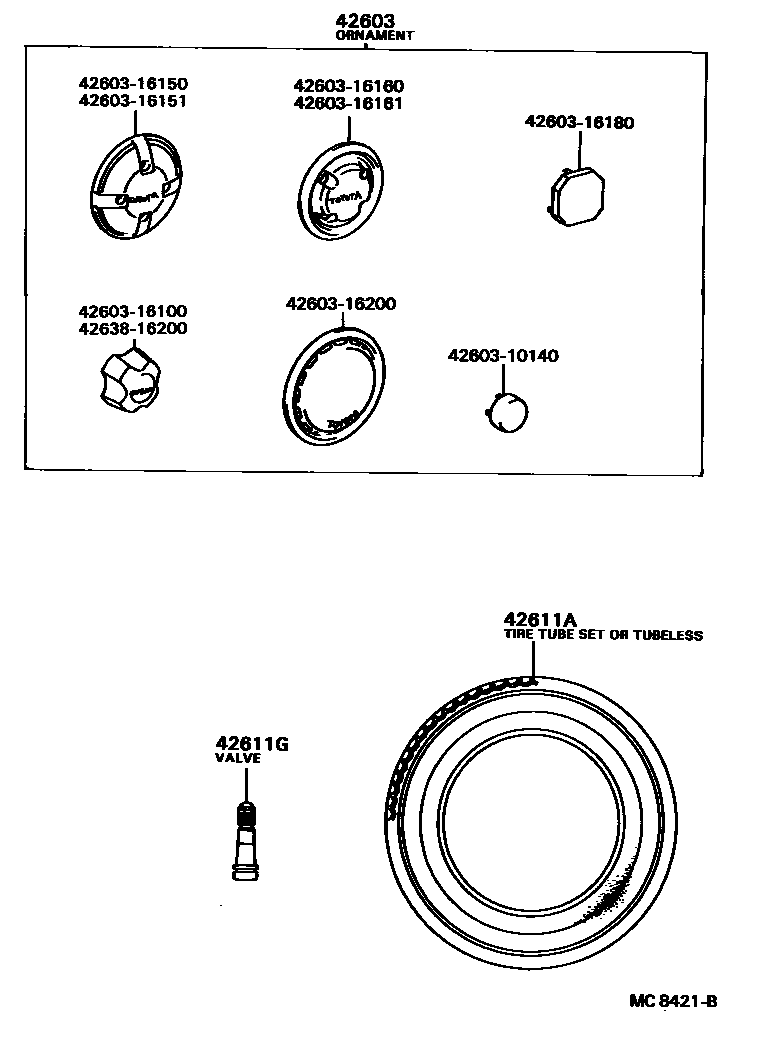

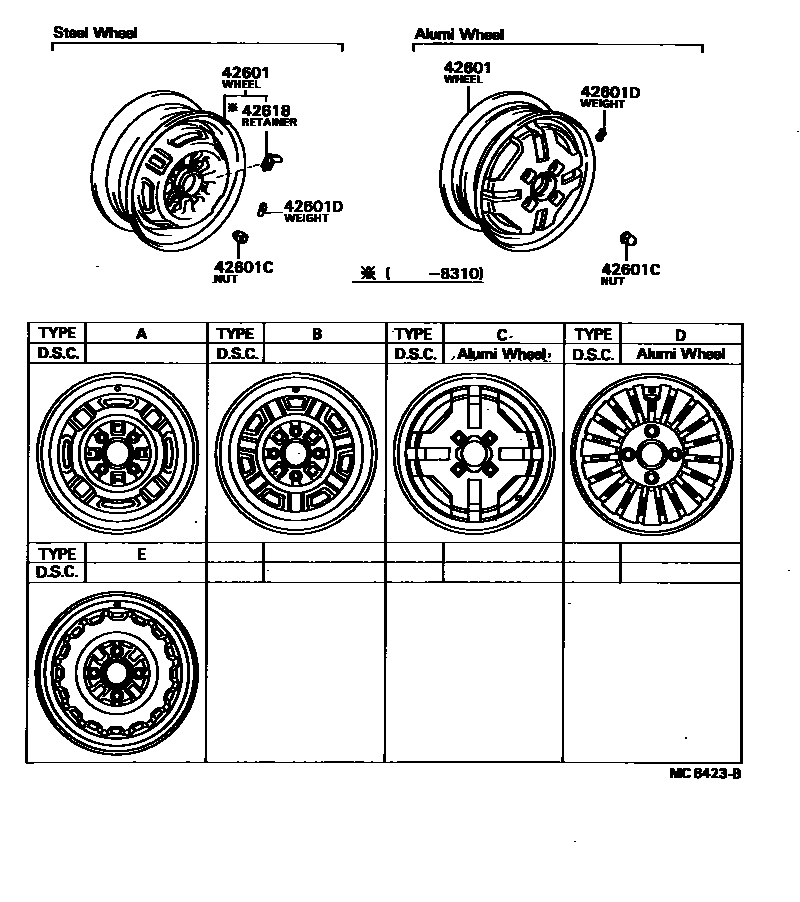

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42601-16020 · 42601-16080 · 42611-10200 · 42611-10240 · 42611-16110 · 42611-16200 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01027 · 90942-01033 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03110 · 90942-03111 · 90942-03112 · 90942-03113 · 90942-03114 · 90942-03115 · 90942-03116 · 90942-03117 · 90942-03118 · 90942-03119 · 90942-03120 · 90942-03121 · 90942-03122 · 90942-03123 · 90942-03124 · 90942-03125 · 90942-03126 · 90942-03127 · 90942-03128 · 90942-03129 · 90942-03130 · 90942-03131 · 90942-03132 · 90942-03133 · 90942-03163 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-10140 · 42603-16100 · 42603-16150 · 42603-16151 · 42603-16160 · 42603-16161 · 42603-16180 · 42603-16200 · 42603-16201 · 42638-16200 |
| 42611A | Tubeless tire assembly or tubeless tire | 42652-10160 · 42652-16120 · 42652-16130 · 42652-16220 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42618 | wheel cover fixings | 42618-32010 |
