Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

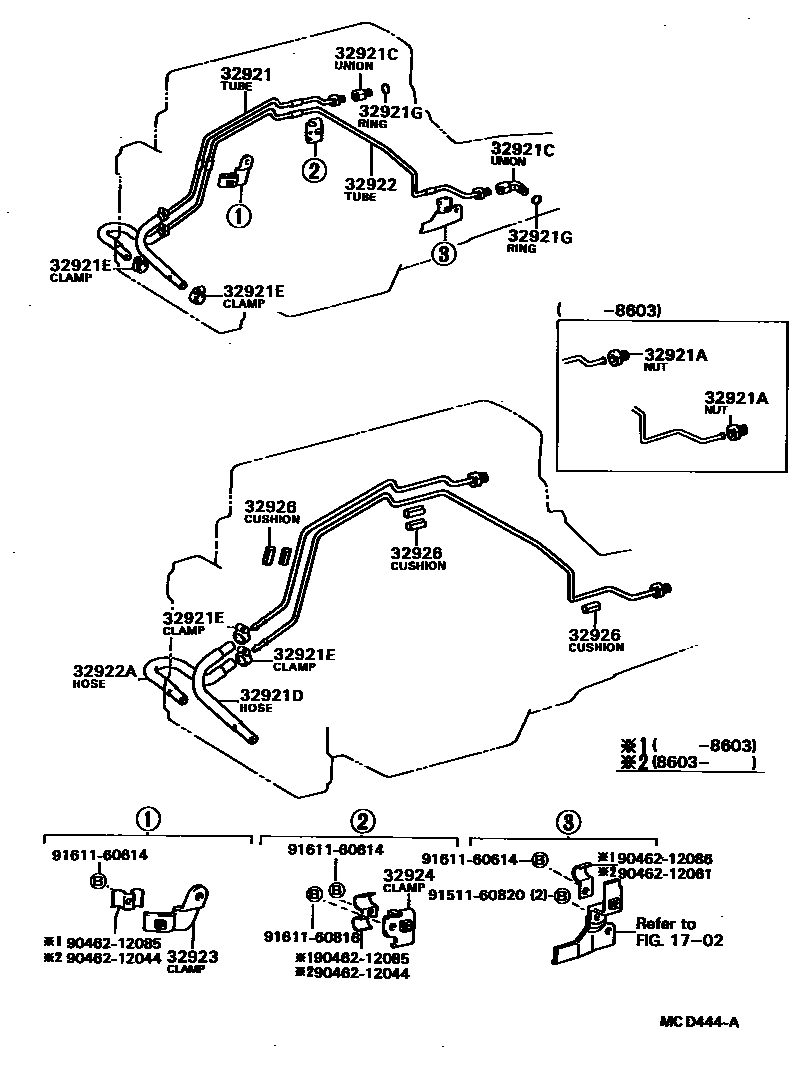

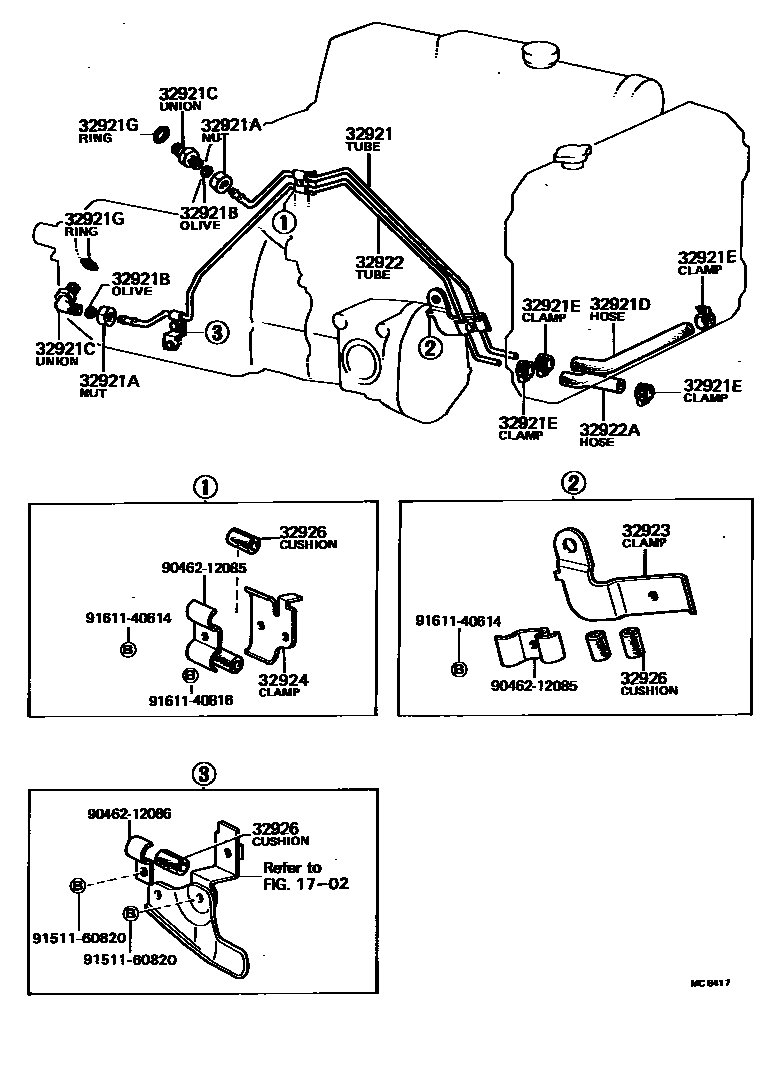

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32904-16021 · 32904-16022 · 32904-16023 · 32904-16060 · 32921-16020 |
| 32921A | Union nut (for transmission oil cooler tube) | 90402-13041 · 90402-14004 |
| 32921B | Olive-shaped piece (for transmission oil cooler pipe) | 96395-71400 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13003 · 90404-14007 · 90404-16021 · 90407-13005 · 90407-14003 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-16010 · 32941-16011 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-14085 · 90460-18002 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32905-16031 · 32905-16032 · 32905-16070 · 32922-16020 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32941-16010 · 32941-16011 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-16010 · 32923-16020 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-16010 · 32924-16020 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 · 32926-30020 |
