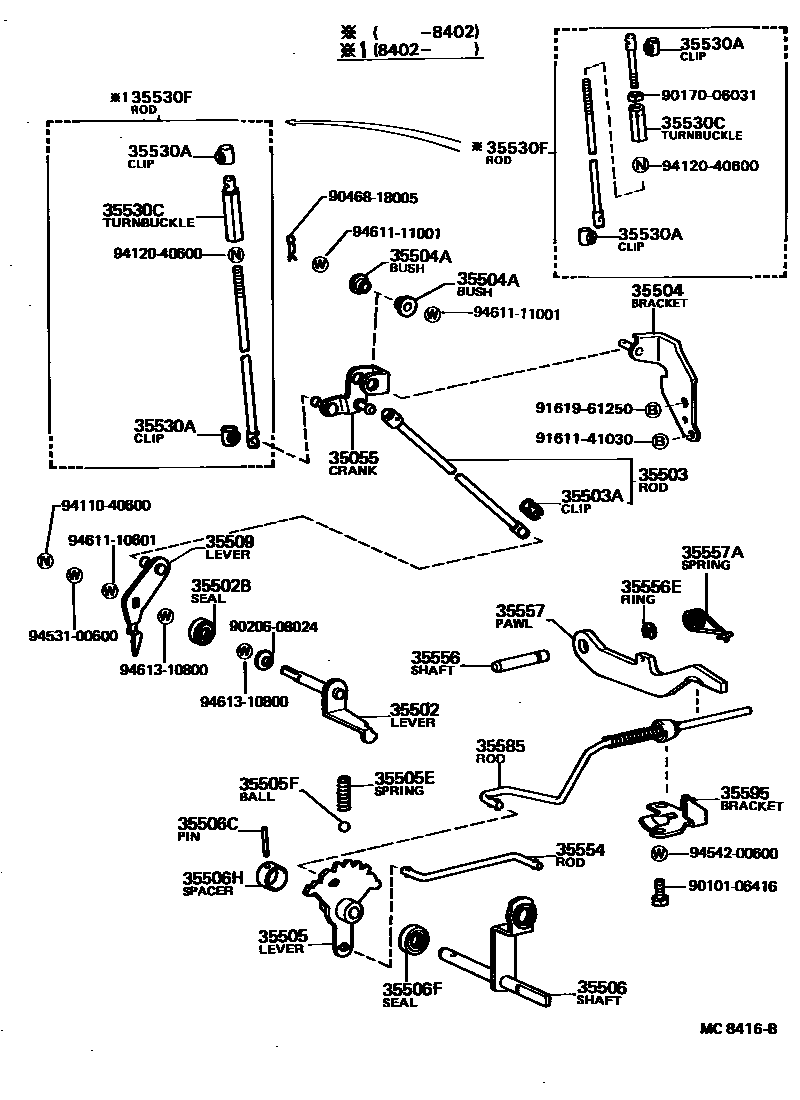

Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35055 | Throttle valve connecting rod right angle lever sub-assembly | 35055-16010 |
| 35502 | Throttle valve stem sub-assembly | 35502-16010 · 35502-16011 |
| 35502B | K-type oil seal (for throttle stem) | 90311-08002 · 90311-08044 |
| 35503 | Throttle valve stem first gear connecting rod sub-assembly | 35503-16010 |
| 35503A | Clamp (for throttle stem connecting rod) | 78197-10010 |
| 35504 | No. 1 throttle valve right-angle lever bracket sub-assembly | 35504-16030 |
| 35504A | Bushing (for throttle right angle lever bracket) | 90386-10138 |
| 35505 | Manual valve stem sub-assembly | 35505-16011 |
| 35505E | Compression spring (for manual valve stem) | 90501-14042 |
| 35505F | Ball (for manual valve stem) | 90360-08009 |
| 35506 | Manual valve stem shaft sub-assembly | 35506-16011 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-03004 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-10082 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-19004 · 90560-20006 |
| 35509 | Throttle valve outer rod sub-assembly | 35509-16010 |
| 35530A | Accelerator pedal ball joint clip | 78197-10010 · 90468-05064 |
| 35530C | No. 2 throttle stem connecting rod turnbuckle | 35542-16010 · 35542-30010 · 90587-06001 |
| 35530F | Throttle valve rod connecting rod assembly | 35530-16010 · 35530-16011 · 35530-16012 |
| 35554 | Manual valve connecting rod | 35554-16010 |
| 35556 | Parking lock pawl shaft | 35556-22010 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-16010 · 35557-35010 |
| 35557A | Torsion spring (for parking pawl) | 90508-25001 |
| 35585 | Parking lock lever | 35501-16013 |
| 35595 | Parking lock pawl bracket | 35595-16010 · 35595-16011 |
