Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

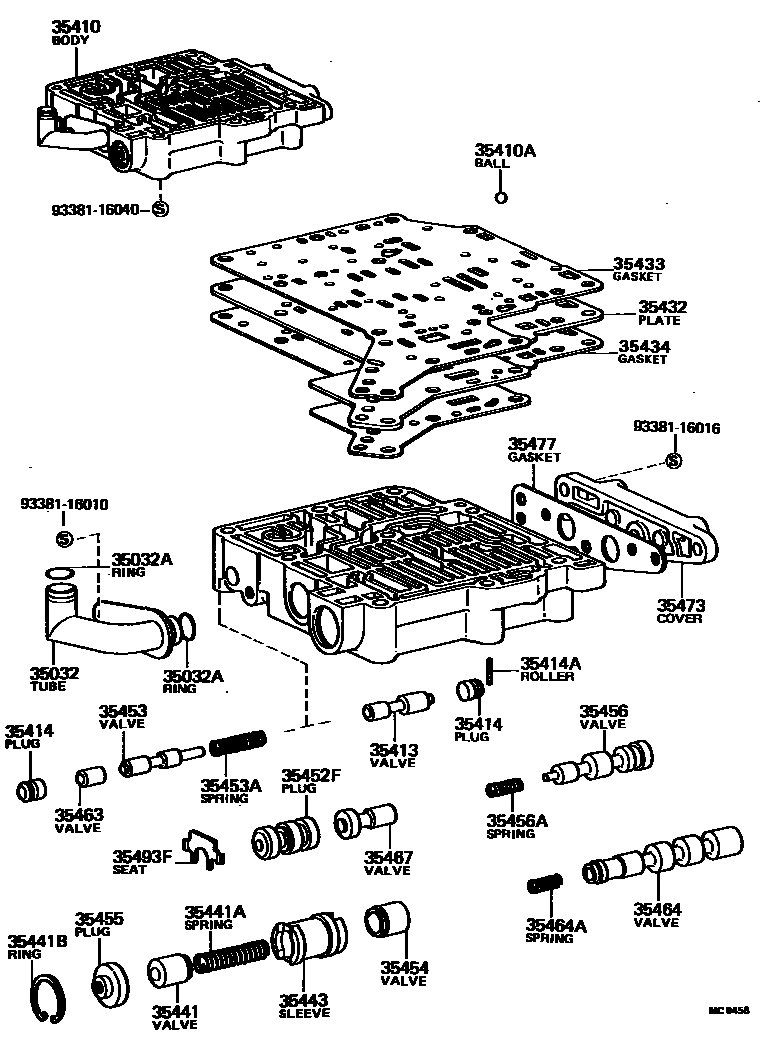

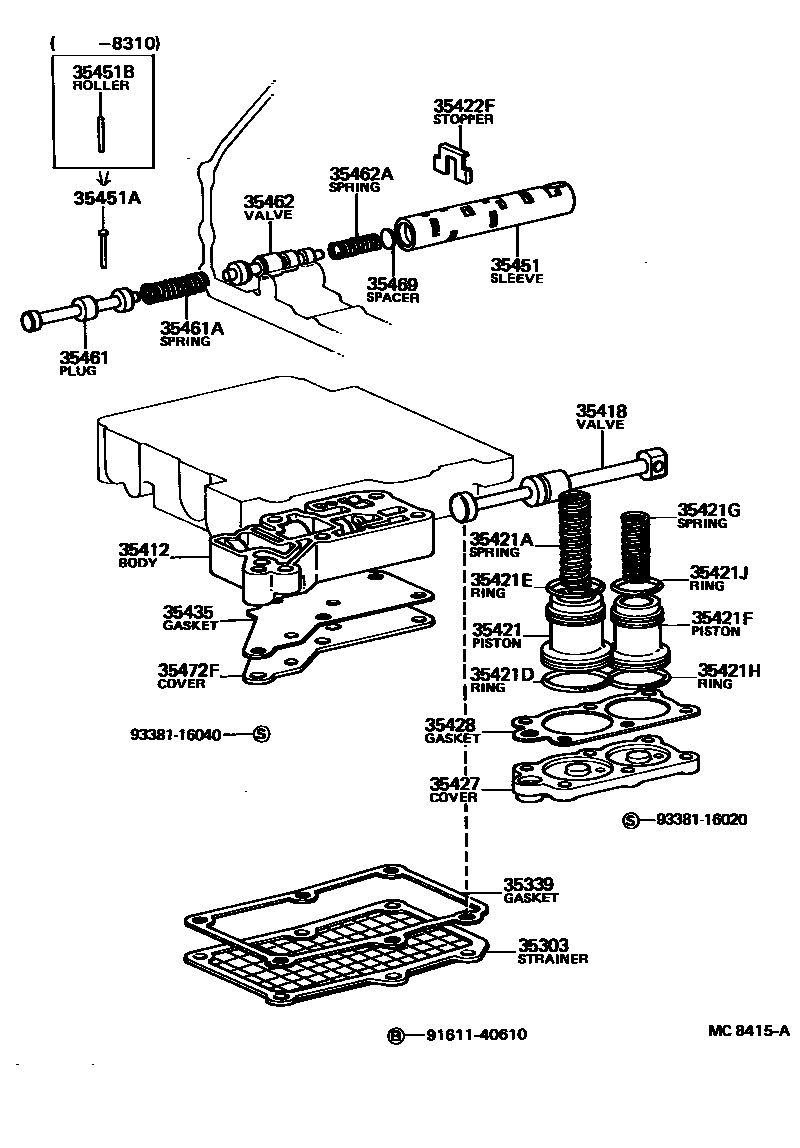

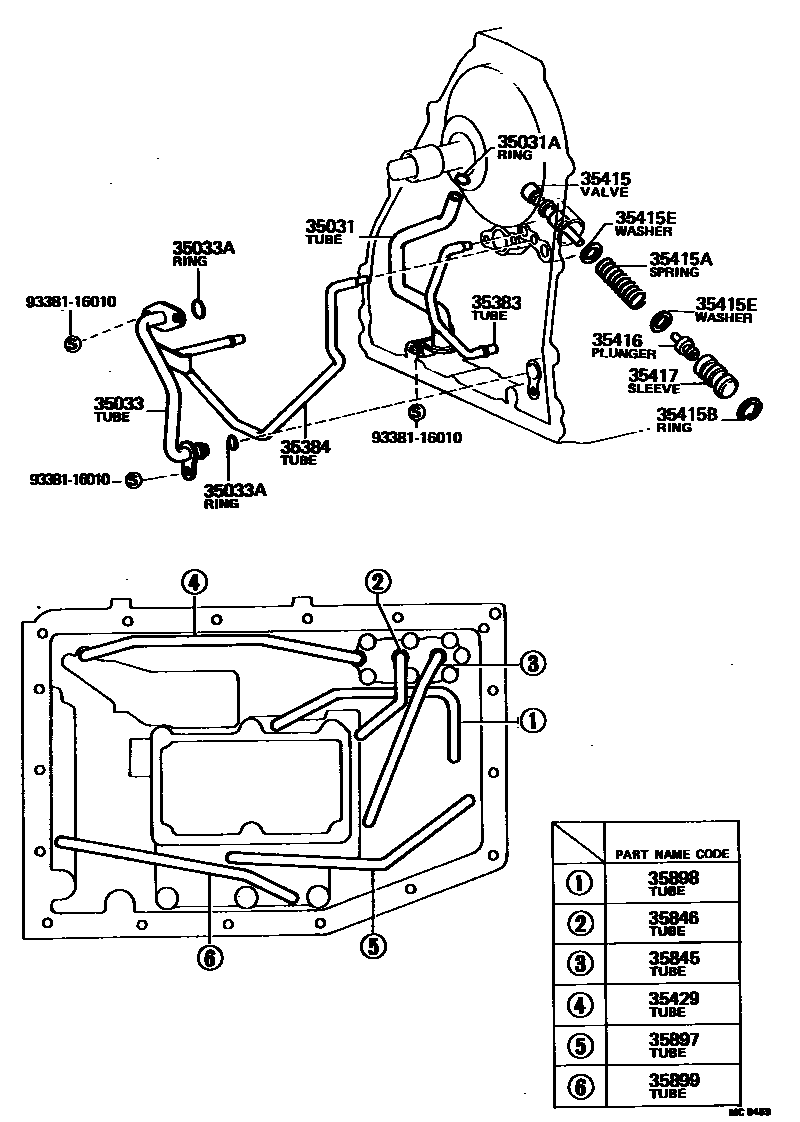

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35031 | No. 1 oil pump suction pipe sub-assembly | 35031-16010 |
| 35031A | O-ring (for No. 1 oil pump suction pipe) | 90301-12002 |
| 35032 | No. 2 oil pump suction pipe sub-assembly | 35032-16010 |
| 35032A | O-ring (for No. 2 oil pump suction pipe) | 90301-10001 |
| 35033 | Oil pump oil pipe sub-assembly | 35033-16010 |
| 35033A | O-ring (for oil pump oil pipe) | 90301-10001 · 90301-12002 |
| 35303 | Oil filter sub-assembly | 35303-16020 |
| 35339 | Oil filter gasket | 35339-16010 |
| 35383 | Reverse gear line pressure oil pipe | 35383-16010 |
| 35384 | Throttle valve pressure oil pipe | 35384-16010 |
| 35410 | Transmission valve body assembly | 35410-16010 |
| 35410A | Ball (for reverse gear shift positioning) | 90360-06004 |
| 35412 | Front upper valve body | 35412-16010 |
| 35413 | reverse valve | 35458-16010 |
| 35414 | reverse plug | 35459-16010 |
| 35414A | Roller (for reverse plug) | 90361-03044 |
| 35415 | pressure regulator valve | 35415-16010 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-16067 |
| 35415B | Orifice snap ring (for pressure regulator valve assembly) | 96151-01900 |
| 35415E | Flat Washer (for pressure regulator valve) | 90201-08021 |
| 35416 | No. 1 main regulator valve plunger | 35416-16020 · 35416-16030 |
| 35417 | pressure regulator valve sleeve | 35417-16020 · 35417-16030 |
| 35418 | Manual valve | 35418-16010 |
| 35421 | No. 1 accumulator piston | 35421-30020 |
| 35421A | Compression spring (for accumulator piston No. 1) | 90501-23738 · 90501-28002 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29187 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23194 |
| 35421F | No. 2 accumulator piston | 35421-22020 · 35441-30010 |
| 35421G | Compression spring (for accumulator piston No. 2) | 90501-20676 · 90501-25015 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26190 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18186 |
| 35422F | Valve damping stop | 35422-16010 |
| 35427 | Accumulator cover | 35474-16010 |
| 35428 | Accumulator cover gasket | 35478-16010 |
| 35429 | pipeline pressure oil pipe | 35429-16010 |
| 35432 | No. 1 valve body plate | 35432-16010 |
| 35433 | No. 1 valve body gasket | 35433-16010 |
| 35434 | No. 2 valve body gasket | 35434-16010 |
| 35435 | No. 3 valve body plate gasket | 35435-16010 |
| 35441 | Low gear coast shift control valve | 35441-16010 |
| 35441A | Compression spring (for low range coast shift control valve) | 90501-12044 |
| 35441B | Snap ring (for low-range coast shift control valve) | 96151-02000 |
| 35443 | Low gear coast shift control valve sleeve | 35443-16010 |
| 35451 | Throttle valve sleeve | 35451-16010 |
| 35451A | Direct sales (with throttle sleeve) | 90241-03003 |
| 35451B | Roller (for securing the throttle sleeve) | 90361-03042 |
| 35452F | 2nd-3rd gear shift valve plunger | 35452-16010 |
| 35453 | lock regulator valve | 35453-16010 |
| 35453A | Compression spring (for locking regulator valve) | 90501-10031 · 90501-10033 · 90501-10034 |
| 35454 | Low gear coast shift valve | 35454-16010 |
| 35455 | 1-2 gear low gear shift valve plunger | 35455-16010 |
| 35456 | 2nd-3rd gear shift valve | 35456-16010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-06008 |
| 35461 | Downshift plug | 35461-16010 |
| 35461A | Compression spring (for downshift plug) | 90501-09021 |
| 35462 | throttle valve | 35462-16010 |
| 35462A | Compression spring (for throttle valve) | 90501-06011 |
| 35463 | Lock pressure shut-off valve | 35463-16010 |
| 35464 | 1-2 gear shift valve | 35464-16010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-05007 |
| 35467 | Intermediate shift valve | 35467-16010 |
| 35469 | Spacer (for valve body reduction plug) | 35469-30010 |
| 35472F | Front valve body cover | 35472-16010 |
| 35473 | Transmission valve body cover | 35473-16010 |
| 35477 | Valve body cover gasket | 35477-16010 |
| 35493F | Shift valve plunger seat | 35493-16010 |
| 35845 | Rear clutch accumulator tube | 35845-16010 |
| 35846 | brake accumulator pipe | 35846-16010 |
| 35897 | First and reverse brake pipes | 35897-16010 |
| 35898 | No. 2 first and reverse brake pipe | 35898-16010 · 35898-16020 |
| 35899 | Governor pressure oil pipe | 35899-16010 |
