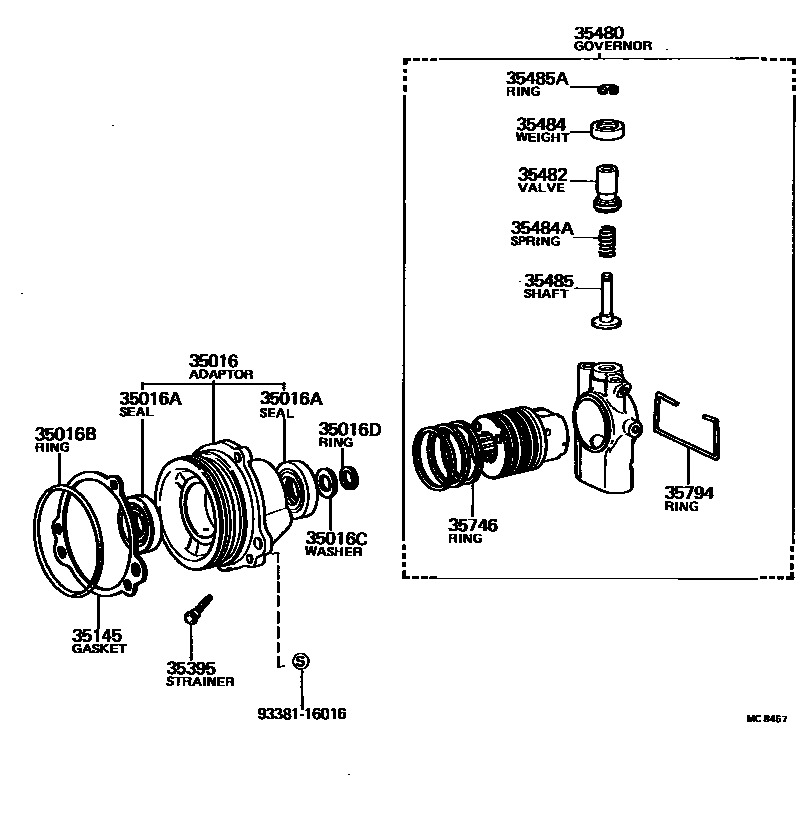

Toyota COROLLA 后油泵和调速器(ATM) — Figure 3511
Toyota COROLLA EPC diagram 3511, 后油泵和调速器(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35016 | Governor pressure joint sub-assembly | 35016-16010 |
| 35016A | S-type oil seal (for governor pressure joint) | 90310-23001 |
| 35016B | O-ring (for governor pressure coupling) | 90301-64003 |
| 35016C | Flat Washer (for governor pressure coupling) | 90201-11007 |
| 35016D | Snap ring (for governor pressure coupling) | 96150-01100 |
| 35145 | governor pressure joint gasket | 35146-16010 |
| 35395 | governor oil filter | 35395-16010 |
| 35480 | governor | 35480-16020 |
| 35482 | governor valve | 35482-16020 |
| 35484 | Speed regulator external weight | 35484-16020 |
| 35484A | Compression spring (for governor weight) | 90501-08037 |
| 35485 | governor valve shaft | 35485-16020 |
| 35485A | E-ring (for governor valve shaft) | 90523-05020 |
| 35746 | Speed governor bracket oil ring | 35746-16010 |
| 35794 | governor retaining ring | 35794-16010 |
