Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

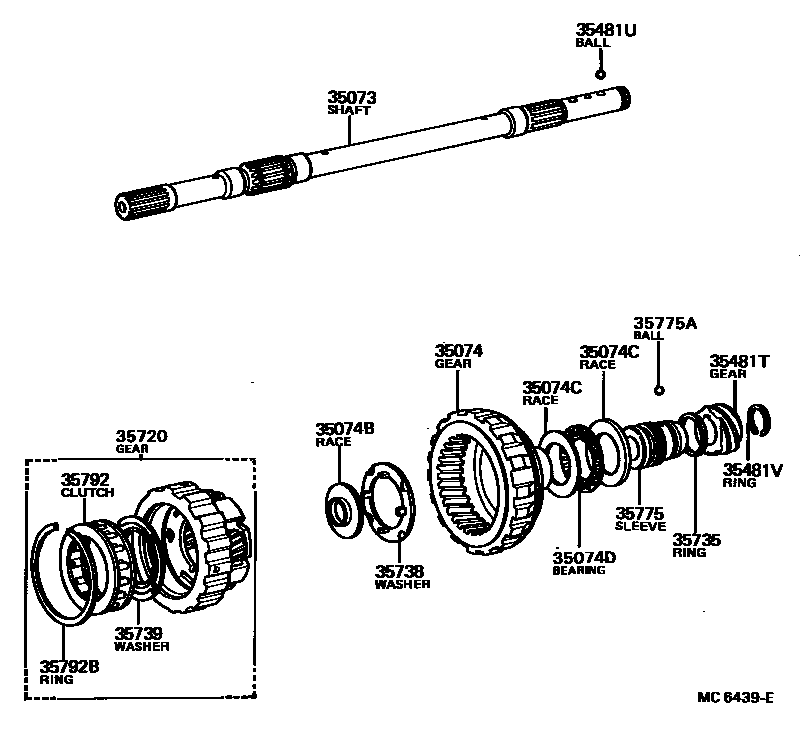

Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35073 | Output shaft sub-assembly | 35073-16011 |
| 35074 | Rear planetary ring gear sub-assembly | 35074-16020 · 35074-16022 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-22050 |
| 35074C | Rear thrust bearing race (for rear planetary ring gear) | 35789-16040 · 35789-16200 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-32002 |
| 35481T | Speedometer driving gear (ATM) | 33481-16010 |
| 35481U | Speedometer driving gear key or ball (ATM) | 90360-05012 |
| 35481V | Ring or spacer (for automatic transmission speedometer drive gear) | 90520-18266 |
| 35720 | Front planetary gear assembly | 35720-14010 |
| 35735 | Planetary gear output shaft snap ring | 35735-16010 · 35735-30010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-16011 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-14010 |
| 35775 | Output shaft sleeve | 35775-16011 · 35775-16012 · 35775-16013 |
| 35775A | Output shaft sleeve ball | 90360-05012 |
| 35792 | No. 2 one-way clutch | 35792-30010 · 35792-30011 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-79148 |
