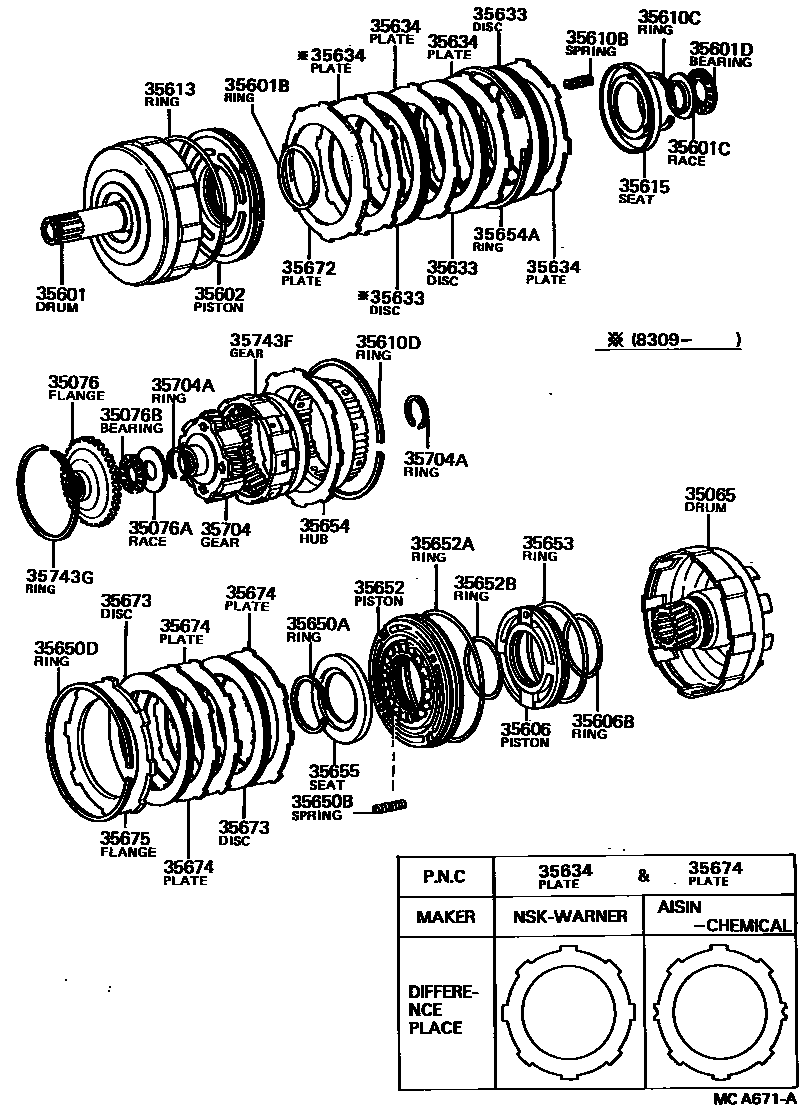

Toyota COROLLA 制动带和多片式离合器(ATM) — Figure 3507
Toyota COROLLA EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35065 | Rear clutch and front sun gear drum sub-assembly | 35065-16011 |
| 35076 | Front planetary ring gear flange sub-assembly | 35076-16010 |
| 35076A | Thrust bearing race (for front planetary gear flange) | 35789-16070 |
| 35076B | Thrust needle roller bearing (for front planetary gear flange) | 90374-30004 |
| 35601 | Clutch drum sub-assembly | 35601-16010 · 35601-16011 |
| 35601B | O-ring (for front clutch drum) | 90301-57188 |
| 35601C | Thrust bearing race (for front clutch drum) | 35789-16010 |
| 35601D | Thrust needle roller bearing (for front clutch drum) | 90374-37001 |
| 35602 | Front clutch piston sub-assembly | 35602-16010 · 35602-16011 |
| 35606 | Rear clutch piston sub-assembly | 35606-22010 |
| 35606B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35610B | Compression spring (for front clutch piston return) | 90501-10025 |
| 35610C | Shaft snap ring (for front clutch piston return spring) | 90520-52001 |
| 35610D | Hole snap ring (for front multi-plate clutch) | 90521-99139 |
| 35613 | Clutch piston outer oil ring | 90301-99192 |
| 35615 | Clutch piston return spring seat | 35615-16010 |
| 35633 | Clutch disc (for front clutch) | 35677-22030 · 35677-30030 |
| 35634 | front clutch plate | 35634-22040 · 35634-22070 |
| 35650A | Shaft snap ring (for rear clutch piston return spring) | 90520-45001 |
| 35650B | Compression spring (for rear clutch piston return) | 90501-10025 |
| 35650D | Hole snap ring (for rear multi-plate clutch) | 90521-99139 |
| 35652 | No. 2 rear clutch piston | 35602-16010 |
| 35652A | Outer O-ring (for rear clutch) | 90301-99192 |
| 35652B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35653 | Rear clutch outer oil ring | 90301-84184 |
| 35654 | rear clutch hub | 35654-16010 · 35654-16011 |
| 35654A | Hole snap ring (for rear clutch hub) | 90521-99146 |
| 35655 | Rear clutch piston return spring seat | 35655-16010 |
| 35672 | clutch cushion | 35672-16010 · 35672-16011 |
| 35673 | rear clutch disc | 35677-22030 · 35677-30030 |
| 35674 | rear clutch plate | 35634-22040 · 35634-22070 |
| 35675 | rear clutch flange | 35675-16010 · 35675-22010 |
| 35704 | Front planetary gear sub-assembly | 35704-16010 |
| 35704A | Shaft snap ring (for front planetary gear) | 90522-23002 |
| 35743F | Front planetary ring gear | 35743-16012 · 35743-16013 |
| 35743G | Shaft snap ring (for front planetary gear) | 90521-93001 |
