Toyota COROLLA Extension shell (ATM) — Figure 3504

Toyota COROLLA EPC diagram 3504, Extension shell (ATM), with 1 images and 4 PNC and OE references.

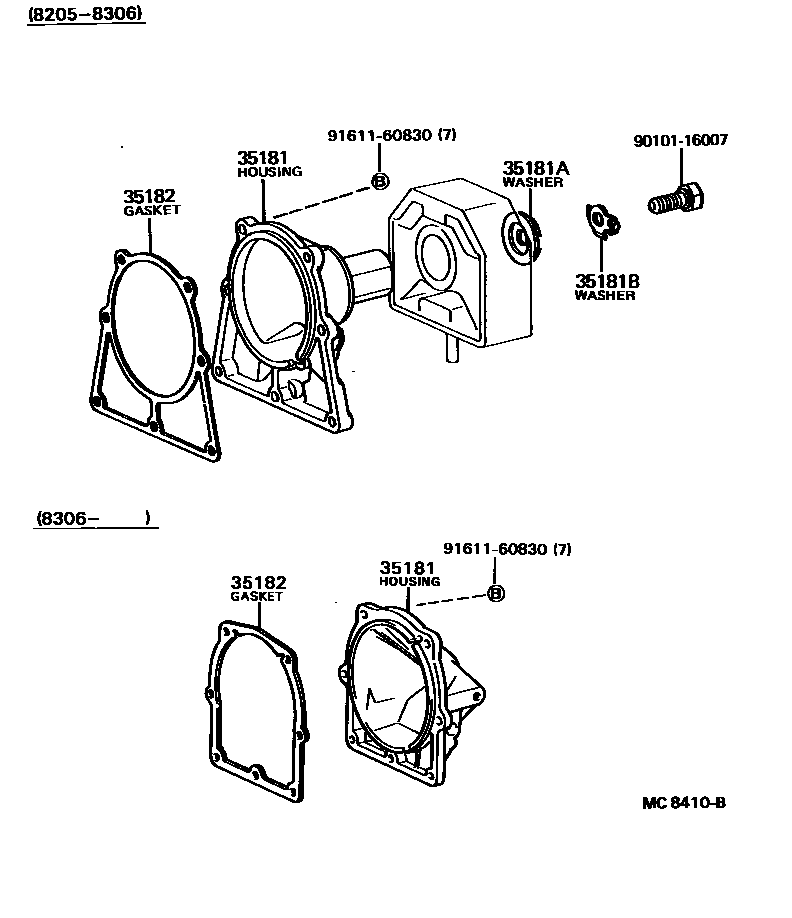

Toyota COROLLA Extension shell (ATM) EPC diagram — MC8410B
Extension shell (ATM) — MC8410B (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
35181Extension shell (ATM)35181-16010 · 35181-16011
35181AFlat washer (for rear fixed stop)90214-17001
35181BLock washer (for rear fixed stop)90215-16001
35182Extension shell liner (ATM)35182-16010 · 35182-16011
