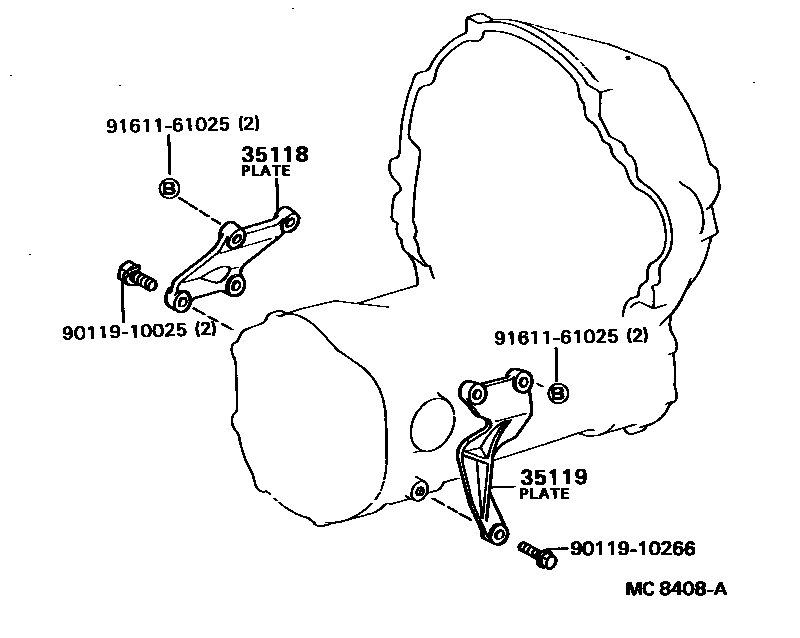

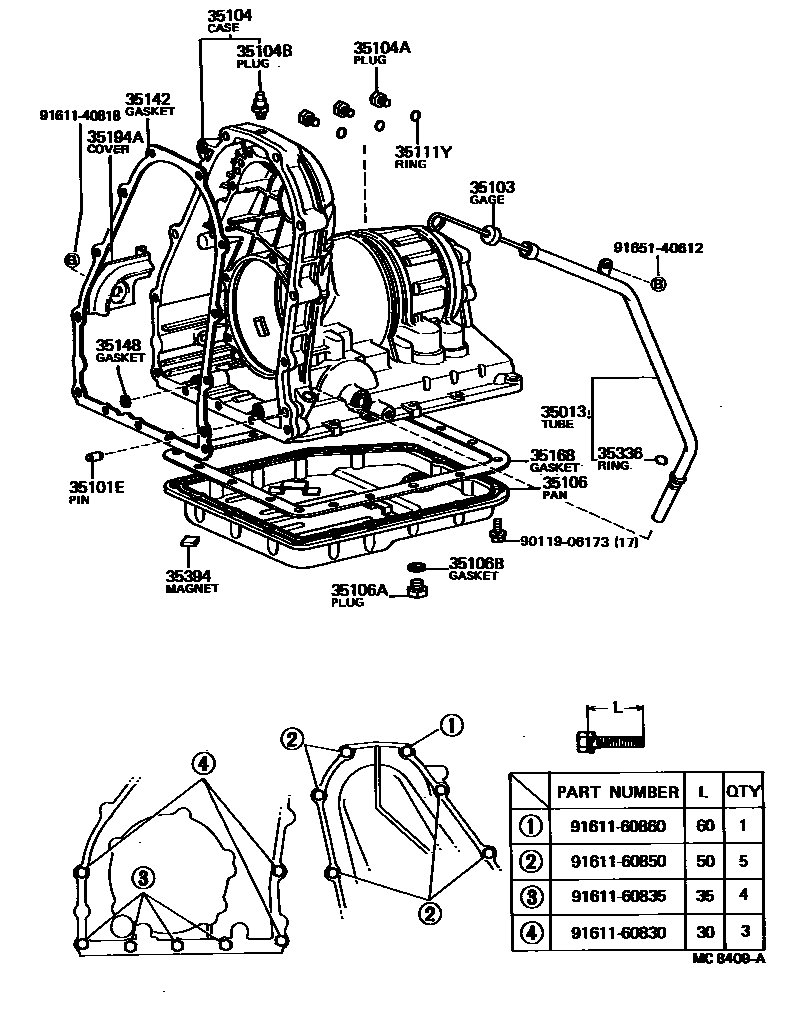

Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503
Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35013 | Transmission oil pipe sub-assembly | 35013-16012 |
| 35101E | Direct sales (for automatic transmission) | 90250-10232 |
| 35103 | Transmission oil level scoring assembly | 35103-16020 |
| 35104 | Automatic transmission housing sub-assembly | 35104-16012 · 35104-16013 |
| 35104A | automatic transmission plug | 90341-08001 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03001 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-16010 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18049 |
| 35106B | Drain plug gasket (ATM) | 12157-10010 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35118 | Right reinforcement plate (ATM) | 33118-16010 |
| 35119 | Left reinforcement plate (ATM) | 33119-16030 |
| 35142 | Transmission gasket (ATM) | 35142-16010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35148-16010 |
| 35168 | Automatic transmission oil pan gasket | 35168-16010 |
| 35194A | Gearbox dust cover | 35194-16010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
