Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502

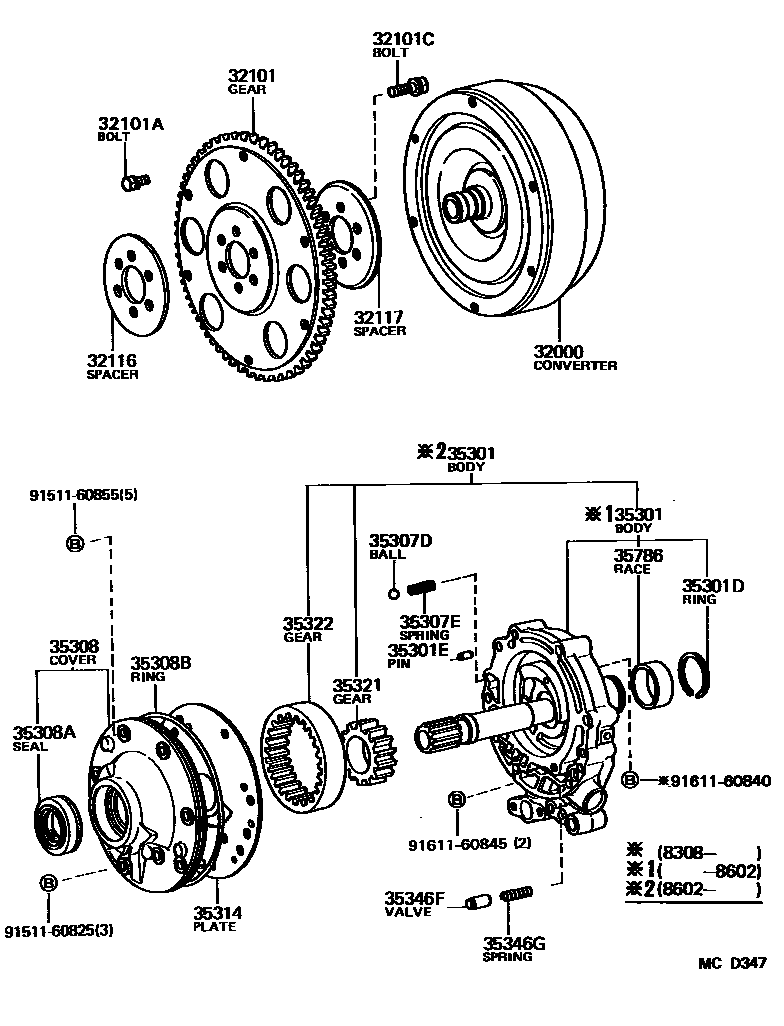

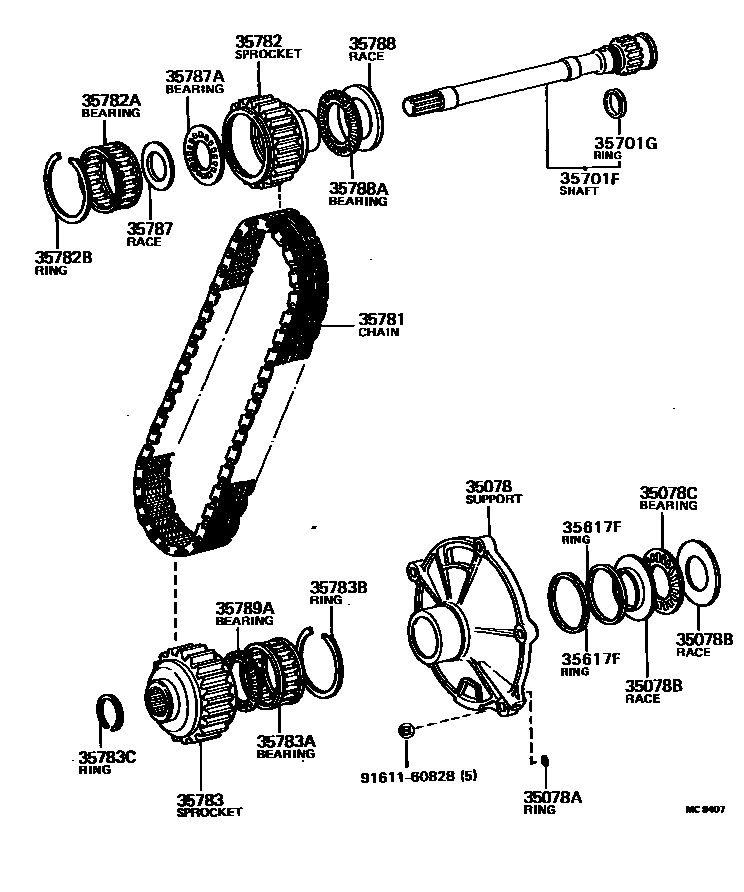

Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-16010 · 32000-16011 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-16010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08090 · 90119-08223 · 90119-08519 · 90119-08520 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-12010 |
| 32117 | Rear transmission plate spacer | 32117-12010 |
| 35078 | Front bracket sub-assembly | 35078-16010 · 35078-16011 |
| 35078A | O-ring (for front bracket) | 90301-05002 |
| 35078B | Rear thrust bearing race (for front bracket) | 35789-16040 · 35789-16060 |
| 35078C | Rear thrust needle roller bearing (for front bracket) | 90374-32002 |
| 35301 | Front oil pump body sub-assembly | 35035-16010 · 35301-16010 · 35301-16012 |
| 35301D | Shaft snap ring (for front oil pump) | 90520-38001 |
| 35301E | Direct sales (for front oil pump) | 90250-10232 |
| 35307D | Reverse gear shift positioning steel ball | 90360-06004 |
| 35307E | Compression spring (for reverse shift positioning ball) | 90501-06009 · 90501-06042 |
| 35308 | Front oil pump cover sub-assembly | 35308-16010 · 35308-16011 |
| 35308A | Oil seal (for front oil pump cover) | 90311-38020 · 90311-38129 |
| 35308B | Gearbox sealing ring | 90301-99012 |
| 35314 | front oil pump piece | 35314-16010 · 35314-16011 · 35314-16012 |
| 35321 | Front oil pump driving gear | 35321-16010 · 35321-16020 · 35321-16030 |
| 35322 | Front oil pump driven gear | 35322-16010 · 35322-16020 · 35322-16030 |
| 35346F | Starting valve (for front oil pump) | 35346-16010 · 35346-16011 |
| 35346G | Compression spring (for starter valve) | 90501-07014 · 90501-07036 |
| 35617F | Clutch drum oil ring | 35617-16010 |
| 35701F | Input shaft sub-assembly | 35701-16010 |
| 35701G | Input shaft oil ring | 35712-16010 |
| 35781 | Main drive chain | 35781-16010 |
| 35782 | drive sprocket | 35782-16020 |
| 35782A | Needle roller bearings (for drive sprocket) | 90364-46002 |
| 35782B | Hole snap ring (for drive sprocket) | 90521-55002 |
| 35783 | Driven sprocket | 35783-16020 |
| 35783A | Needle roller bearing (for driven sprocket) | 90364-46002 |
| 35783B | Hole snap ring (for driven sprocket) | 90521-55002 |
| 35783C | Shaft snap ring (for driven sprocket assembly) | 90520-27001 |
| 35786 | Drive sprocket race | 35787-16010 |
| 35787 | Front thrust bearing race (for drive sprocket) | 35789-16110 |
| 35787A | Front thrust needle roller bearing (for drive sprocket) | 90374-26001 |
| 35788 | Rear thrust bearing race (for drive sprocket) | 35789-16150 |
| 35788A | Rear thrust needle roller bearing (for drive sprocket) | 90374-37001 |
| 35789A | Thrust needle roller bearing (for driven sprocket) | 90374-30004 |
