Toyota COROLLA Shift Lever & Retainer — Figure 3312

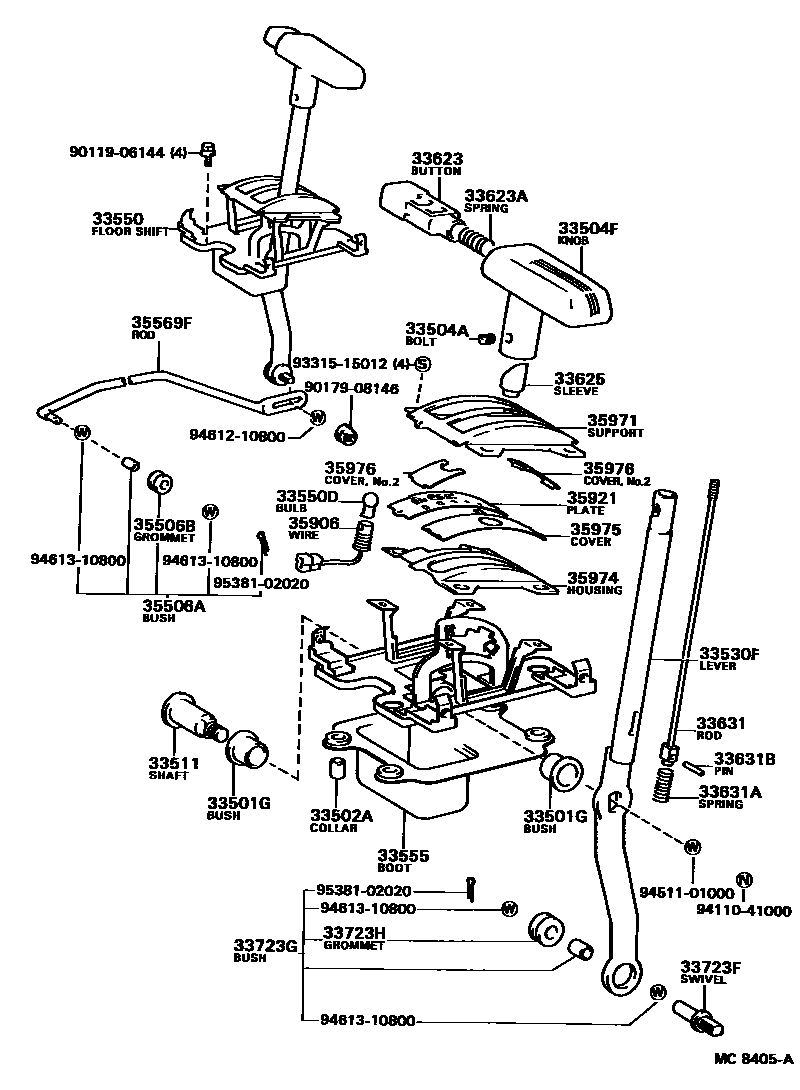

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-16003 |
| 33502A | Collar (for securing floor shift) | 90387-06005 |
| 33502F | Shift lever housing sub-assembly (for floor shift) | 33502-16010 |
| 33503C | Collar (for shift lever sub-assembly) | 90387-08010 |
| 33503G | Bushing (for shift lever) | 90389-11002 |
| 33503R | O-ring (for shift lever sub-assembly) | 96711-24018 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 · 90149-40004 · 90159-40109 |
| 33511 | Control shaft (for floor shifting) | 33511-16020 |
| 33520F | Shift lever base plate | 33521-16010 |
| 33530F | Shift lever assembly (for floor shift) | 33503-16050 · 33503-16090 · 33530-16030 |
| 33535F | Gear selector lever (for floor shift) | 33535-16010 |
| 33535G | O-ring (for gear selector lever) | 96711-24018 |
| 33535H | Collar (for gear selector lever) | 90387-08009 · 90387-08010 |
| 33535J | Bushing (for gear selector lever) | 90389-11002 |
| 33550A | Collar (for floor shift) | 90387-06003 |
| 33550B | Bolt with washer (for floor shift) | 90119-06182 |
| 33550C | Cushion pad (for floor shift) | 90541-13002 |
| 33550D | position indicator light bulb | 99132-11017 |
| 33555 | Gear shift lever dust cover | 33555-16020 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 · 90501-09009 |
| 33625 | Shift lever handle sleeve | 33625-16010 |
| 33631 | Locking lever | 33631-16010 |
| 33631A | Compression spring (for locking lever) | 90501-07005 |
| 33631B | Slotted spring pin (for locking lever) | 90256-04001 |
| 33710 | No. 1 shift lever assembly | 33710-16020 |
| 33710D | Bushing (for No. 1 shift rod) | 90386-11005 |
| 33720 | Shift rod housing connecting rod assembly | 33770-16020 |
| 33720B | Bushing (for shift rod housing connecting rod) | 90385-10004 |
| 33720C | Collar (for shift rod housing connecting rod) | 90387-08012 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33778C | Collar (for No. 1 shift lever housing arm) | 90387-08011 |
| 33778D | Bushing (for No. 1 shift lever housing arm) | 90386-11002 |
| 33778F | No. 1 shift lever housing arm | 33778-16010 |
| 33779 | No. 2 shift lever housing arm | 33779-16010 |
| 33779B | Bushing (for No. 2 shift lever housing arm) | 90386-11002 |
| 33779C | Collar (for No. 2 shift lever housing arm) | 90387-08011 |
| 33779D | Bushing No. 1 (for shift lever housing arm No. 2) | 90389-08005 |
| 33779G | Retaining ring (for No. 2 shift lever housing arm) | 90480-17177 |
| 33779P | Holed pin (for No. 2 shift lever housing arm) | 90240-08015 |
| 35506A | Bushing (for manual valve stem shaft) | 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17177 |
| 35569F | Transmission first gear lever (for floor shift) | 33675-16020 · 33675-16021 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-16010 |
| 35921 | control position indicator board | 35921-16050 |
| 35971 | position indicator bracket | 35971-16020 |
| 35974 | Position indicator light lower shell | 35974-16020 |
| 35975 | Slide cover (for position indicator light) | 35975-16020 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-16010 |
