Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

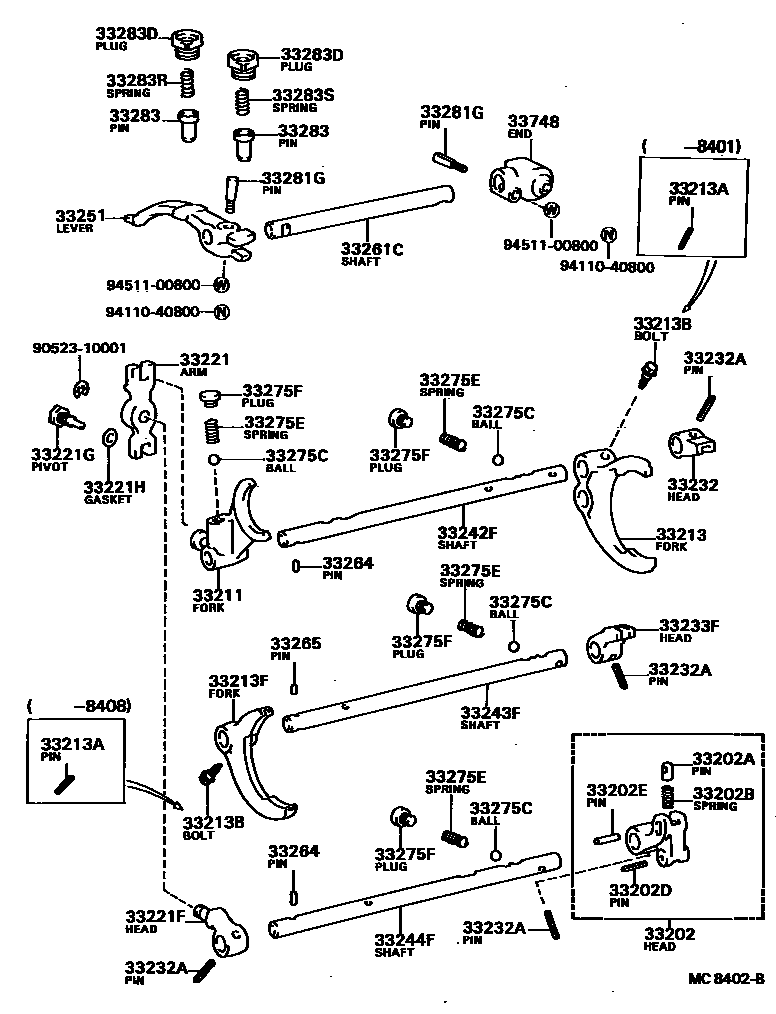

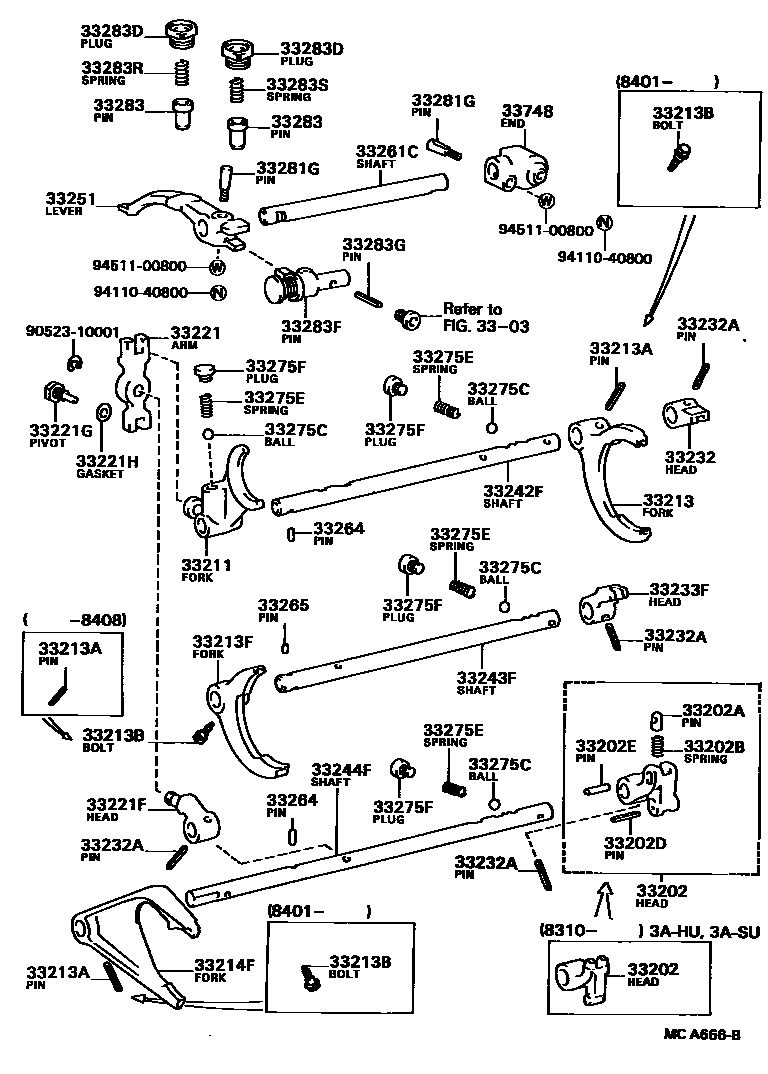

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33202 | Reverse gear shift guide block sub-assembly | 33202-16030 · 33234-16060 |
| 33202A | No. 2 reverse gear positioning pin | 33284-16010 |
| 33202B | No. 1 compression spring (for reverse gear positioning pin) | 90501-08038 |
| 33202D | Slotted spring pin (for reverse positioning) | 90254-03005 |
| 33202E | Direct selling (for reverse gear positioning) | 90250-05012 |
| 33211 | Reverse Shift Fork | 33211-16020 · 33211-16030 |
| 33213 | First and second gear shift forks | 33212-16010 · 33212-16011 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05003 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 |
| 33213F | Third and fourth gear shift forks | 33213-16011 · 33213-16020 |
| 33214F | Five-speed shift fork | 33214-16010 · 33214-16011 |
| 33221 | Reverse shift arm | 33221-16010 · 33221-16020 |
| 33221F | Reverse shift arm cover | 33235-16010 · 33235-16030 |
| 33221G | Reverse shift arm pivot | 90109-14002 |
| 33221H | Pad (for reverse shift arm pivot) | 90430-14003 |
| 33232 | First and second gear shift guide blocks | 33232-16020 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05003 |
| 33233F | Third and fourth gear transmission guide blocks | 33233-16030 |
| 33242F | First and second gear shift fork shaft | 33242-16020 · 33242-16021 |
| 33243F | Third and fourth gear shift fork shaft | 33243-16012 · 33243-16030 |
| 33244F | Fifth and reverse gear shift shaft | 33244-16012 · 33244-16013 · 33244-16022 |
| 33251 | shift lever | 33251-16020 |
| 33261C | shift lever shaft | 33261-16020 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05005 |
| 33265 | No. 2 shift interlock pin | 90250-05197 |
| 33275C | Steel ball (for shift lock) | 90360-08009 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-10052 · 90501-13001 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-10065 |
| 33281G | shift lever lock pin | 33281-16020 |
| 33283 | No. 1 reverse gear positioning pin | 33283-16010 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-20085 |
| 33283F | Reverse gear positioning pin | 33280-16010 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33283R | Compression spring (for right reverse gear positioning pin) | 90501-12018 |
| 33283S | Compression spring (for left reverse gear positioning pin) | 90501-17005 |
| 33748 | Shift lever end | 33607-16012 |
