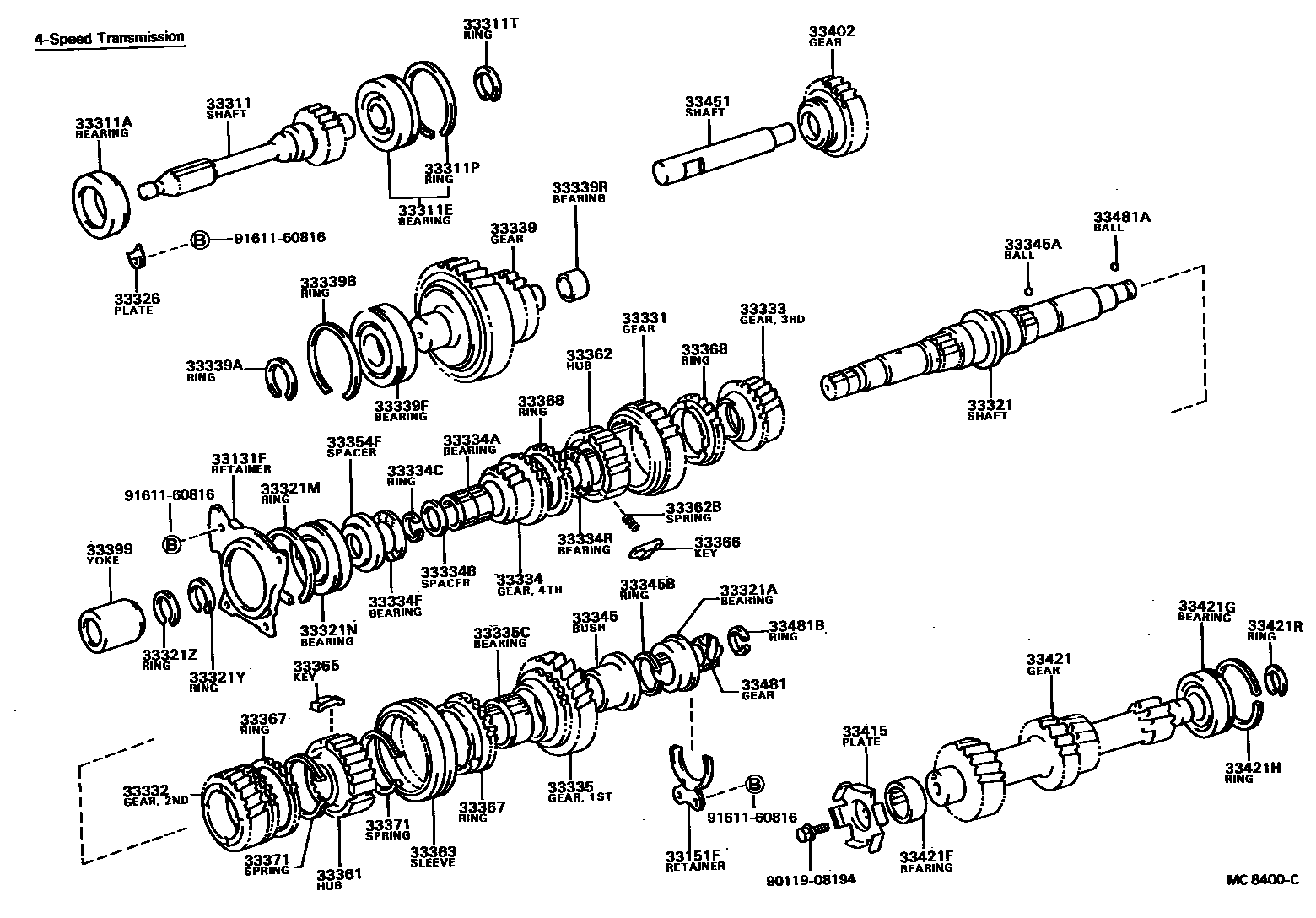

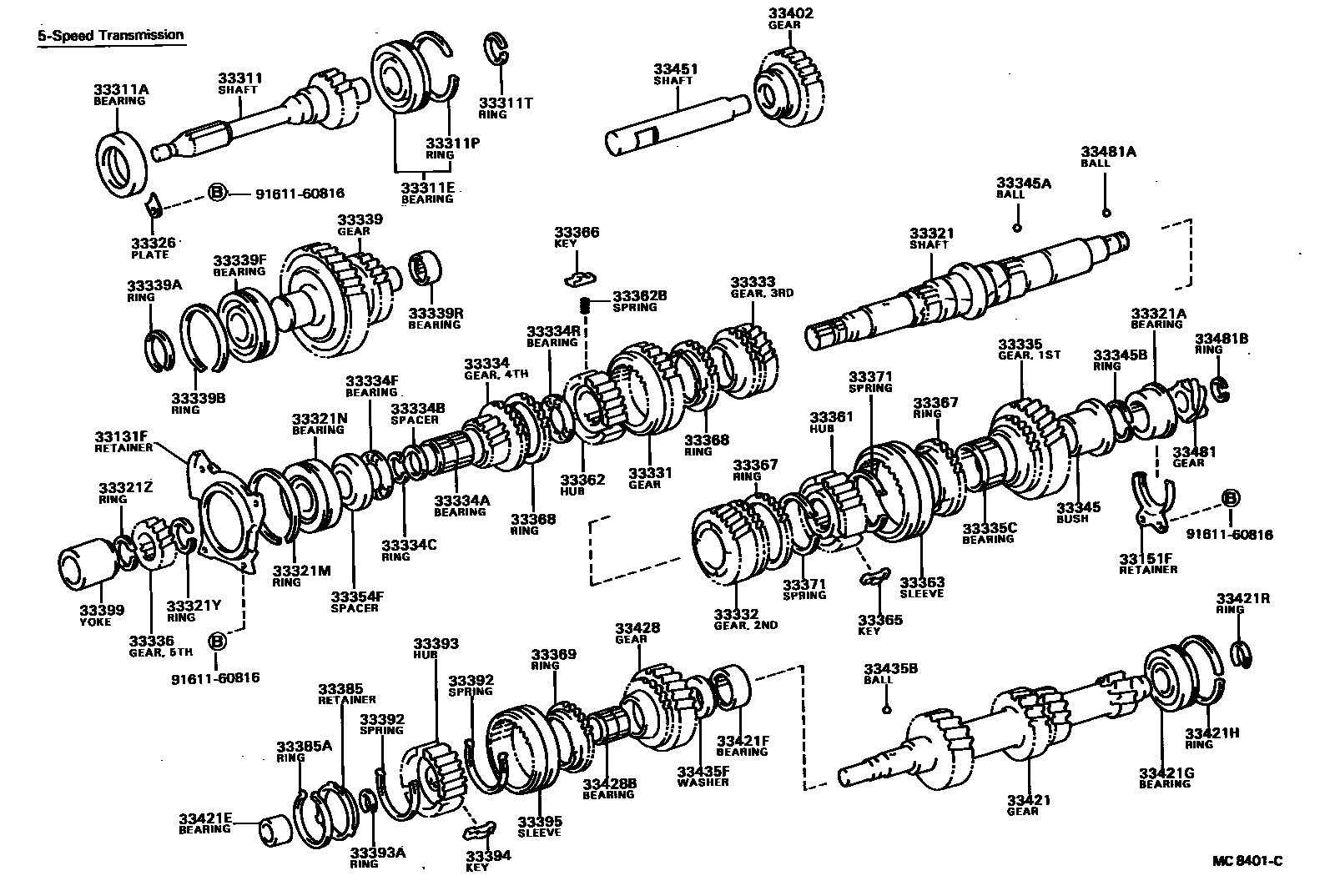

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33131F | Output shaft front bearing retainer | 33131-16010 |
| 33151F | Output shaft rear bearing retainer (MTM) | 33151-16011 |
| 33311 | input shaft | 33311-16011 |
| 33311A | Bearing (for front input shaft) | 90365-34001 · 90365-34003 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-25016 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-59002 |
| 33311T | Shaft snap ring (for input shaft) | 90520-23089 · 90520-23144 |
| 33321 | output shaft | 33321-16010 · 33321-16011 |
| 33321A | Bearings (for rear output shaft) | 90369-28002 |
| 33321M | Shaft snap ring (for bearings) | 90520-59002 |
| 33321N | Bearing (for front output shaft) | 90363-25015 |
| 33321Y | Shaft snap ring (for front output shaft bearing) | 90520-23001 · 90520-23002 · 90520-23089 · 90520-23090 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 · 90520-23147 |
| 33321Z | Shaft snap ring (for front output shaft) | 90520-23001 · 90520-23002 · 90520-23003 · 90520-23089 · 90520-23090 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23146 · 90520-23147 |
| 33326 | Bearing locking plate | 33326-16010 |
| 33331 | reverse gear | 33331-16020 · 33331-16030 |
| 33332 | Second gear | 33332-16010 · 33332-16030 |
| 33333 | Third gear | 33333-16010 · 33333-16030 · 33333-16040 · 33333-16050 |
| 33334 | fourth gear | 33334-16011 · 33334-16020 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-25003 |
| 33334B | Spacer (for fourth gear bearing) | 90560-25003 · 90560-25008 |
| 33334C | Shaft snap ring (for front four gear thrust needle roller bearings) | 90520-23008 · 90520-23036 |
| 33334F | Thrust needle roller bearing (for first four gears) | 90374-30002 |
| 33334R | Thrust needle roller bearing (for rear fourth gear) | 90374-29001 |
| 33335 | first gear | 33335-16030 · 33335-16040 · 33335-16060 · 33335-16070 |
| 33335C | Needle roller bearing (for first gear) | 90364-36001 |
| 33336 | fifth gear | 33336-16010 · 33336-16020 · 33336-16021 |
| 33339 | idler pulley | 33339-16020 · 33339-16030 |
| 33339A | Shaft snap ring (for idler gear) | 90520-28205 · 90520-28207 |
| 33339B | Shaft snap ring (for front idler bearing) | 90520-68193 |
| 33339F | Radial ball bearing (for front idler) | 90363-30019 · 90363-30045 |
| 33339R | Needle roller bearing (for rear idler) | 90364-25002 |
| 33345 | First gear bushing | 33345-16010 |
| 33345A | Steel ball (for first gear bushing) | 90360-05012 |
| 33345B | Shaft snap ring (for first gear bushing) | 90520-26009 · 90520-26010 · 90520-26011 · 90520-26012 · 90520-26013 · 90520-26014 · 90520-26015 · 90520-26024 · 90520-26025 |
| 33354F | Spacer (for front fourth gear thrust bearing) | 33354-16011 |
| 33361 | No. 1 transmission clutch hub | 33361-16011 |
| 33362 | No. 2 transmission clutch hub | 33362-16010 |
| 33362B | Compression spring (used to secure No. 2 clutch hub) | 90501-09012 · 90501-10109 |
| 33363 | No. 1 transmission hub sleeve | 33363-16010 · 33363-16020 · 33363-16021 |
| 33365 | No. 1 synchromesh shift key | 33365-16010 |
| 33366 | No. 2 synchromesh shift key | 33366-16010 |
| 33367 | Synchronizer lock ring No. 1 | 33367-16010 · 33367-16030 |
| 33368 | Synchronizer lock ring No. 2 | 33368-16010 · 33368-16020 |
| 33369 | No. 3 synchronizer lock ring | 33369-16010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-16010 |
| 33385 | shift key block | 33385-16011 · 33385-16020 |
| 33385A | Hole snap ring (for fifth-speed shift key retaining ring) | 90521-52001 |
| 33392 | No. 3 synchromesh shift key spring | 33391-16010 |
| 33393 | No. 3 transmission clutch hub | 33393-16011 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-20015 · 90520-20016 · 90520-20017 · 90520-20018 · 90520-20019 · 90520-20020 · 90520-20021 · 90520-20039 · 90520-20040 · 90520-20041 · 90520-20042 · 90520-20043 · 90520-20044 · 90520-20045 |
| 33394 | No. 3 synchromesh shift key | 33394-16010 |
| 33395 | No. 3 transmission hub sleeve | 33395-16010 · 33395-16011 |
| 33399 | Transmission slip fork (MTM) | 33399-16010 |
| 33402 | Reverse idler gear sub-assembly | 33402-16020 · 33402-16030 |
| 33415 | countershaft gear plate | 33415-16010 |
| 33421 | countershaft gear | 33421-16040 · 33421-16050 · 33421-16060 |
| 33421E | Needle roller bearings (for countershaft gears) | 90364-19002 |
| 33421F | Needle roller bearing (for countershaft front gear) | 90364-30003 |
| 33421G | Radial ball bearing (for countershaft rear gear) | 90363-22005 |
| 33421H | Shaft snap ring (for countershaft gear rear bearing) | 90520-57001 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-20001 · 90520-20004 |
| 33428 | Countershaft fifth gear | 33428-16010 · 33428-16020 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-24003 · 90364-24007 |
| 33435B | Steel ball (for countershaft gear cover side thrust washer) | 90360-05012 |
| 33435F | Countershaft fifth gear side thrust washer | 33435-16010 |
| 33451 | Reverse gear idler shaft | 33451-16010 · 33451-16020 |
| 33481 | Speedometer driving gear (MTM) | 33481-16010 · 33481-16020 |
| 33481A | Speedometer driving gear key or steel ball (MTM) | 90360-05012 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-18266 |
