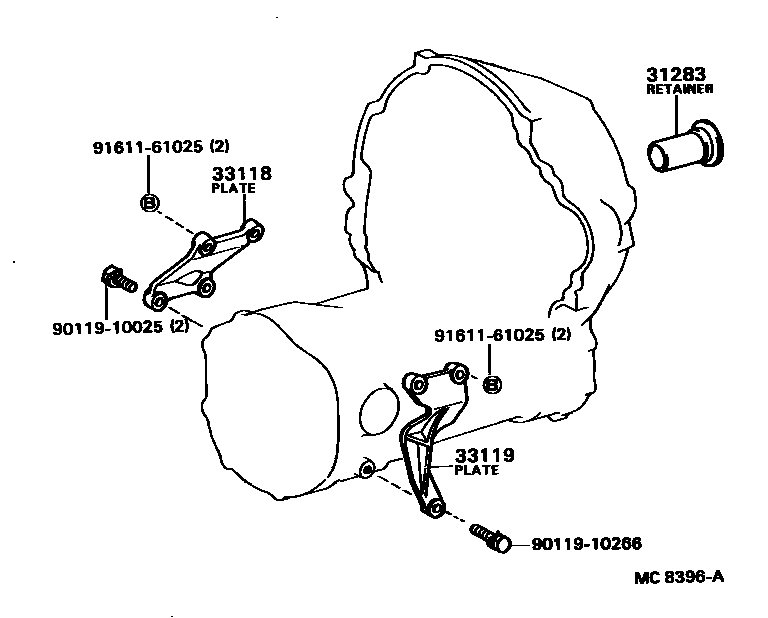

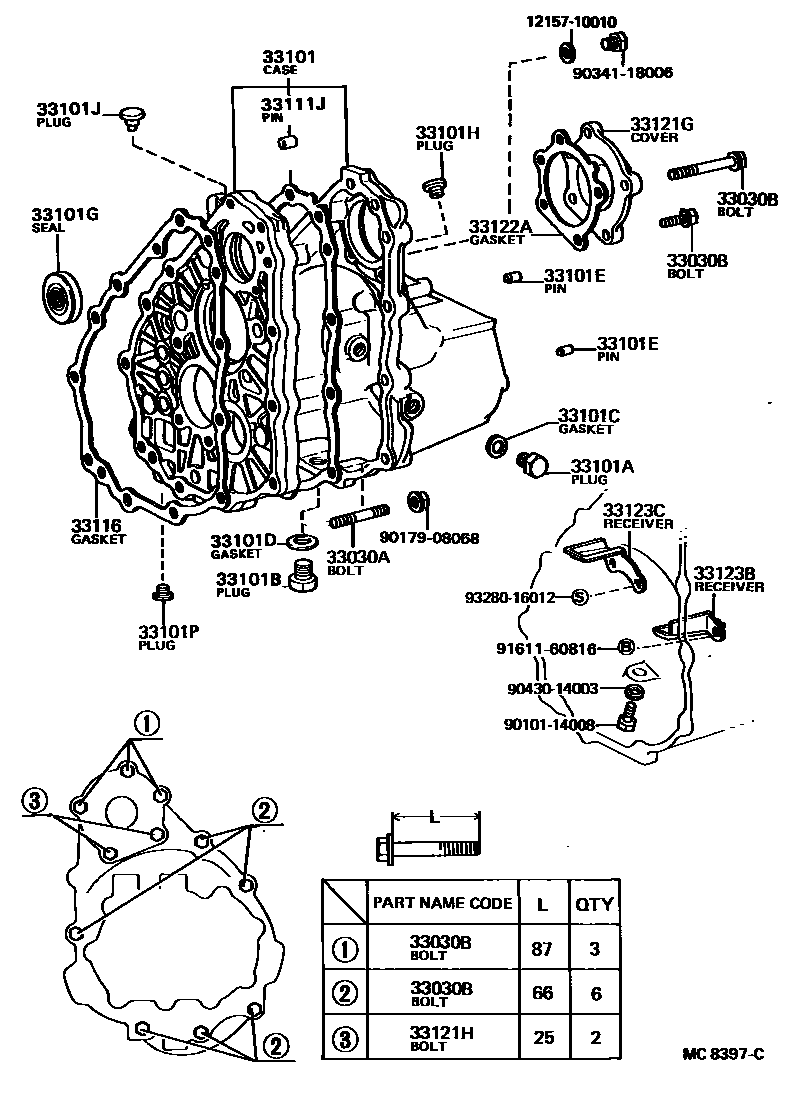

Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302
Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31283 | Clutch release bearing hub retaining ring | 31283-16010 |
| 33030A | Stud bolts (for securing transaxle housing and gearbox) | 90116-08101 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08020 · 90105-08022 |
| 33101 | Manual transmission housing sub-assembly | 33101-16020 · 33101-16030 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18057 |
| 33101C | Gasket (for manual transmission filler plug) | 12157-10010 |
| 33101D | Gasket (for manual transmission drain plug) | 12157-10010 |
| 33101E | Direct sales (for gearbox) | 90250-08030 |
| 33101G | Oil seal (for front input shaft) | 90311-26001 |
| 33101H | Screw plug (for idler housing) | 90341-10065 |
| 33101J | vent plug | 90930-03001 |
| 33101P | Straight thread plug (for interlocking pin) | 90341-10065 |
| 33111J | Direct sales (for manual transmission) | 90250-10232 |
| 33116 | manual transmission gasket | 33116-16010 |
| 33118 | Right reinforcement plate (MTM) | 33118-16010 |
| 33119 | Left reinforcement plate (MTM) | 33119-16030 |
| 33121G | manual gearbox cover | 33121-16010 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08168 |
| 33122A | Manual transmission cover gasket | 33122-16010 |
| 33123B | No. 1 transmission case cover oil collection tank (MTM) | 33123-16010 |
| 33123C | No. 2 transmission case cover oil collection tank (MTM) | 33123-16020 |
