Toyota COROLLA 离合器和分离叉 — Figure 3101

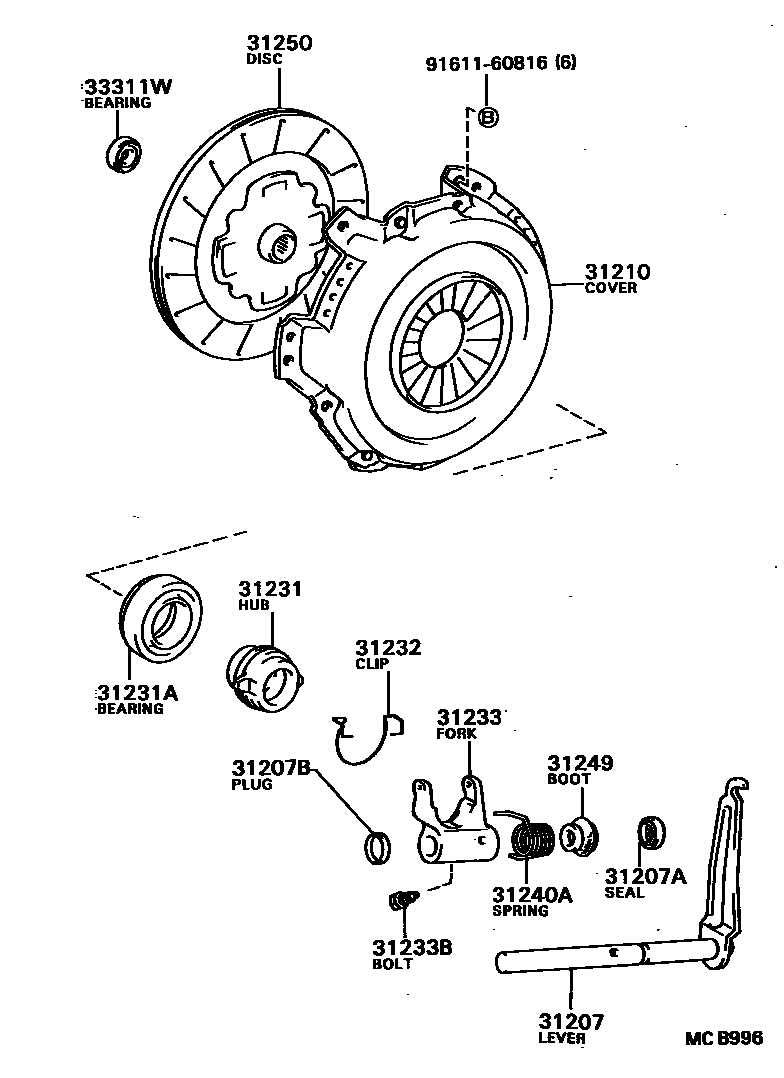

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31207 | Clutch release fork rod sub-assembly | 31207-16030 |
| 31207A | Oil seal (for clutch release fork lever) | 90313-18001 |
| 31207B | Screw plug (for clutch release fork rod) | 96411-12500 |
| 31210 | Clutch cover assembly | 31210-16030 · 31210-16031 |
| 31231 | Clutch release bearing hub | 31231-16030 |
| 31231A | Ball bearing (for clutch release hub) | 90363-40022 |
| 31232 | Release bearing hub clip or spring | 31232-16020 |
| 31233 | clutch release fork | 31233-16011 |
| 31233B | Bolts (for securing the release fork and release lever) | 90109-10026 · 90109-10079 |
| 31240A | Tension spring (for clutch release fork return) | 90508-32004 |
| 31249 | Clutch release fork shaft dust boot | 31249-16010 |
| 31250 | Clutch disc assembly | 31250-16012 · 31250-16013 |
| 33311W | Bearings (for input shaft) | 90363-12003 |
