Toyota COROLLA 废气再循环系统 — Figure 2501

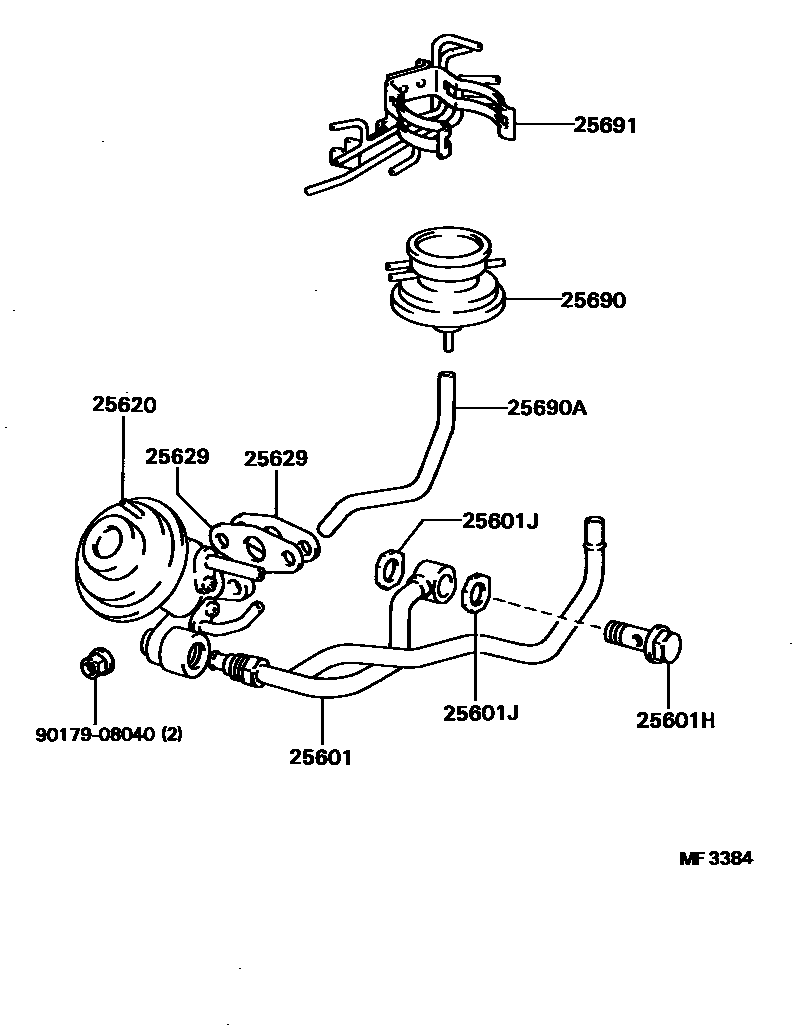

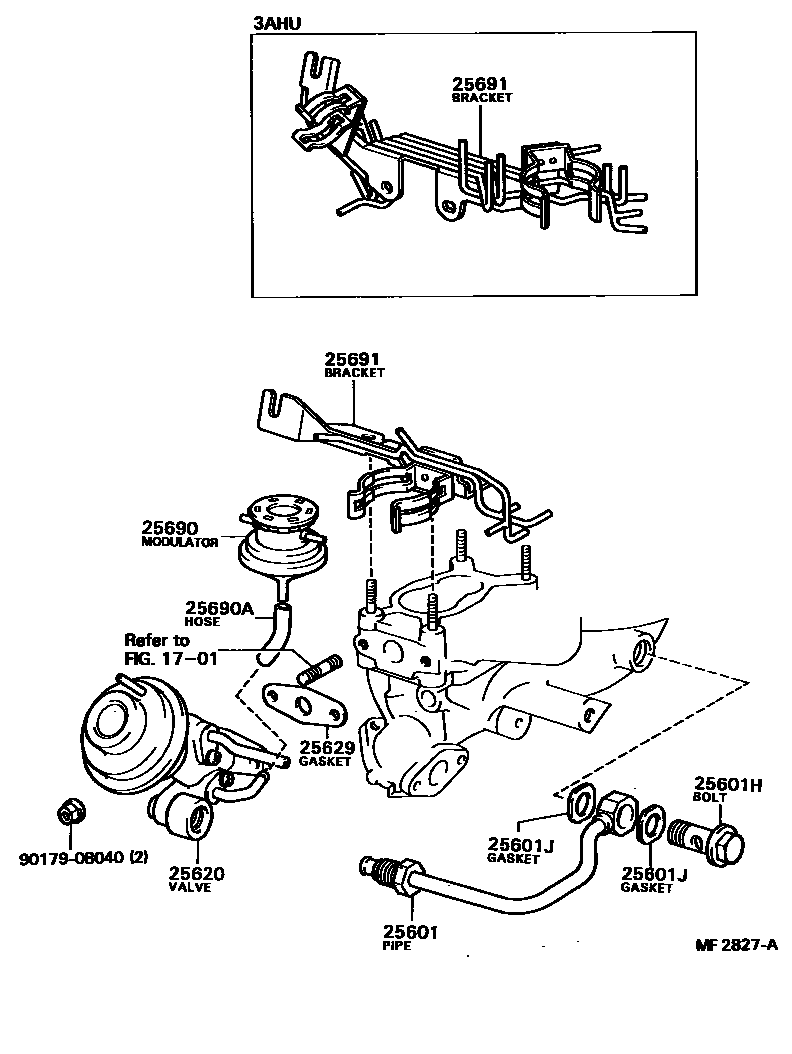

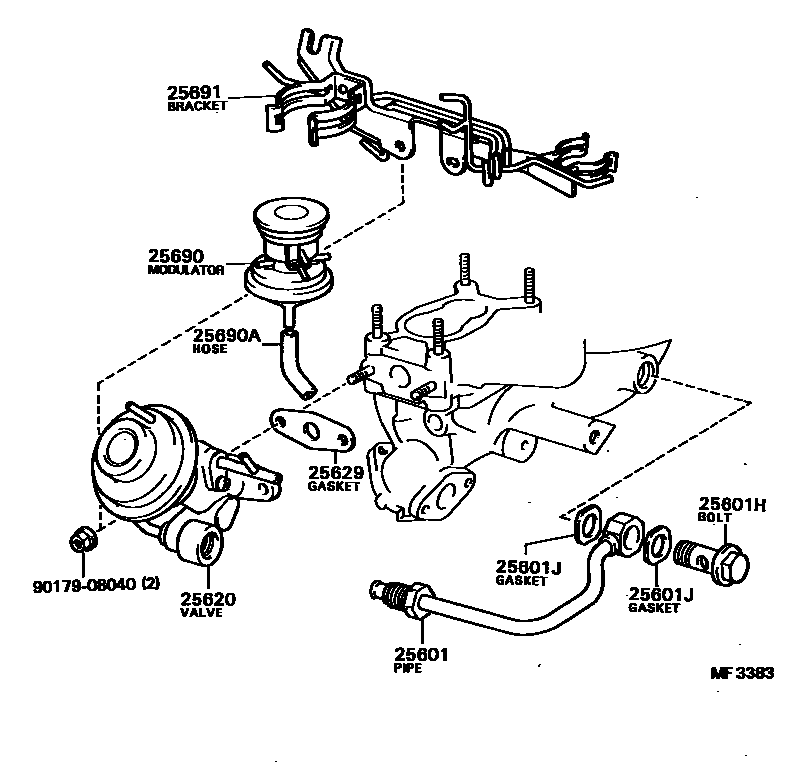

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-15020 · 25601-15040 |
| 25601H | Joint bolt (for No. 1 EGR tube) | 90401-20003 |
| 25601J | Gasket (for No. 1 EGR tube) | 90430-20005 |
| 25620 | EGR valve assembly | 25620-15170 · 25620-15180 · 25620-15190 · 25620-15270 |
| 25629 | EGR valve adapter gasket | 25629-15011 |
| 25690 | EGR vacuum regulator assembly | 25870-15100 · 25870-15160 · 25870-15170 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-15010 · 90445-11041 |
| 25691 | EGR vacuum regulator bracket | 25691-15080 · 25691-15090 · 25691-15091 · 25691-15160 · 25691-15170 |
