Toyota COROLLA 化油器 — Figure 2103

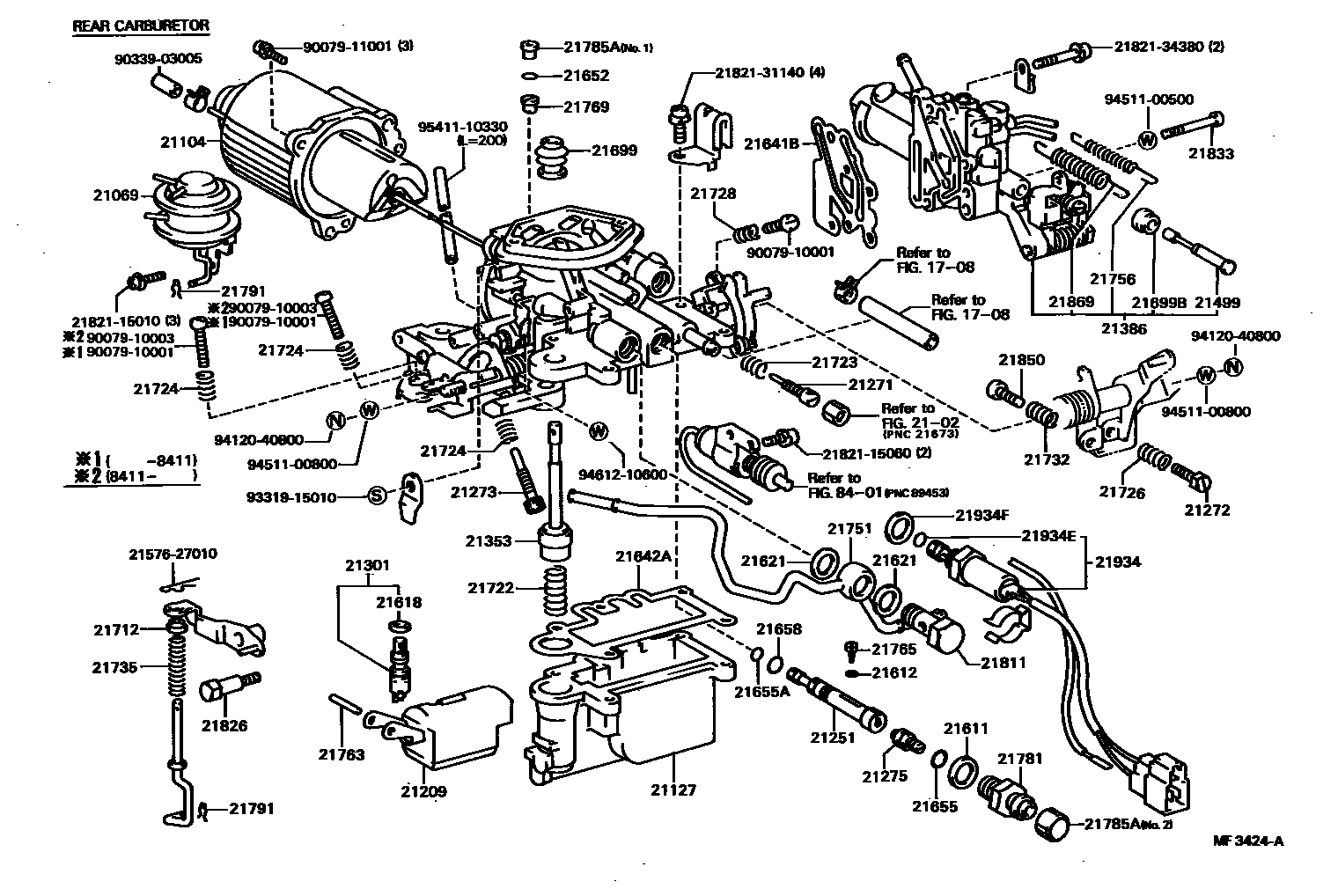

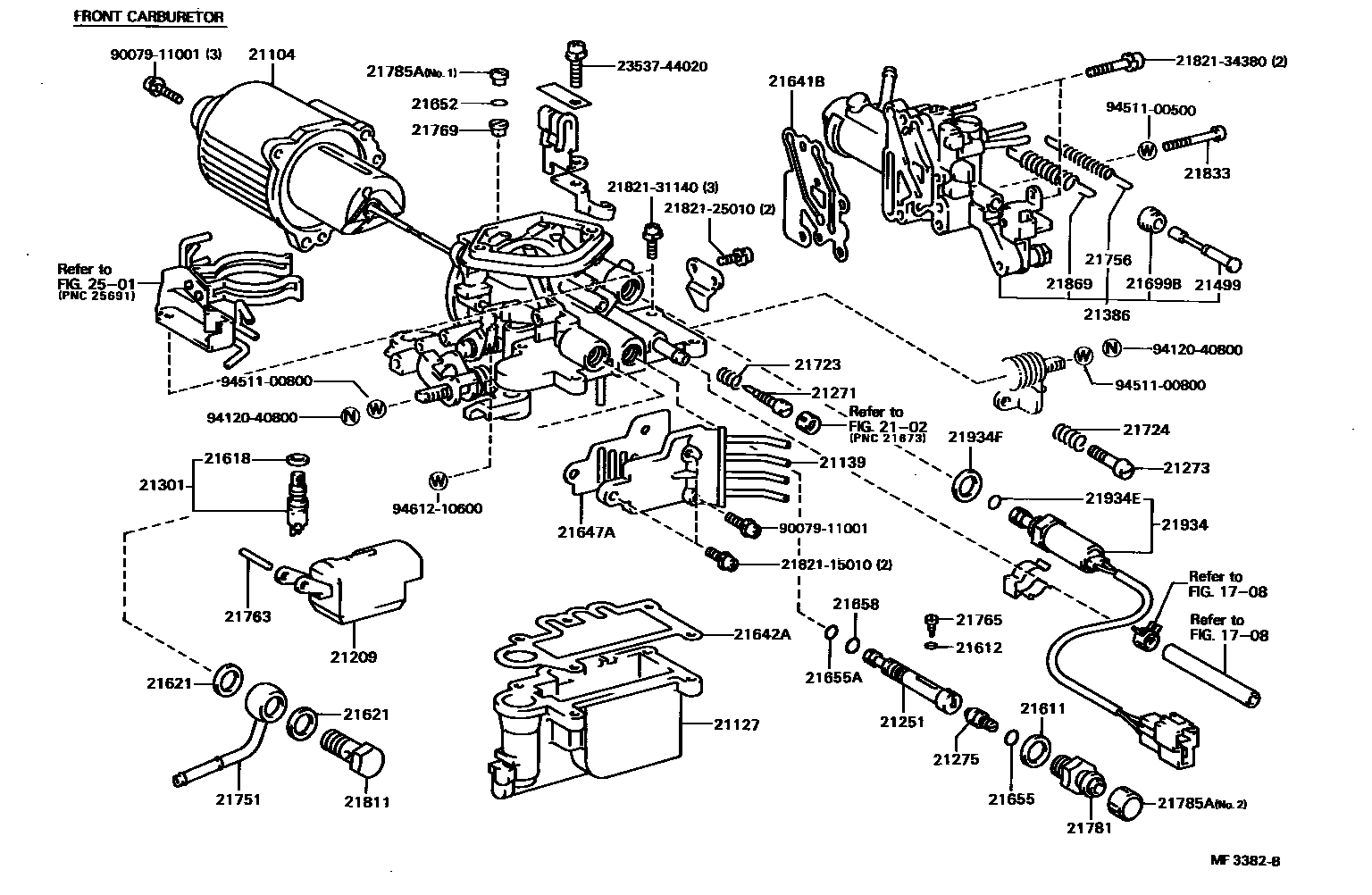

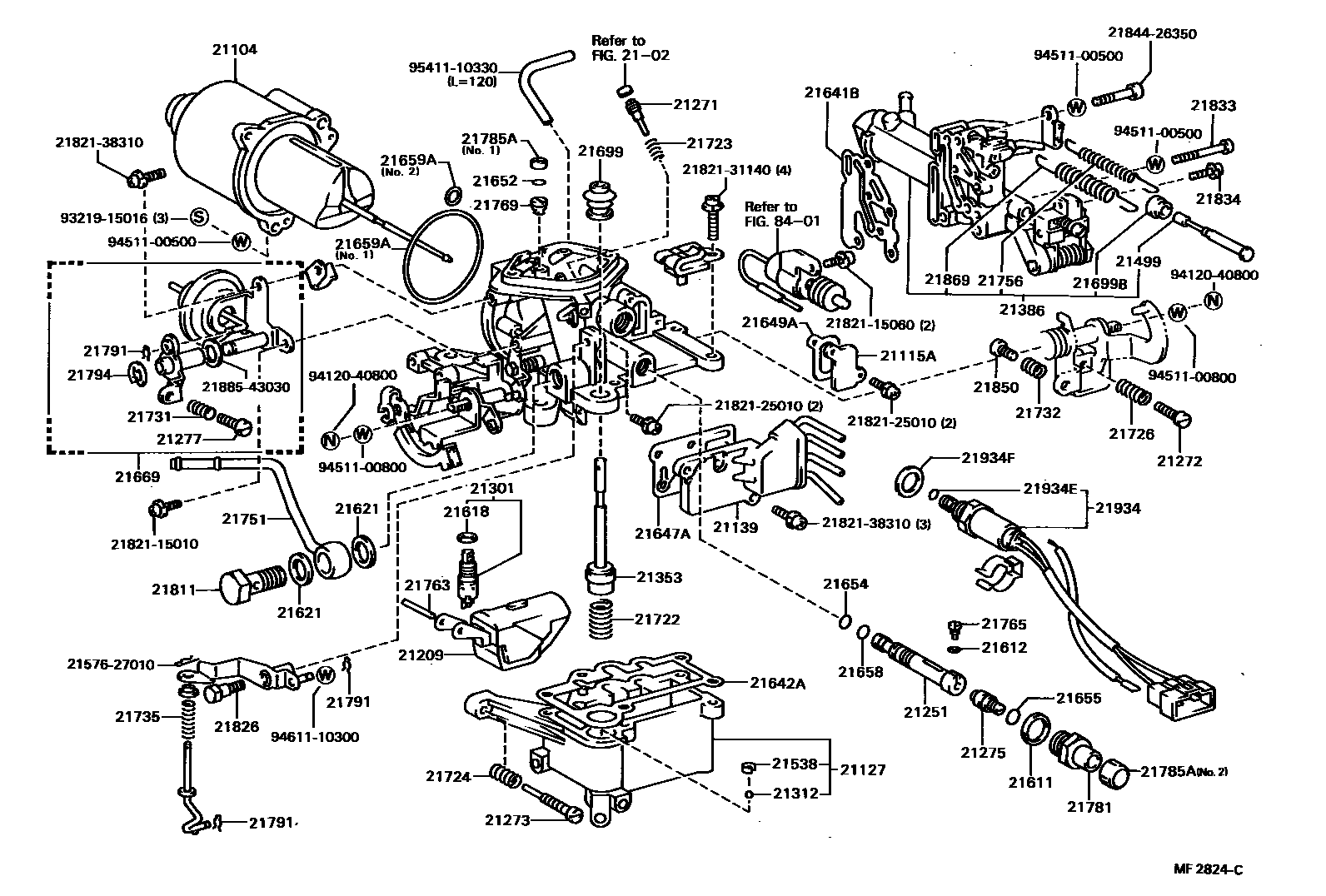

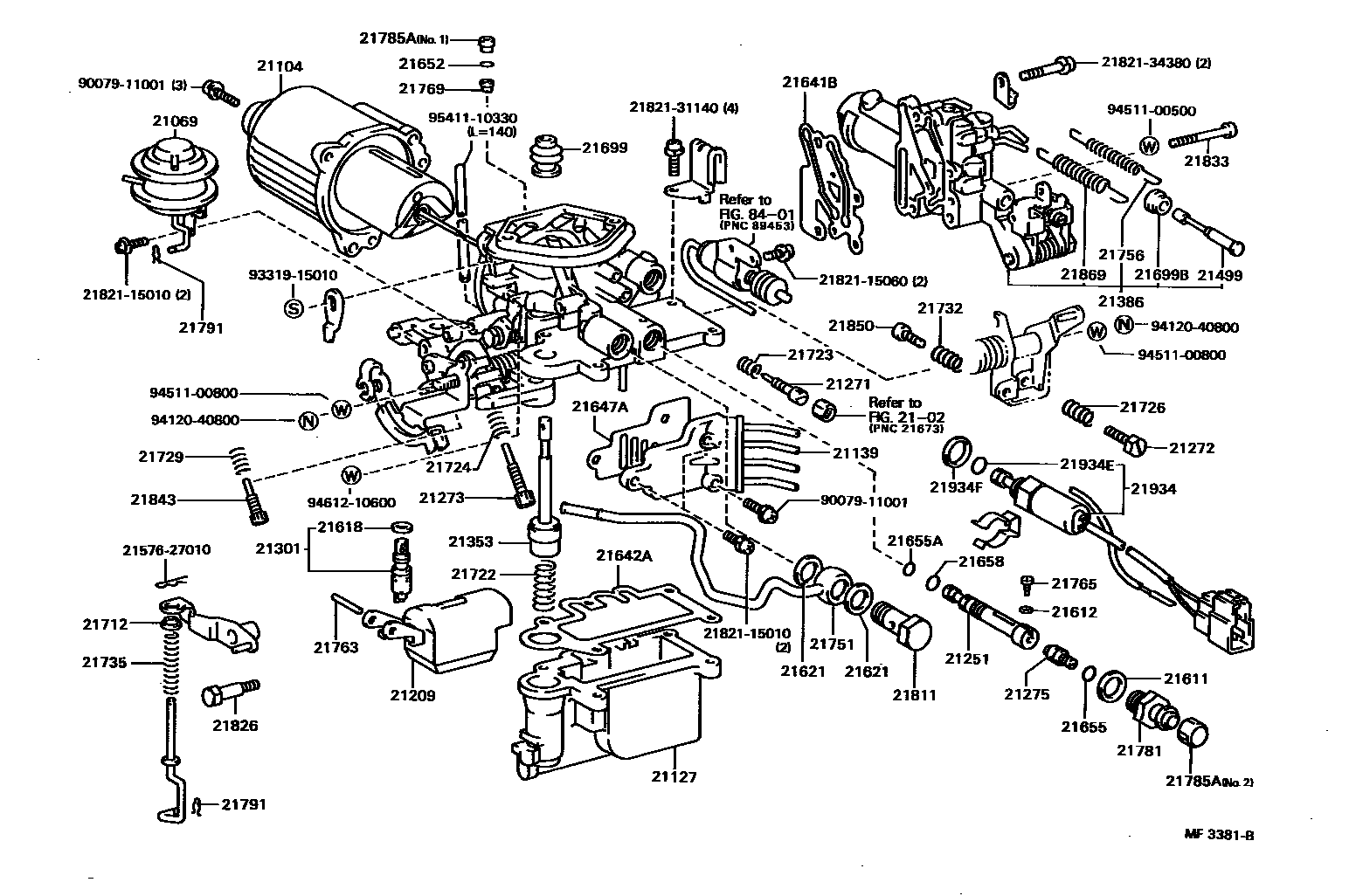

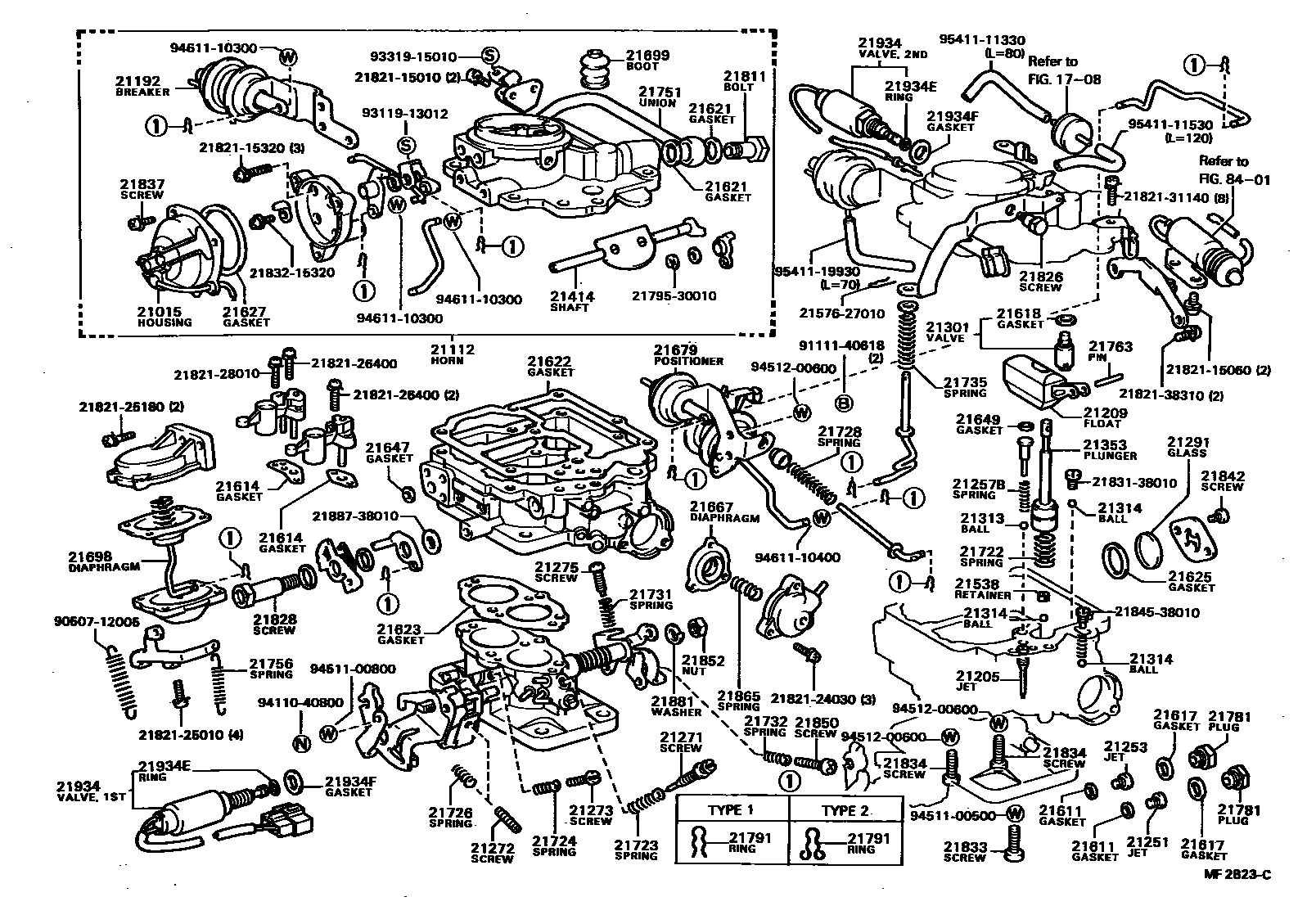

Toyota COROLLA EPC diagram 2103, 化油器, with 5 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-15230 |
| 21069 | Deceleration buffer sub-assembly | 21679-15370 · 21679-15400 |
| 21104 | Suction chamber sub-assembly | 21014-15251 · 21014-15370 · 21014-15371 · 21014-15390 · 21014-15391 · 21014-15400 · 21014-15401 |
| 21112 | Air intake bell mouth | 21112-15270 · 21112-15271 |
| 21115A | carburetor body cover | 21115-15250 |
| 21127 | float room | 21127-11090 · 21127-15250 · 21127-15370 · 21127-15390 |
| 21139 | Adapter (for carburetor connecting pipe) | 21139-11090 · 21139-15250 |
| 21192 | breaker | 21192-15020 |
| 21205 | Idle speed measuring hole assembly | 21205-15010 |
| 21209 | Float sub-assembly | 21209-11090 · 21209-15020 · 21209-15250 |
| 21251 | first main measuring hole | 21251-11090 · 21251-15251 · 21251-15460 · 21251-15461 · 90999-41103 |
| 21253 | Deputy main measuring hole | 90999-42156 |
| 21257B | Spring (for accelerating the nozzle) | 21864-38010 |
| 21271 | Idle speed adjustment screw | 21271-15230 · 21271-15250 · 21271-15251 · 21271-15370 · 21271-15390 · 21271-25201 |
| 21272 | First gear idle speed adjustment screw | 21273-40122 · 21828-25180 |
| 21273 | Throttle adjustment screw | 21273-11090 · 21273-15250 · 21273-50010 · 21844-33010 |
| 21275 | Adjustment screw | 21275-11090 · 21275-15250 · 21275-15460 · 21844-26030 |
| 21277 | Low idle speed adjustment screw | 21844-33010 |
| 21291 | oil level gauge glass | 21291-34320 |
| 21301 | Needle valve sub-assembly | 21301-15020 · 21301-15250 |
| 21312 | steel ball | 21314-11020 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 |
| 21353 | pump plunger | 21353-15250 · 21353-15400 · 21353-33010 · 21353-44101 |
| 21386 | compensator | 21386-15250 · 21386-15251 · 21386-15370 · 21386-15390 · 21386-15400 |
| 21414 | choke shaft | 21054-15230 · 21054-15320 |
| 21499 | push rod (for carburetor) | 21499-15250 · 21499-15370 · 21499-15390 |
| 21538 | One way ball fixing | 21538-31010 |
| 21611 | Main gage hole gasket | 21611-15250 · 21611-22010 |
| 21612 | Enrichment valve gasket | 21612-15250 |
| 21614 | Venturi gasket | 21614-33010 · 21614-33080 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-26510 |
| 21623 | Body hem pads | 21623-15230 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28090 |
| 21641B | compensator pad | 21641-11090 · 21641-15250 · 21641-15251 · 21641-15390 |
| 21642A | float chamber liner | 21642-11090 · 21642-15250 · 21642-15390 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21647A | Joint gasket | 21647-11090 · 21647-15250 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21649A | Carburetor body cover gasket | 21649-15250 |
| 21652 | O-ring (for suction chamber adjustment) | 21652-15250 |
| 21654 | O-ring (for main gauge hole adjustment screw) | 21655-15250 |
| 21655 | O-ring (for tappet) | 21655-60010 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-15250 |
| 21658 | O-ring (for main pipe) | 21658-15250 |
| 21659A | O-ring (for suction chamber) | 21653-15250 · 21659-15250 |
| 21667 | Diaphragm | 21667-38310 |
| 21669 | Diaphragm | 21669-15250 |
| 21679 | locator | 21679-15270 · 21679-15271 |
| 21698 | Diaphragm | 21669-15230 |
| 21699 | Dust boot (for pump plunger) | 21699-28150 |
| 21699B | Dust boot (for compensator) | 21699-11090 · 21699-15250 |
| 21712 | Sliding connecting rod bushing | 21712-38010 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-15250 · 21723-21030 · 21724-51011 |
| 21724 | Throttle valve adjustment spring | 21723-11041 · 21723-21030 · 21723-38010 |
| 21726 | First gear idle speed adjustment spring | 21723-15260 · 21723-21030 · 21726-15251 |
| 21728 | Throttle return spring | 21739-15400 · 21756-25181 |
| 21729 | First throttle return spring | 21723-21030 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 |
| 21732 | Throttle valve adjustment spring | 21723-21030 · 21723-60010 |
| 21735 | Pump rod spring | 21735-15250 · 21735-15270 |
| 21751 | Oil pipe joint | 21894-15011 · 21894-15081 · 21894-15251 · 21894-15370 · 21894-15371 · 21894-15390 · 21894-15400 |
| 21756 | Return spring (for throttle shaft) | 21756-15010 · 21756-15080 · 21756-15250 |
| 21763 | floating lever pin | 21763-26350 · 21763-38010 |
| 21765 | Pin (for pump plunger) | 21765-15250 |
| 21769 | Pin (for suction chamber adjustment) | 21769-15250 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-11090 · 21781-15230 · 21781-15460 |
| 21785A | Plate screw plug (for suction chamber adjustment) | 21672-15250 · 21785-11090 · 21785-15250 · 21786-15250 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-60010 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40010 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21826 | Pump rod fixing screw | 21826-24470 · 21826-31012 |
| 21828 | First gear idle speed fixing screw | 21845-15230 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-31012 · 21833-33010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21821-25180 · 21844-26400 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21843 | Screw or pin (for deceleration bumper or positioner rod) | 21273-60151 |
| 21850 | Throttle switch adjustment screw | 21276-11090 · 21276-15250 · 21844-15230 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21865 | spring | 21865-15230 |
| 21869 | Spring (for main measuring hole) | 21869-15250 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-15230 · 21062-15250 · 21062-15370 · 21062-15390 · 21062-15400 · 21072-15230 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 · 21656-15250 |
| 21934F | padding | 21633-15250 · 21649-38010 |
