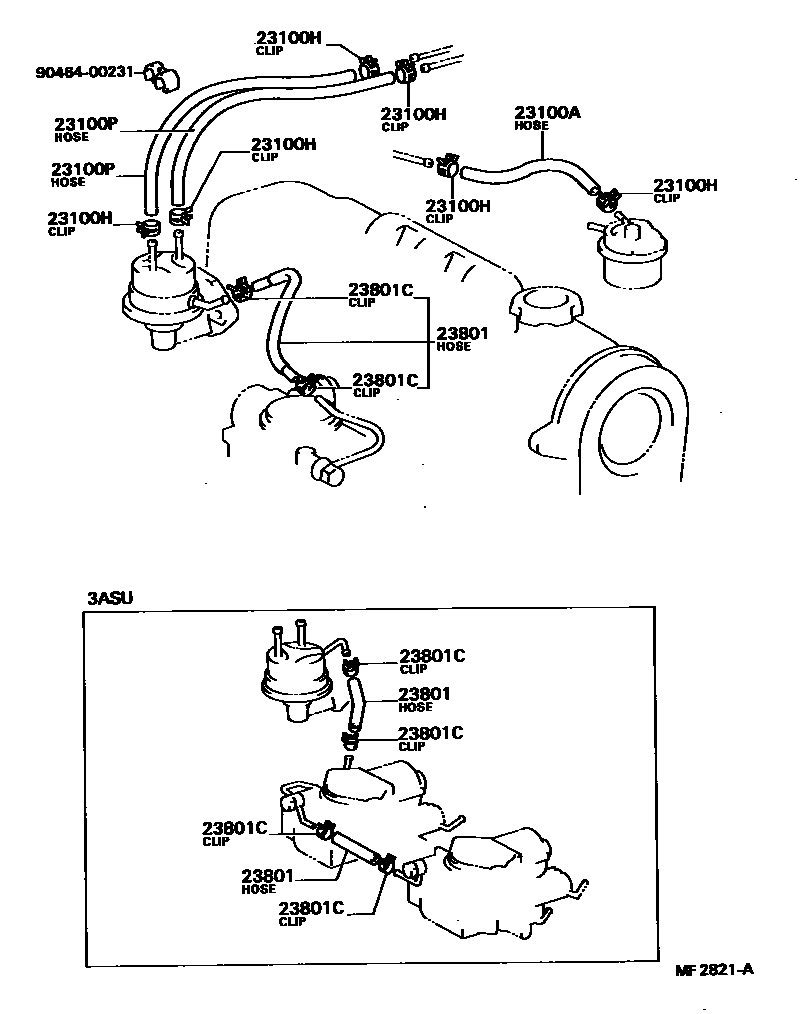

Toyota COROLLA 燃油管和卡箍 — Figure 2101
Toyota COROLLA EPC diagram 2101, 燃油管和卡箍, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100A | fuel hose | 95332-06020 |
| 23100H | Clamp (for fuel hose) | 96132-30400 · 96132-30600 |
| 23100P | Hose (for fuel pump to fuel line) | 95332-04040 · 95332-06040 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23271-15010 · 23271-15030 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
