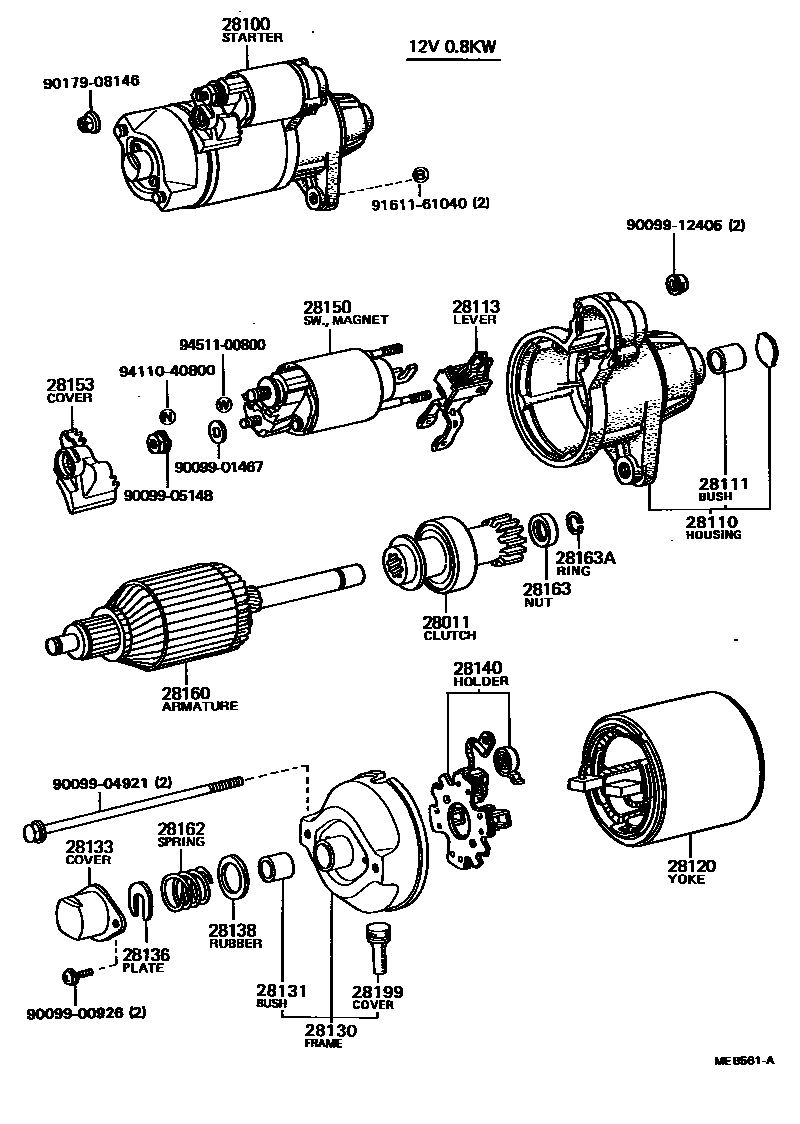

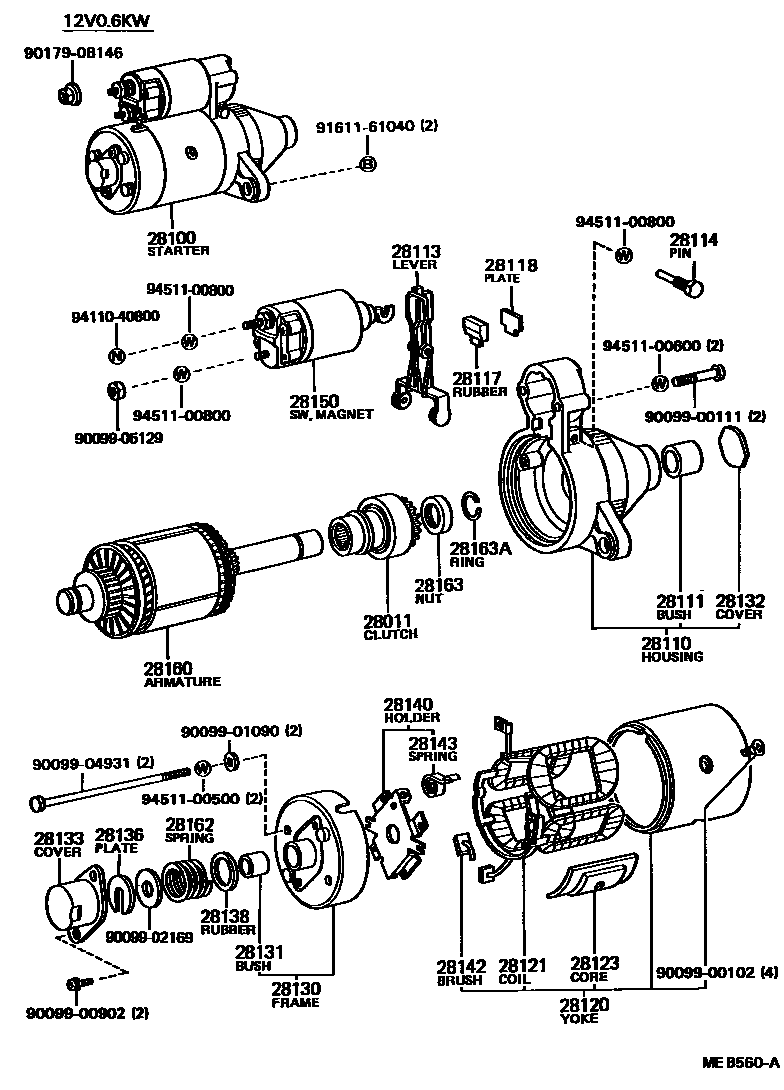

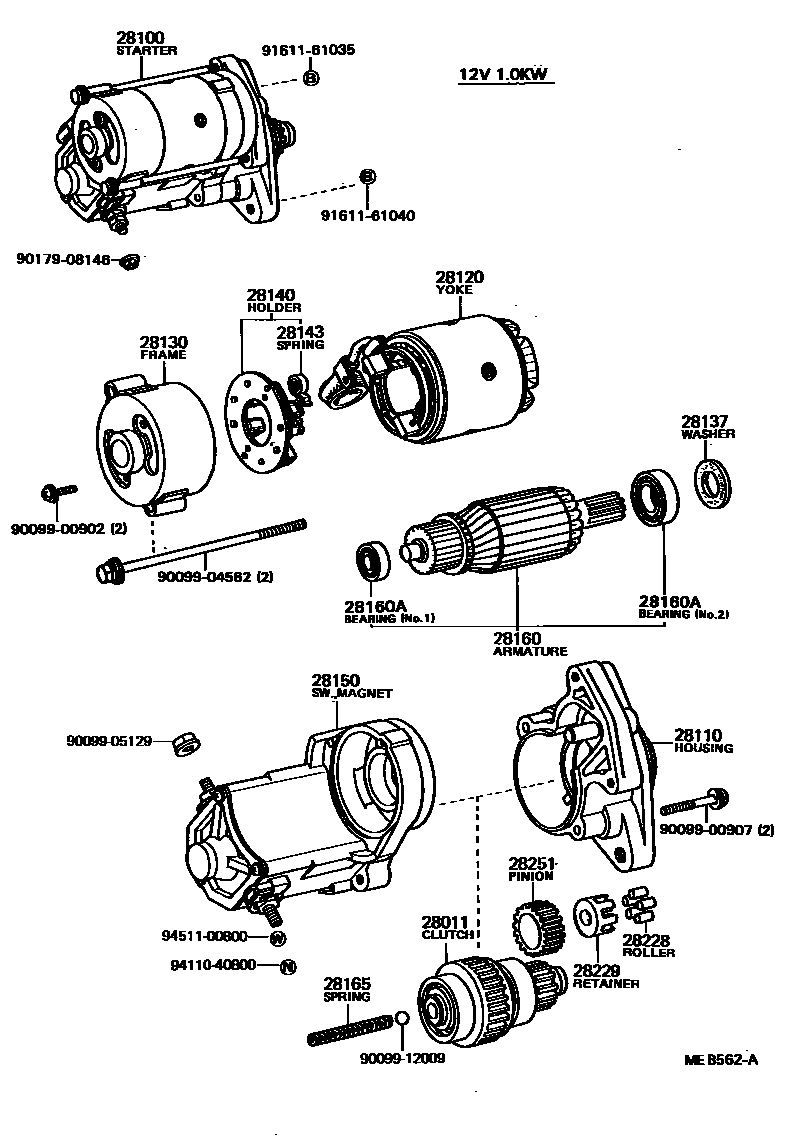

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-15010 · 28011-22020 · 28011-26042 |
| 28100 | Starter assembly | 28100-15011 · 28100-15020 · 28100-15050 |
| 28110 | Starter drive end housing assembly | 28110-15011 · 28110-15020 · 28110-15050 |
| 28111 | Bushing (for starter housing) | 28111-51011 |
| 28113 | starter pinion drive rod | 28113-15011 · 28113-41011 |
| 28114 | starter drive lever | 28114-25010 |
| 28117 | Rubber sheet (for starter yoke) | 28117-41013 |
| 28118 | Plate (for starter yoke) | 28118-41013 |
| 28120 | Starter yoke assembly | 28120-15010 · 28120-22011 · 28120-26070 |
| 28121 | starter excitation coil | 28121-22011 |
| 28123 | Starter pole core | 28123-10011 |
| 28130 | Starter commutator end frame assembly | 28130-15010 · 28130-15020 · 28130-21011 |
| 28131 | Commutator end frame bushing | 28131-20010 · 90099-10039 · 90099-10040 · 90099-10134 |
| 28132 | Starter bearing cap (for drive end housing) | 28166-24030 |
| 28133 | Bearing caps (for end frame caps) | 28132-15010 · 28132-41011 |
| 28136 | starter lock plate | 28136-15010 · 28136-41011 |
| 28137 | Starter felt pad gasket | 90099-02323 |
| 28138 | Rubber sheet (for starter bearing cap) | 28138-15010 · 28138-41011 |
| 28140 | Starter brush holder assembly | 28140-15010 · 28140-22011 · 28140-26070 |
| 28142 | starter brush | 28142-10011 |
| 28143 | starter brush spring | 28143-40040 · 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-15012 · 28150-15020 · 28150-22011 · 28150-37010 |
| 28153 | Electromagnetic switch cover | 28159-15010 |
| 28160 | Starter armature assembly | 28160-15010 · 28160-22011 · 28160-26070 |
| 28160A | starter armature bearing | 28253-45020 · 90099-10113 |
| 28162 | starter brake spring | 28162-15010 · 28162-41011 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 |
| 28163A | Snap ring (for starter pinion stop nut) | 90099-07047 |
| 28165 | Starter solenoid switch return spring | 28165-26040 |
| 28199 | starter cover | 28199-77090 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-26040 |
| 28251 | Starter drive pinion | 28254-45020 |
