Toyota COROLLA Alternator — Figure 1903

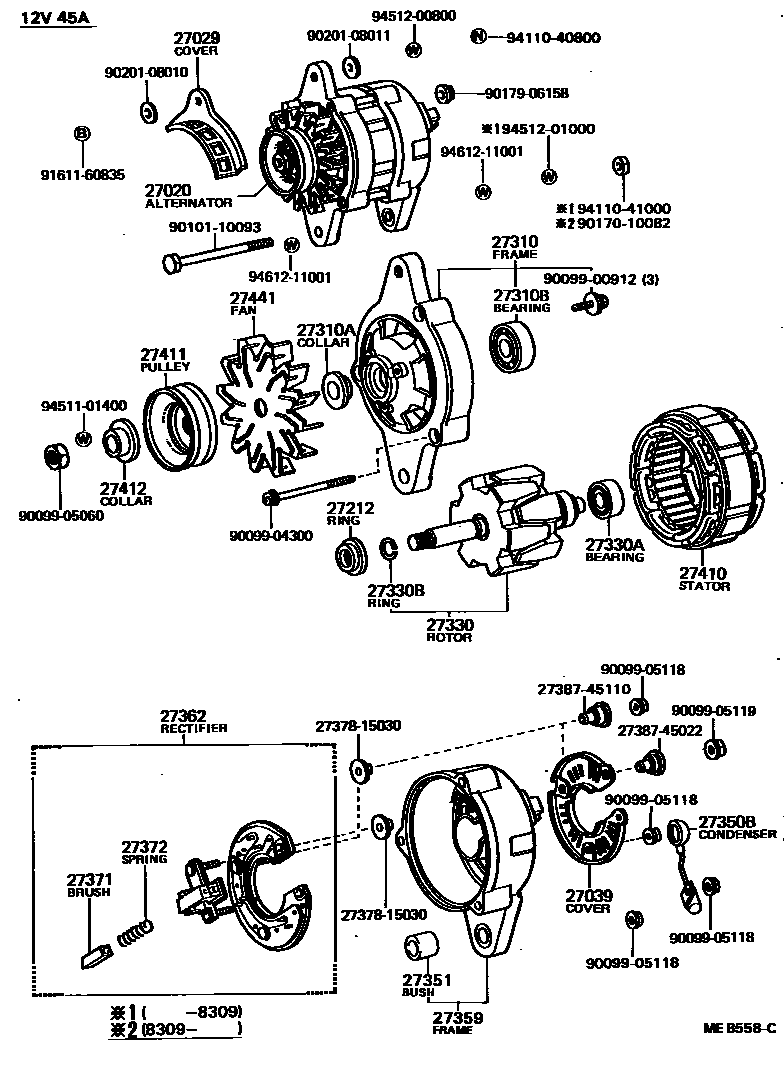

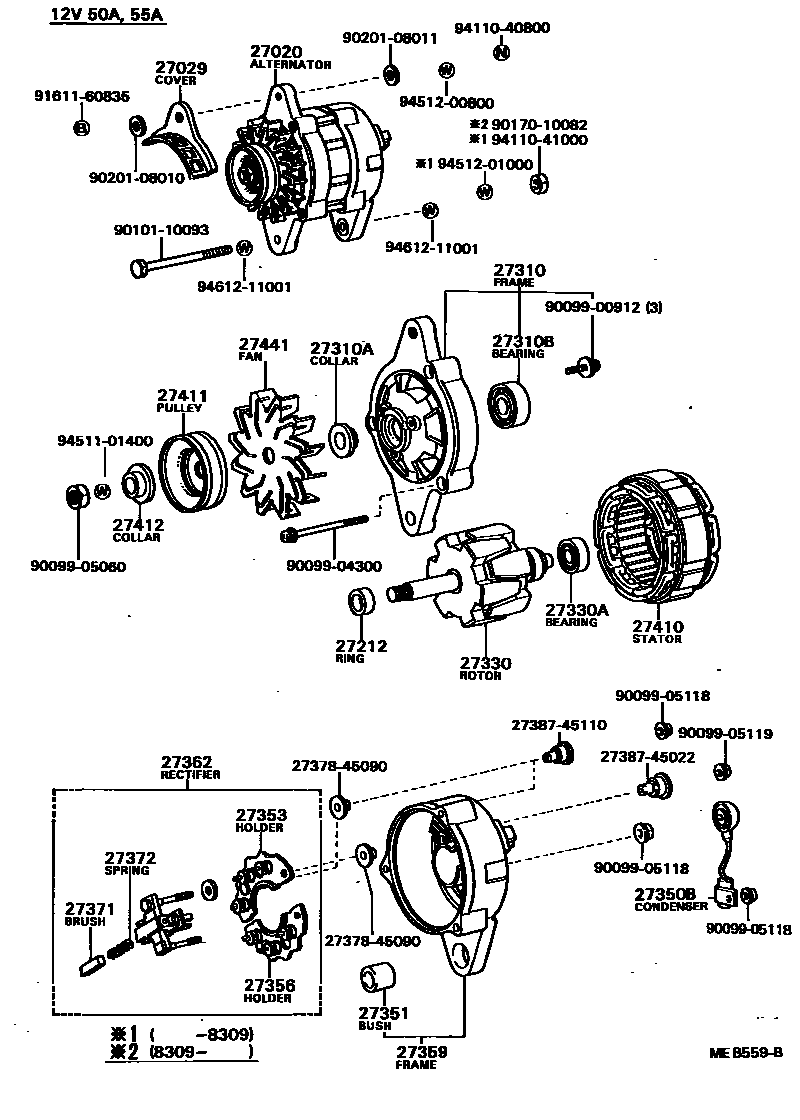

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-15022 · 27020-15100 · 27020-15140 |
| 27029 | generator cover | 27029-15012 |
| 27039 | Alternator Rear End Cover | 27039-18011 |
| 27212 | Spacer ring (for generator rotor) | 27212-39050 · 27412-45070 |
| 27310 | Alternator Drive End Frame Assembly | 27310-15030 · 27310-61023 |
| 27310A | Collar or nut (for generator drive end cover) | 27412-31040 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10126 |
| 27330 | Alternator Rotor Assembly | 27330-45020 · 27330-45070 · 27330-63010 |
| 27330A | Bearings (for generator rotor) | 90099-10111 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 |
| 27350B | generator capacitor | 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 |
| 27353 | Generator positive rectifier frame | 27353-34021 · 27353-34051 |
| 27356 | Generator negative rectifier frame | 27356-34021 · 27356-34051 |
| 27359 | Generator rectifier end frame | 27359-15021 · 27359-15030 |
| 27362 | Rectifier assembly with brushes | 27362-15021 · 27362-18011 · 27362-34021 |
| 27371 | Generator brushes | 27371-31011 |
| 27372 | Generator brush spring | 27372-31011 |
| 27410 | Generator stator assembly | 27410-38120 · 27410-41080 · 27410-43040 |
| 27411 | Alternator Pulley | 27411-26111 |
| 27412 | Isolator collar (for generator pulley) | 27412-44030 |
| 27441 | generator fan | 27441-34030 |
